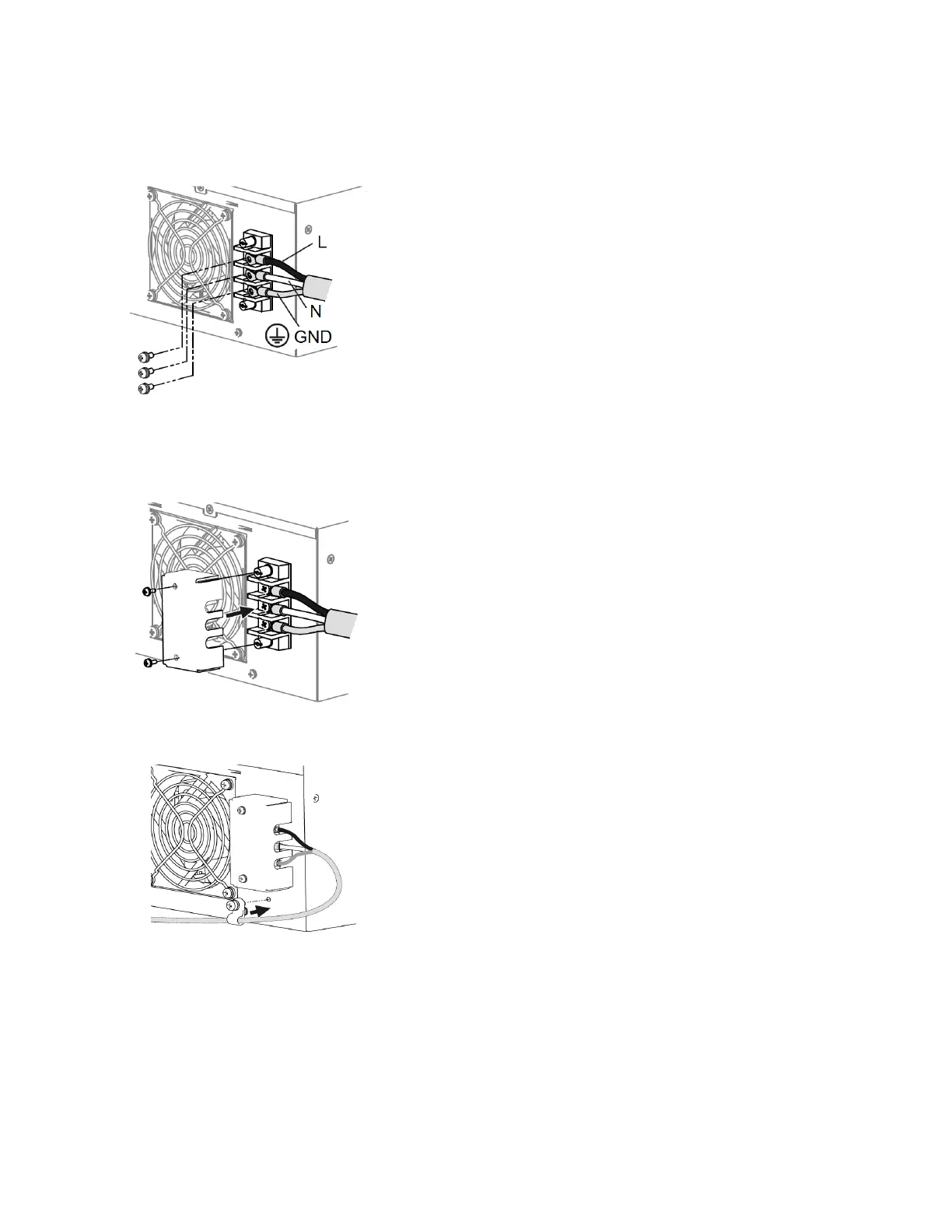

4. Securely connect the power cord to match the L (line), N (neutral), and GND (ground) of the AC
Input terminal block. The protective earth terminal (ground) requires an extra length of wire compared
to the Line and Neutral wires. Always connect the ground wire first.
5. Install the terminal cover over the terminal block.
AC6802B
Place the cord inside the cable clamp and attache the clamp as shown:
1îîGetting Started
30 Keysight AC6800B Series Operating and Service Guide
