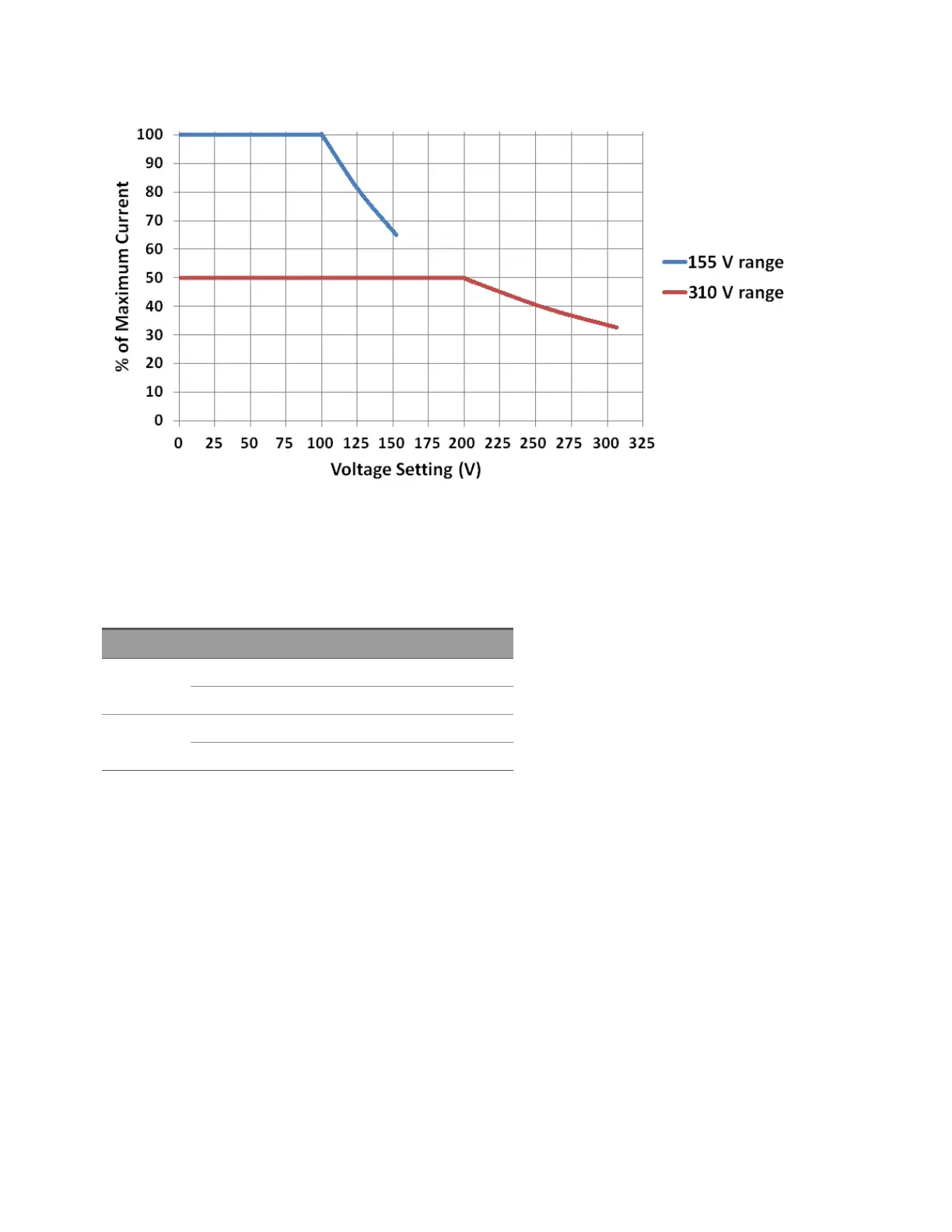

The following chart shows the maximum current output by voltage.
Upper and lower voltage limits
The voltage limit ranges are shown below. Set the limits so that the upper limit is greater than or
equal to the lower limit.
Output mode Voltage Range Lower Limit Upper Limit
AC Mode 155 V 0.0 to 157.5 V 0.0 to 315.0 V
310 V 0.0 to 315.0 V 0.0 to 315.0 V
DC mode 155 V -445.0 to 222.5 V -222.5 to 445.5 V
310 V -445.0 to +445.0 V -445.0 to +445.0 V
1îîGetting Started
58 Keysight AC6800B Series Operating and Service Guide
