Installation
Mounting Connectors

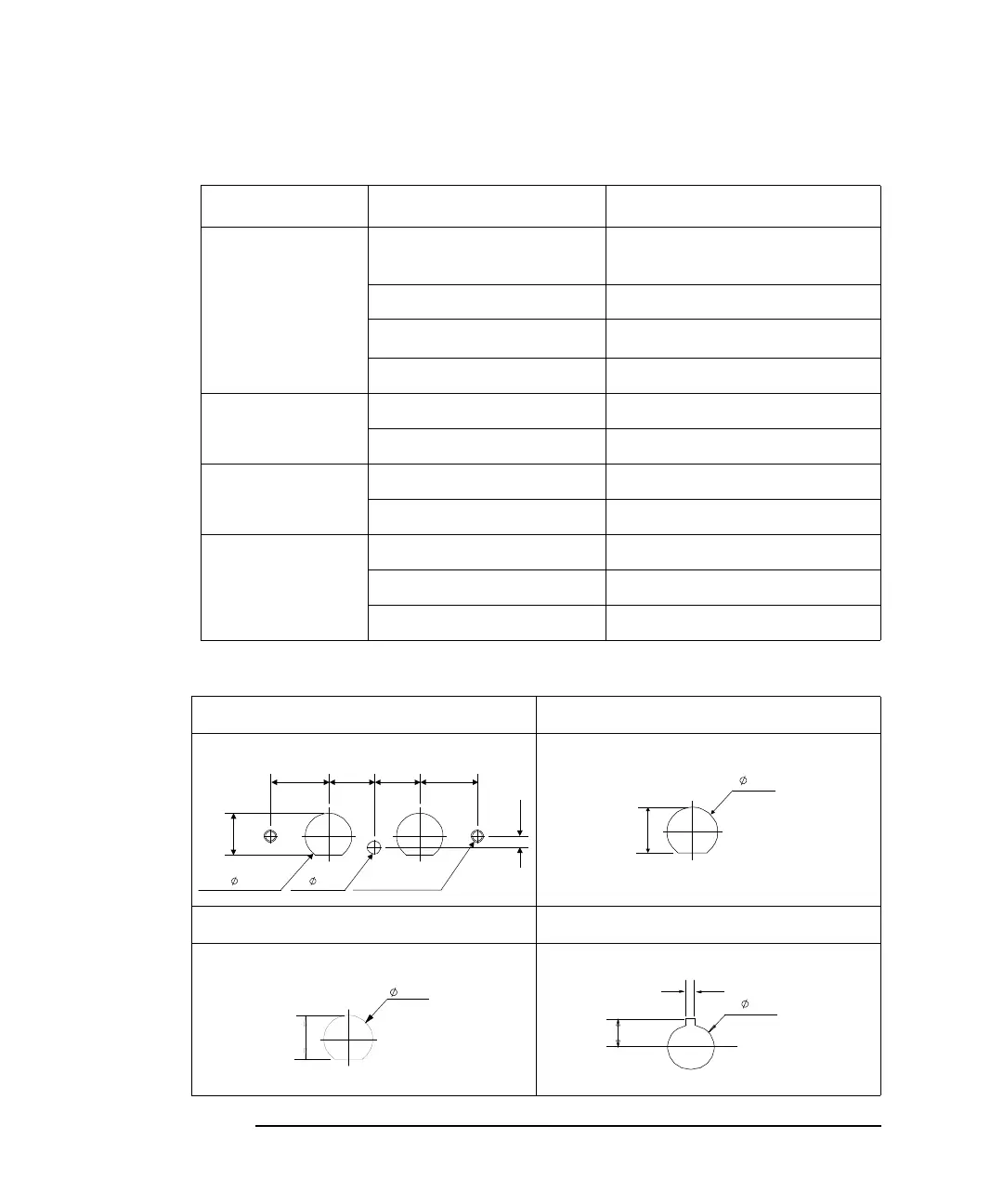

Table 3-5 Recommended Parts
Table 3-6 Dimensions of Connector Holes
Usage Keysight Part No. Description
Making an
interlock circuit
1252-1419 Interlock Connector (6 pin,
female)
N1254A-402 or 3101-3241 Switch
1450-0641 LED (V
F
2.1 V @ I
F
= 10 mA)
8150-5680 Wire (24 AWG, 600 V, 150 C)
Connecting GNDU
to DUT
1250-2457 Triaxial Connector (female)
8121-1189 or 8150-2639 Coaxial Cable or Wire
Connecting SMU
to DUT
1250-2457 Triaxial Connector (female)
8121-1191 Low Noise Coaxial Cable
Connecting
MFCMU to DUT
1250-0118 BNC Connector (female)
8120-0367 Coaxial Cable (50 )
8150-0447 Wire
Kelvin Triaxial Connector (in mm) Triaxial Connector (in mm)
BNC Connector (in mm) Interlock Connector (in mm)
2 − 11.3 3.2 2 − M3 x 0.5
14 11 11 14
2.8
10.3
11.3
10.3
12.8
12.1
1.8
8.2
5.1
