Keysight B1500A User’s Guide, Ed ition 14 2- 17
Introduction
Measurement Modules
Measurement Modules
Keysight B1500A can be equipped with the following measurement modules.
• “GNDU - Ground Unit”
• “HPSMU - High Power SMU”
• “MPSMU - Medium Power SMU”
• “MCSMU - Medium Current SMU”
• “HRSMU - High Resolution SMU”
• “MFCMU - Multi Frequency CMU”
• “HVSPGU - High Voltage SPGU”
• “WGFMU - Waveform Generator/Fast Measurement Unit”
See Keysight EasyEXPERT User’s Guide for the functions available for Keysight
EasyEXPERT software. See Programming Guide for the functions available for the
GPIB remote mode. See Keysight B1530A User’s Guide for using the WGFMU.
GNDU - Ground Unit
Keysight B1500A is equipped with the ground unit (GNDU). The GNDU is a 0 V
constant voltage source, and used for the reference of measurement ground. Also the
GNDU can sink up to ± 4.2 A, so it is effective for using the HPSMU (high power
SMU). Figure 2-1 is a simplified circuit diagram of GNDU.

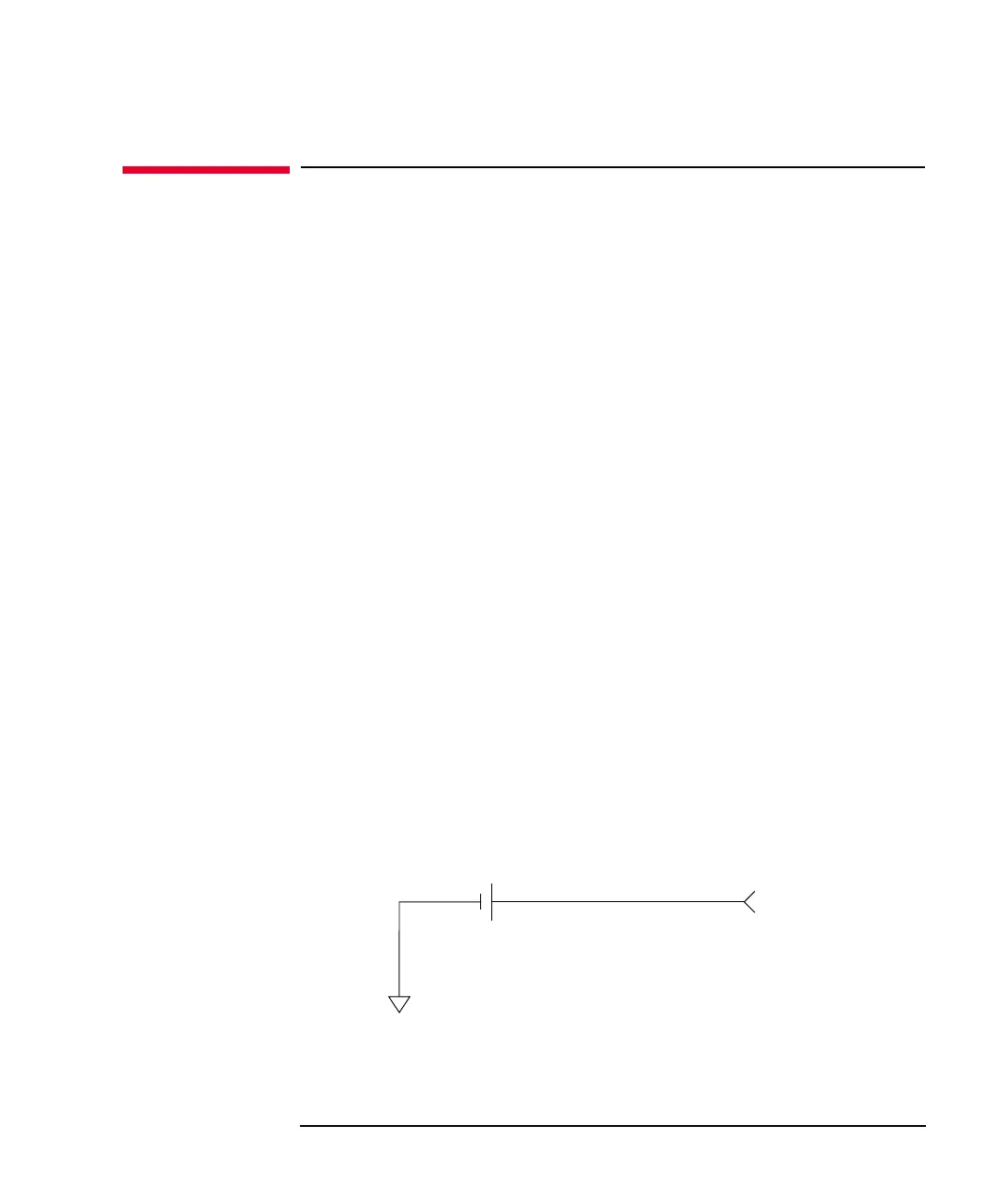

Figure 2-1 Simplified GNDU Circuit Diagram
