1- 12 Keysight B1500A User’s Guide, Edition 14
Getting Started
To Use Application Test Mode
To Use Application Test Mode
For the screen as shown in Figure 1-5, perform the following procedure.

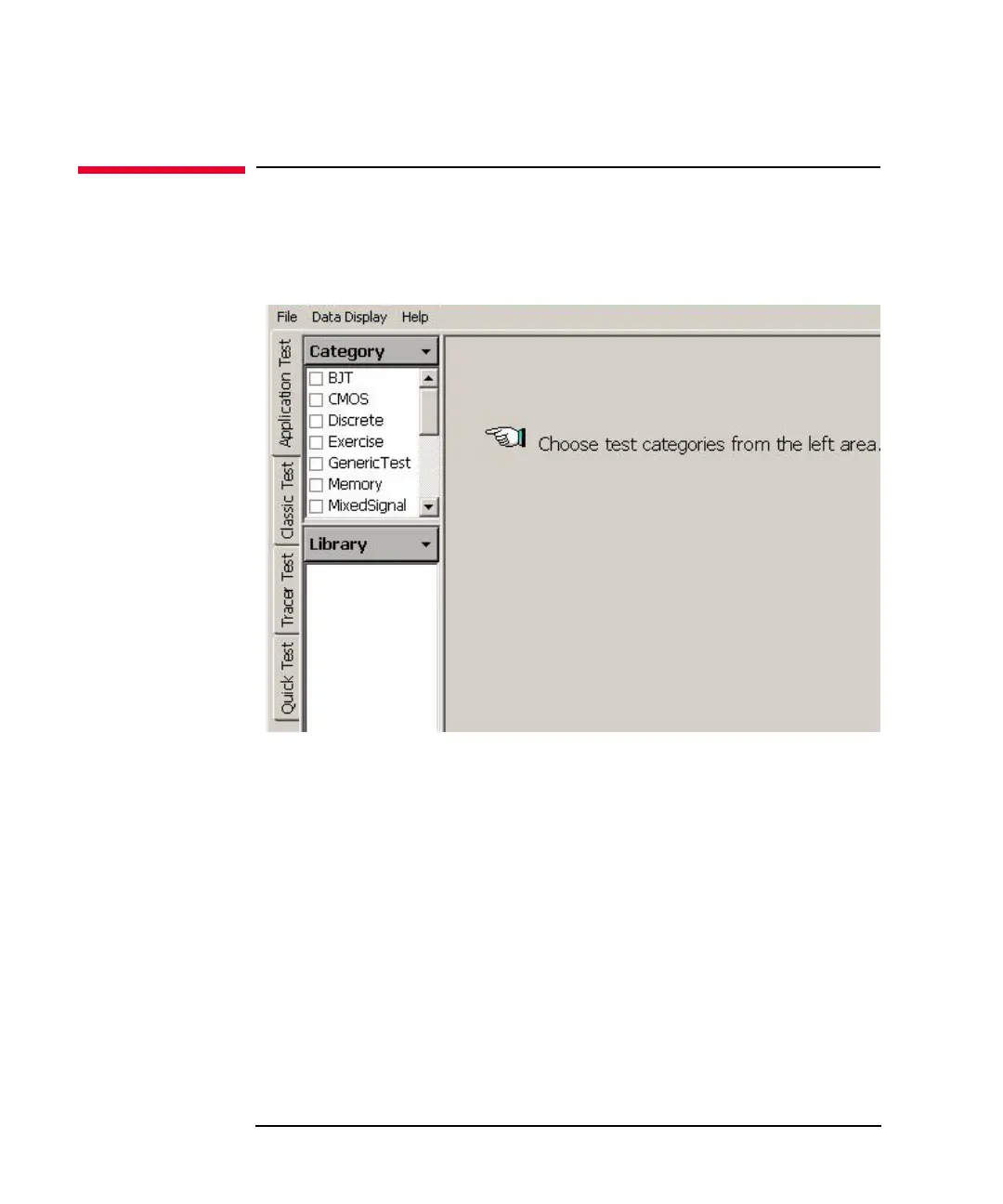

Figure 1-5 Display Example of EasyEXPERT Main Screen
1. Click the Application Test tab on the main screen. The tab is in the leftmost
column on the screen.
2. Set the Category field. For example, check the CMOS only. The Library field
lists the test definitions.
3. Select a test definition at the Library field. For example, click the Id-Vg and
Select button sequentially. The screen changes the display as shown in Figure
1-6.
4. Change the measurement conditions at the Test Parameters field.
The following example changes the voltage sweep output.
a. Set VgStart to 0 V and VgStep to 0.2 V.
b. Set VsubsStep to -1.0 V.
To Next Page
