2- 22 Keysight B1500A User’s Guide, Edition 14
Introduction
Measurement Modules
MPSMU - Medium Power SMU
This section describes typical specification of the medium power source/monitor
unit (MPSMU). There is no restriction for the number of modules installed in one
mainframe.
• Maximum voltage, current, output power: ± 100 V, ± 100 mA, 2 W
• Minimum range: 0.5 V, 1 nA (1 pA when the E5288A ASU is used)
• Output/measurement value and resolution: see Table 2-5 to Table 2-8.

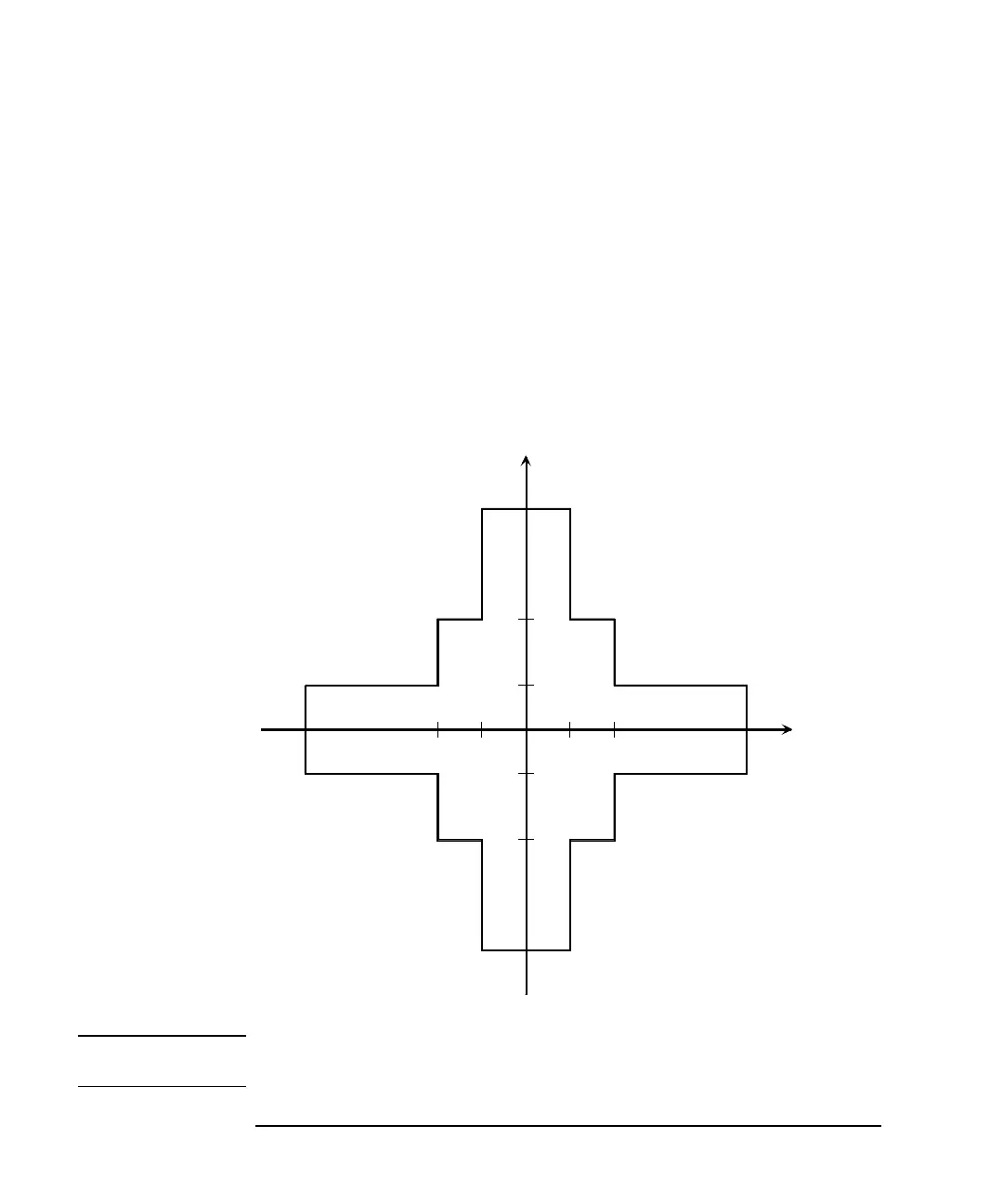

Figure 2-4 MPSMU Output and Measurement Ranges
NOTE The E5288A Atto Sense and Switch Unit (ASU) can be connected to the B1511B
MPSMU, but it cannot be connected to the B1511A MPSMU.
100 100
40
40
20
20
100
50
20
50
20
100
Voltage (V)
Current (mA)
-
--
-
-
-
To Next Page
