Keysight Technologies B1500A User Manual

4- 30 Keysight B1500A User’s Guide, Edition 14
Specifications
Hardware
HV-SPGU
HV-SPGU: High Voltage Semiconductor Pulse Generator Unit
• Number of output channels: 2 channels per module
• Modes: pulse, constant, and free run
• Standard pulse mode
• Two level pulse
• Three level pulse per one channel
• Pulse period: 30 ns to 10 s
• Delay range: 0 s to 9.99 s
• Delay resolution: minimum 2.5 ns
• Output count: 1 to 1,000,000
• Voltage monitor minimum sampling period: 5 s
• Trigger output
Level: TTL
Timing: Synchronized with pulse period
Trigger width: Pulse period  1/2 (pulse period  10 s), maximum 5 s (pulse
period > 10 s)
• Pulse range and pulse parameter: See Table 4-15.
• Pulse/DC output voltage and accuracy: See Table 4-16.

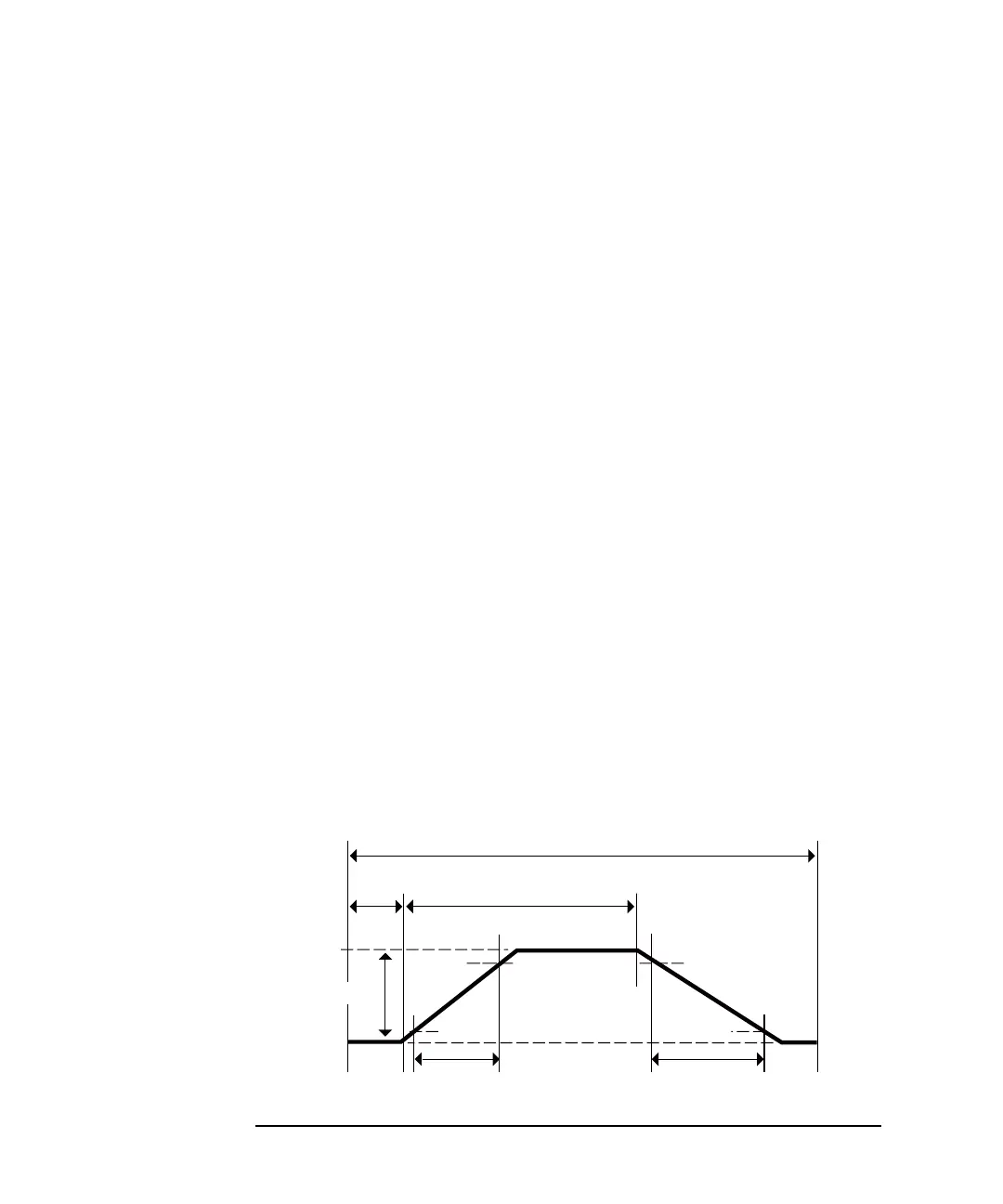

Figure 4-1 SPGU pulse setup parameters
Tperiod
Twidth
Tdelay
Vamp
Vpeak
Vbase
Tr Tf
90%
90%
10%
10%
