107

Cables:

●

1 X 16493S HCSMU Cable

●

1 X 16493T HV Triax Cable

●

4 X 16494A Triax Cable

●

1 X 16493L GNDU Cable

●

1 X N1300A CMU Cable

●

1 X 16493J Interlock Cable

●

1 X 16493G Digital I/O Cable

16494A Triax Cable N1300A CMU Cable

16493J Interlock Cable

16493G Digital I/O Cable

(Optional for N1259A Opt 300)

16493T HCSMU Cable

16493T HV Triax

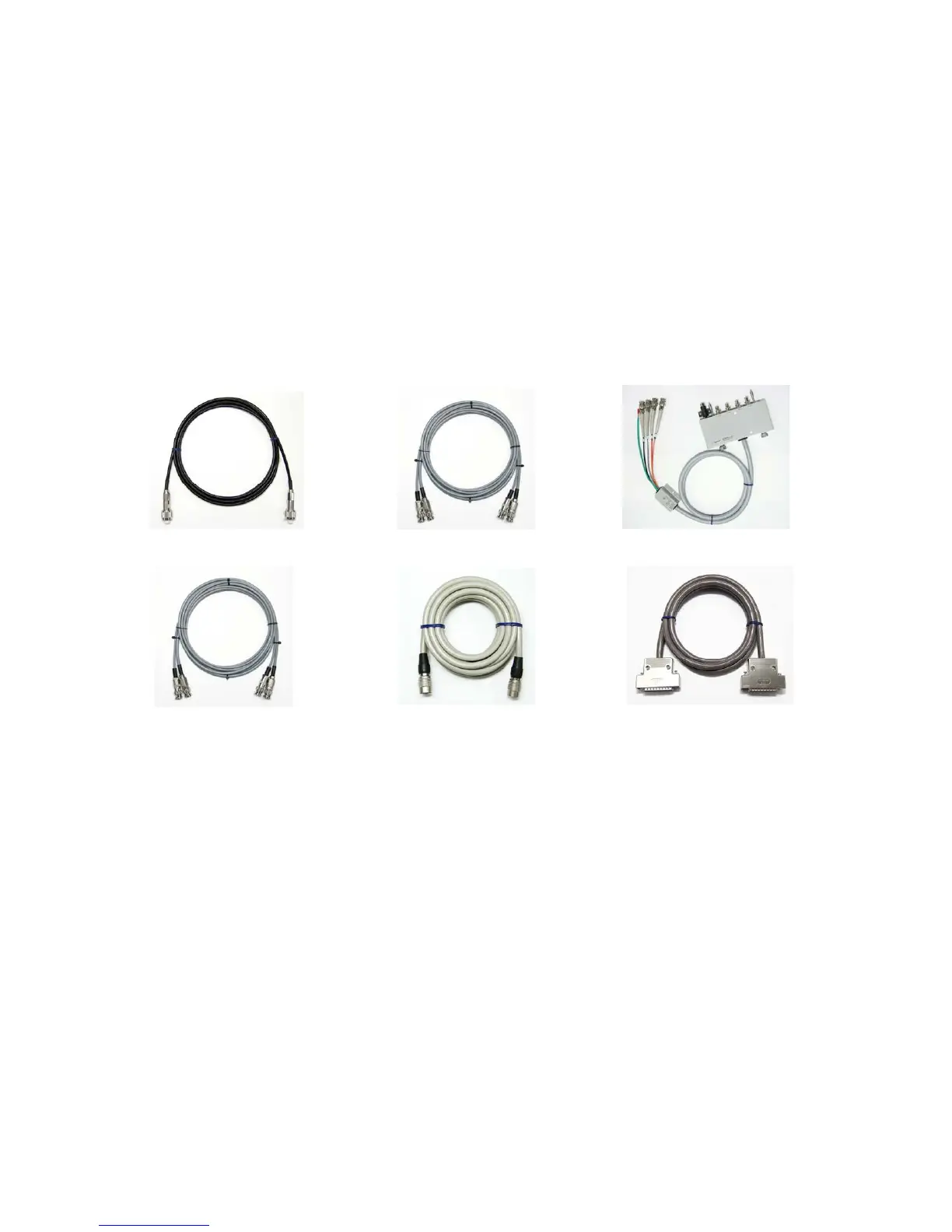

Figures A2-2. Cables used for connecting between the B1505A and the N1259A.

Note:

Even if your B1505A is one HPSMU and two HCSMU configuration, you can use

module selector by replacing the second HPSMU to second HCSMU. In that case,

please remember to connect the low terminal of the HCSMU 2 to the GNDU.
