17
Following shows the N1259A test fixture configuration and cables
used for connecting between B1505A and the N1259A.
Agilent N1259A High Power Test Fixture
●
Opt 020 High Voltage Bias Tee
●
Opt 300 Module Selector (Optional: Check appendix section for
using the Module Selector)
●
Opt 010 Inline package socket module (3 pin)
●
Opt 022 100 kΩ R-Box (Optional)
●
Opt 033 1 kΩ R-Box (Not used in BJT applications)
●
(10 X Test leads, 2 X SHV cables and SHV-Banana adapters are in-
cluding in the N1259A)
Cables
(2x HCSMU configuration is noted in parenthesis for each items)
●
1 X 16493S HCSMU Cable (2 X for 2x HCSMU config.)
●
1 X 16493T HV Triax Cable
●
4 X 16494A Triax Cable (2 X for 2x HCSMU A config.)
●
1 X 16493L GNDU Cable
●
1 X N1300A CMU Cable
●
1 X 16493J Interlock Cable

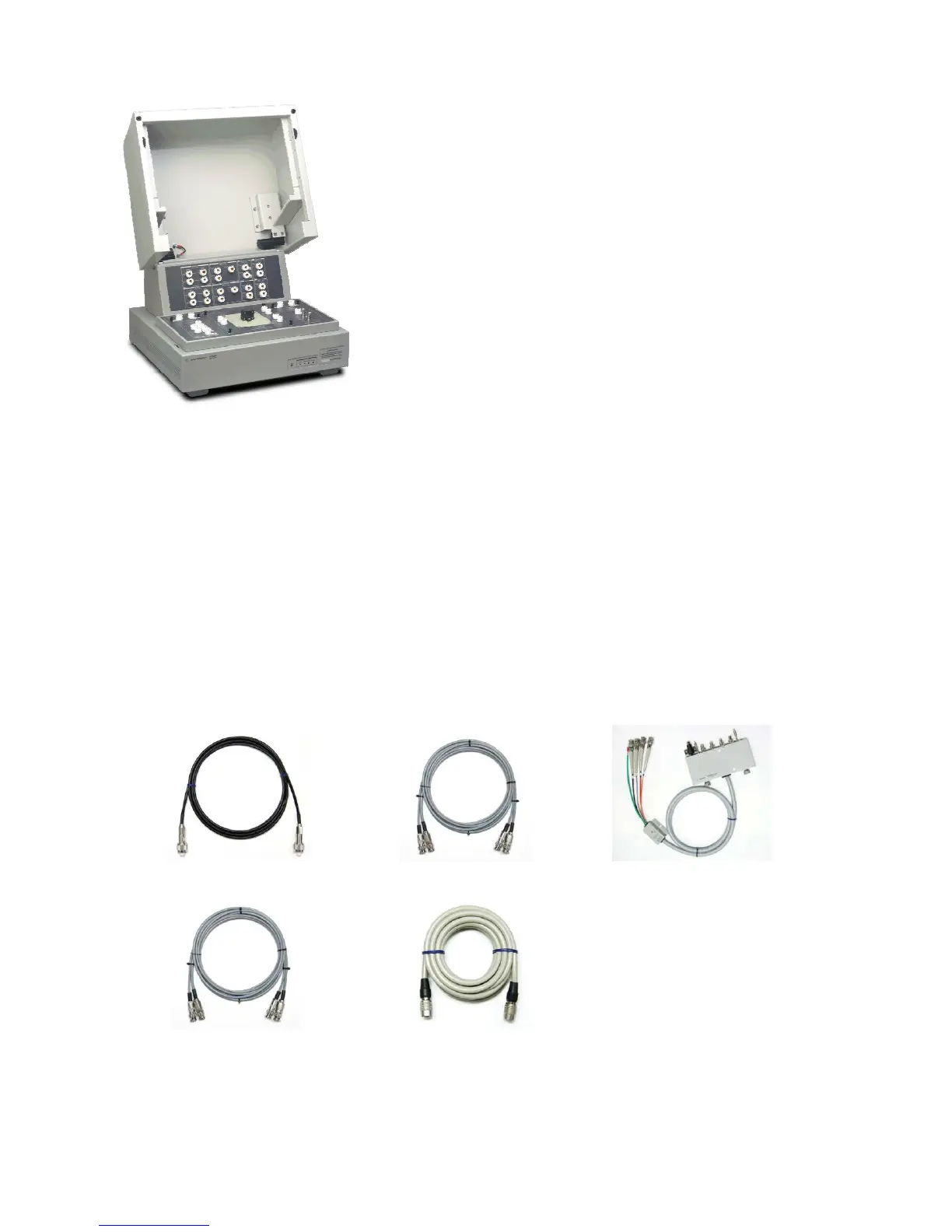

Figures 2-2. Agilent N1259A Test
Fixture
16494A Triax Cable N1300A CMU Cable
16493J Interlock Cable16493T HCSMU Cable
16493T HV Triax
Figure 2-3. Cables used for connecting between the B1505A and the N1259A
