Keysight Technologies B1505A Handbook

57
Use figure 3-11 connection inside the N1259A Test Fixture.
A. Starting from Application Test Library
This test approach starts measurements by using an Application Test Library, which
starts from the default setup parameters, and you have to customize the measure-
ment parameters depending on your requirements.
Setup and execute the test by following the next steps. The same instruction steps
are illustrated by the numbers on the "1. Starting from Application Test Library" side
of figure 3-13.
Step 1. Click the Application Test tab.
Step 2. Check the PowerBJT category.
Step 3,4. Select Ic-Vceo_R (Click the Ic-Vceo_R then click Select )
2
4
3
b
e
5
d
1`
2`
3`
1. Starting from Application Test Library 1`. Starting from My Favorite Setup
Go to
5
4`
c
1
a
f

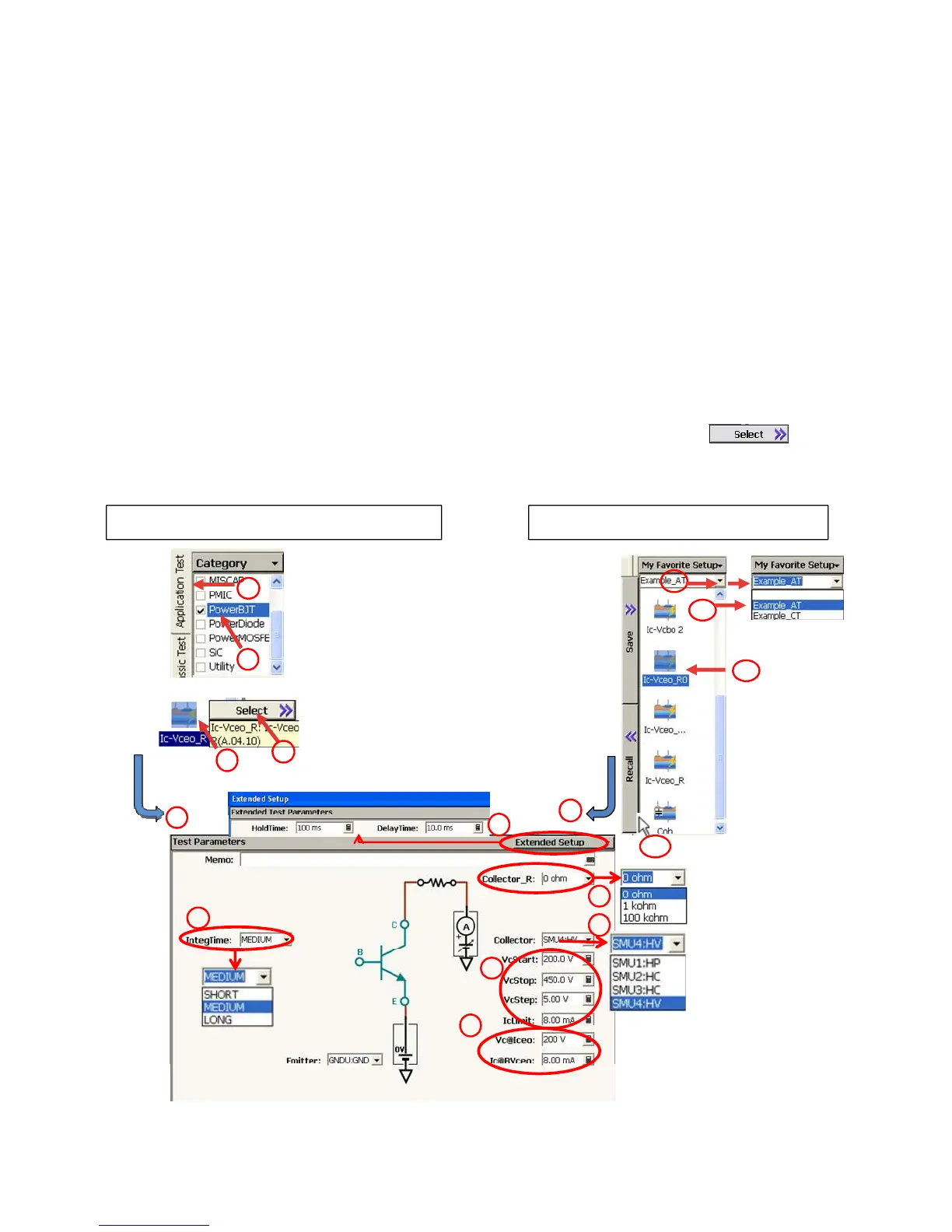

Figure 3-13. Ic-Vceo_R Application Test setup without a series collector resistor.
3-1-4-A. Measurement Procedure: Ic-Vceo_R Application Test without series collector resistor
