Labels and Annotations
You can create and display labels for each voltage, current, and power channel. Press [Label] to
show or hide the channel labels at the left.
To assign a label to a channel

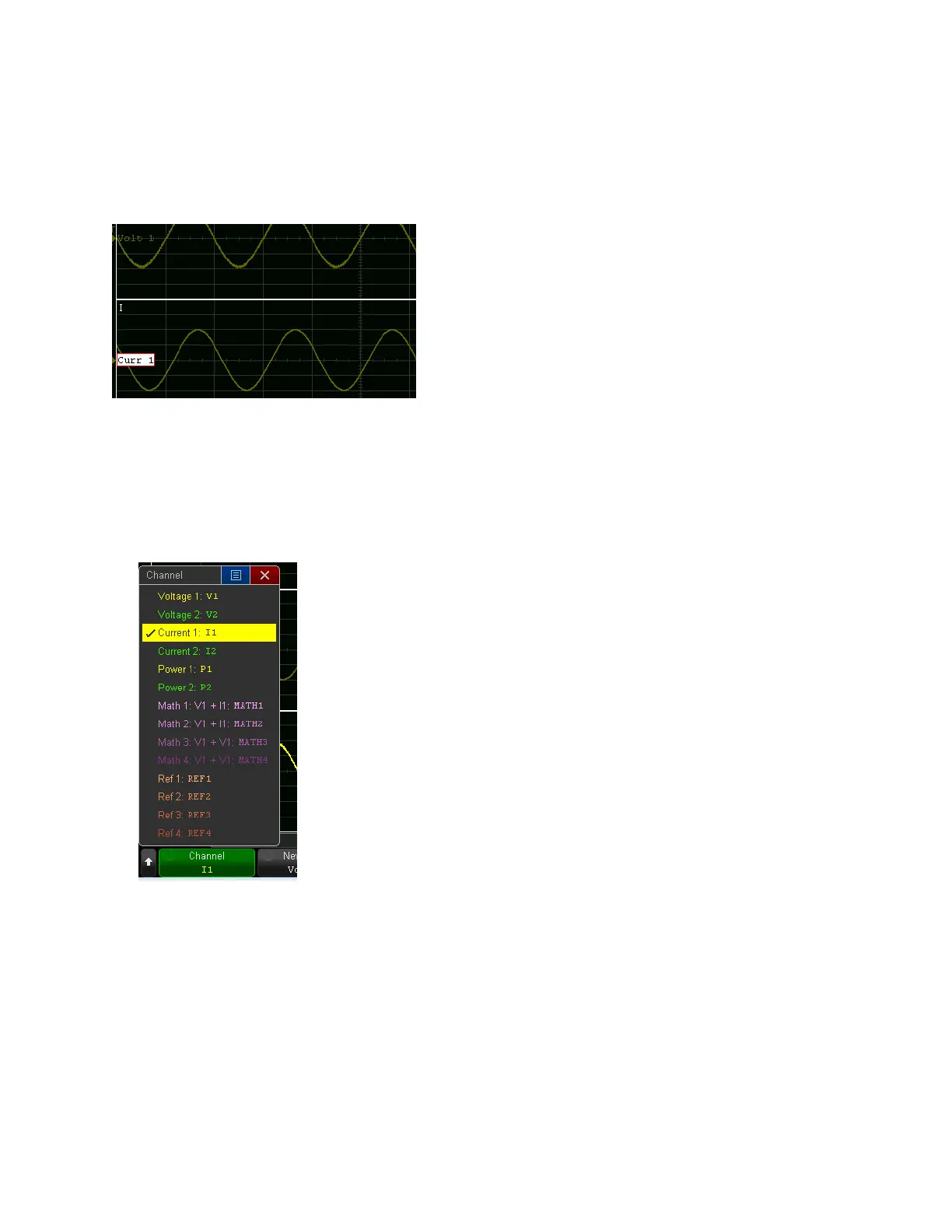

1. Press [Label]>Channel and select a channel to label. The default channel labels are shown
below. The channel does not have to be turned on to have a label assigned, but if the
channel is turned on, its label will be highlighted.
2. To select an existing label, press Library, then turn the Entry knob or repeatedly press
Library to select a label. To create a new label (and add it to the library), press New Label,
enter the label text, and press OK.
3. Press Apply New Label to assign the label to the selected channel.
68 Keysight IntegraVision PA2200 Series Power Analyzers Operating and Service Guide
