Power Quality Sidebars
The values in the Power Quality sidebar vary by wiring configuration and are described below.
For details regarding the mathematical formulas, see Mathematics of CWA Measurements.

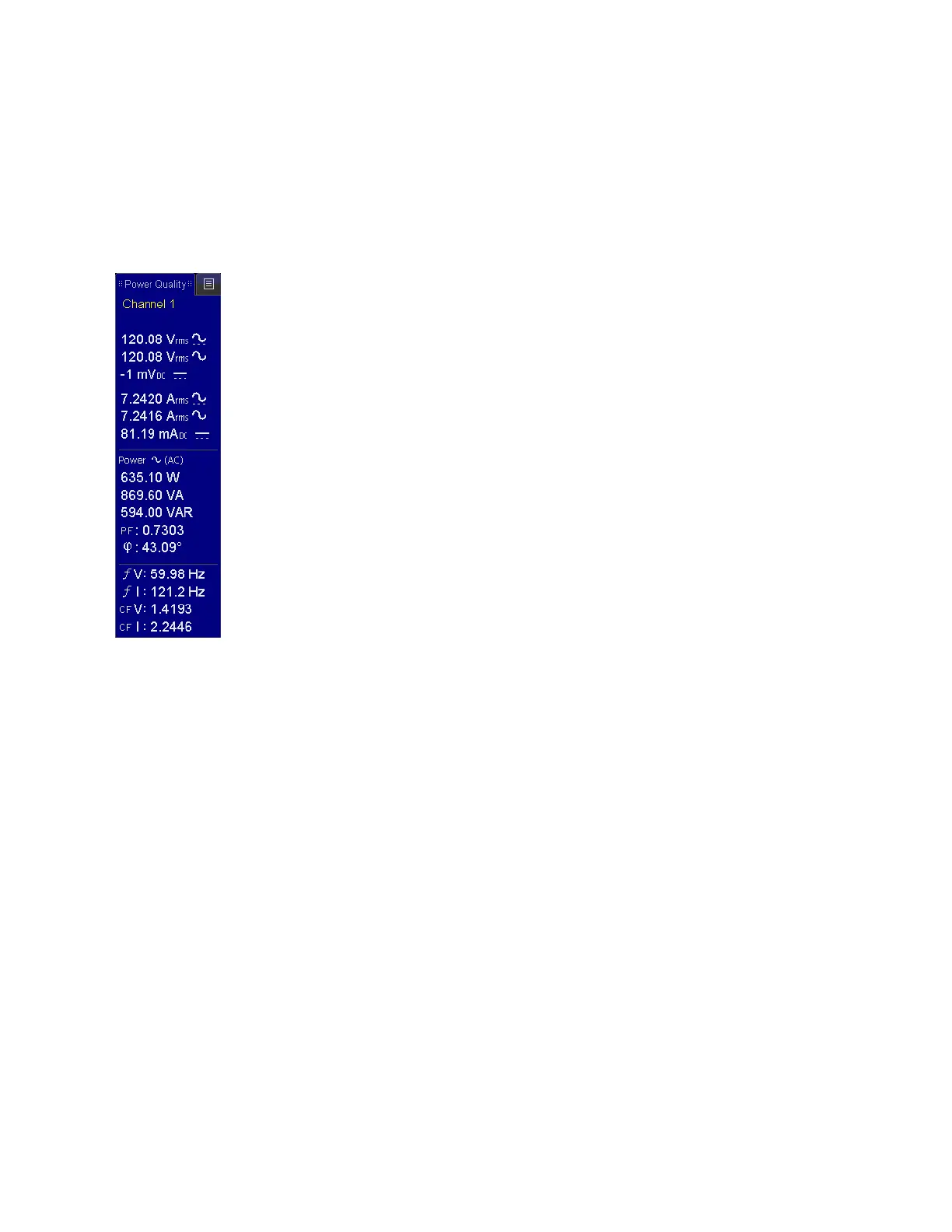

Sidebar for 1P-2W-1M wiring
From top to bottom, the values reported are:
– Voltage: RMS, AC, and DCoffset
– Current: RMS, AC, and DCoffset
– Real, apparent, and reactive power
– Power factor
– Phase angle by which voltage leads current
– Voltage and current frequency
– Voltage and current crest factor
124 Keysight IntegraVision PA2200 Series Power Analyzers Operating and Service Guide
