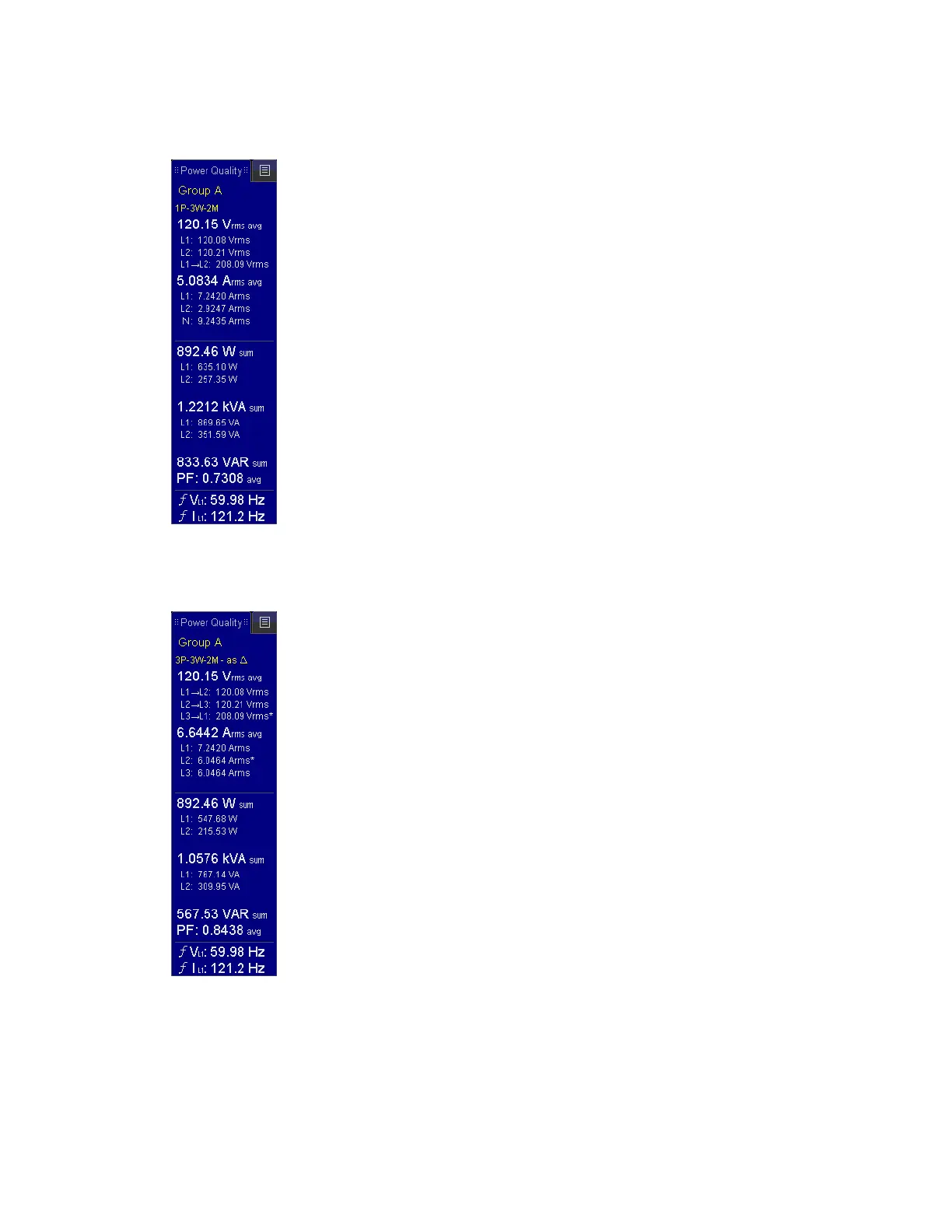

Sidebar for 1P-3W-2M wiring
From top to bottom, the values reported are:
– Vrms: Avg, L1, L2, and L1-->L2
– Arms: Avg, L1, L2, and N
– Power (W): Total, L1, and L2
– Power (VA): Total, L1, and L2
– Reactive power (total)
– Power factor (avg)
– Voltage and current frequency, L1
Sidebar for 3P-3W-2M wiring
From top to bottom, the values reported are:
– Vrms: Avg and between each pair
– Arms: Avg, L1, L2, and L3
– Power (W): Total, L1, and L2
– Power (VA): Total, L1, and L2
– Reactive power (total)
– Power factor (avg)
– Voltage and current frequency, L1
