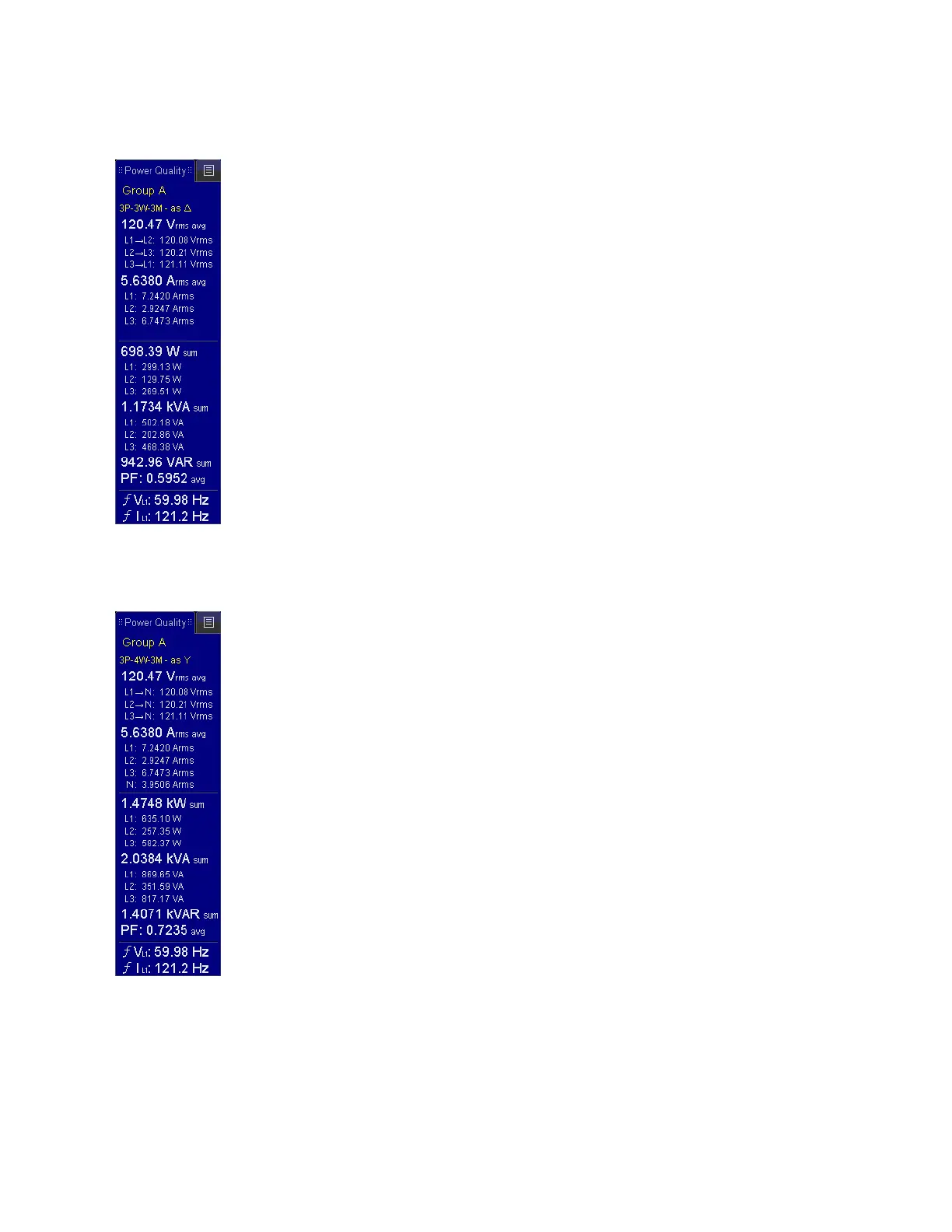

Sidebar for 3P-3W-3M wiring
From top to bottom, the values reported are:
– Vrms: Avg and each pair
– Arms: Avg and each line
– Power (W): Total and each line
– Power (VA): Total and each line
– Reactive power (total)
– Power factor (avg)
– Voltage and current frequency, L1
Sidebar for 3P-4W-3M wiring
From top to bottom, the values reported are:
– Vrms: Avg and each line to neutral
– Arms: Avg and each line (including neutral)
– Power (W): Total and each line
– Power (VA): Total and each line
– Reactive power (total)
– Power factor (avg)
– Voltage and current frequency, L1
