Keysight M8040A High-Performance BERT Getting Started Guide 29
Introduction 1
Table 10 M8057A Front Panel Inputs/Outputs Ports
The following figure displays the back panel of the M8057A remote head
with its various components:

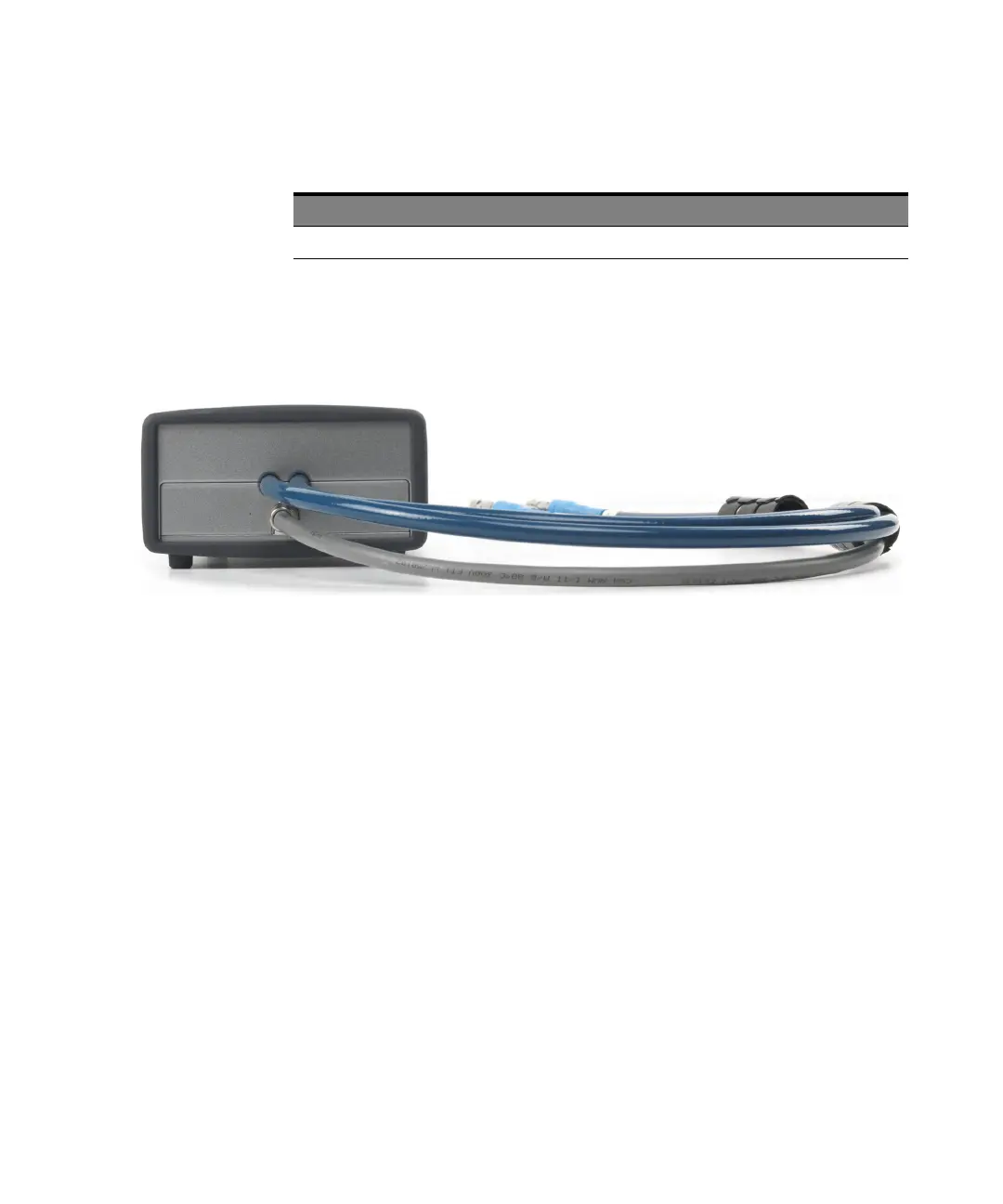

Figure 8 M8057A remote head back panel
As displayed in Figure 8 on page -29, the back panel of M8057A remote
head has cables which connects with each channel of M8045A remote
head controls (P and N). The length of these cables are 85 cm.
Ensure that the chassis is NOT powered up or connected to a power
source while making connections to M8057A.
Also, make sure NOT to remove the M8057A connections when it is
powered on. However, if you wish to remove the M8057A connections,
ensure that the instrument is powered off.
Component Description
Data Out and /Data Out Connected to DUT
To Next Page
