32 Keysight M8000 Series of BER Test Solutions Installation Guide
2 Installing Modules
9 Route the synchronization cable as shown in Figure 18 on page -32
using the two self-adhesive cable holders.

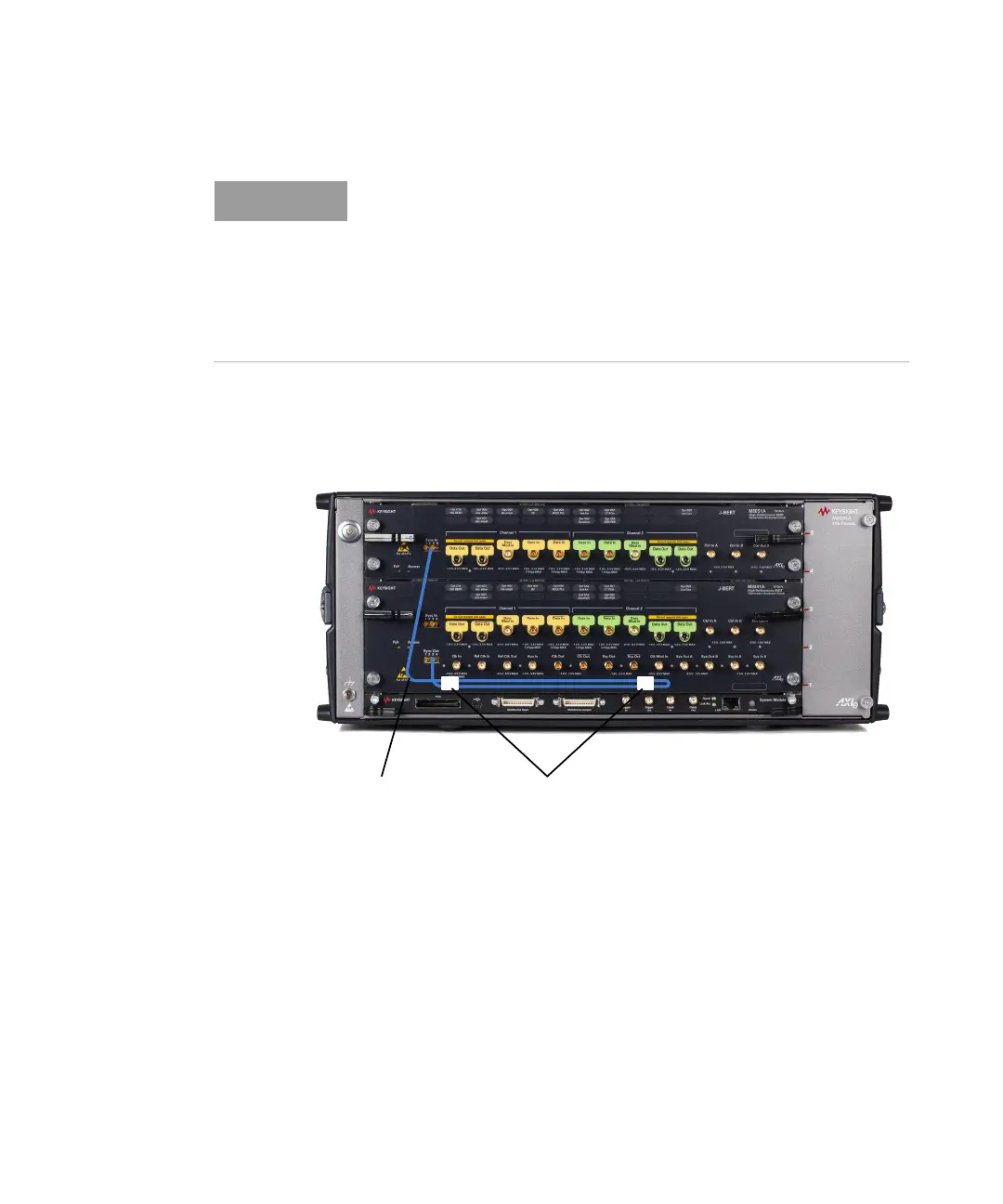

Figure 18 Synchronization cable routing
This configuration requires the synchronization cable (provided with the
M8051A) which connects the M8041A SYNC OUT to the M8051A SYNC
IN to synchronize the two modules to a common system clock.
While connecting a module which requires the sync cable connection
(e.g. M8051A, M8062A) to the test setup, make sure to connect the sync
cable after completing the other connections and also remove the sync
cable first while disconnecting the connections.
Self-adhesive
Holders
Sync Cable
To Next Page
