214 Keysight CXG, EXG, and MXG X-Series Signal Generators Service Guide
RF Assembly
A3 RF Assembly Troubleshooting

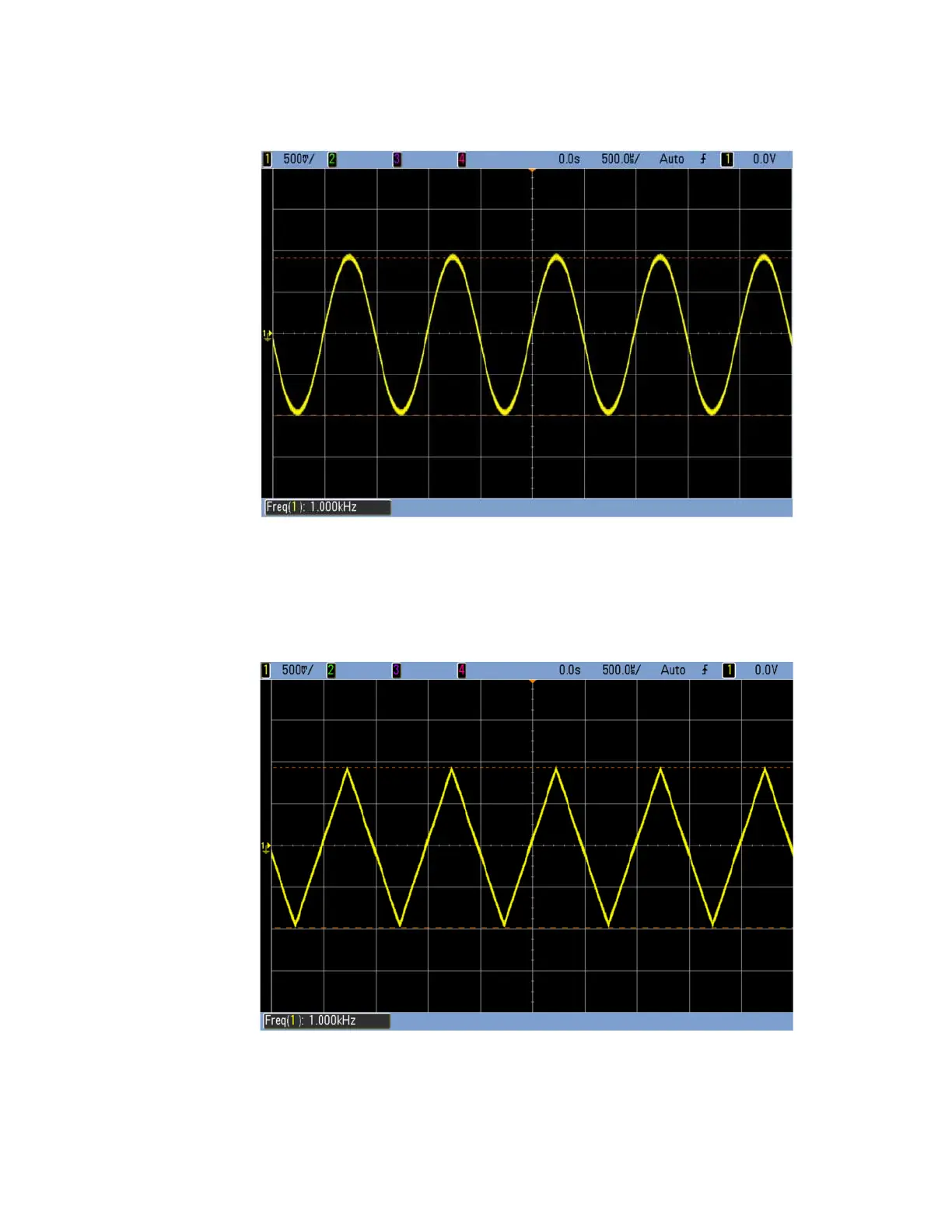

Figure 10-7 LF OUT – Sinewave Signal
10.The waveform generated can be changed to either Sine, Triangle, Square,
Pos Ramp, or Neg Ramp by pressing LF Out, Setup LF Out Source, LF Out
Waveform and selecting the desired waveform. The Triangle waveform is
shown in Figure 10-8.
Figure 10-8 LF OUT – Triangle Wave Signal
11.If any of the LF OUT waveforms are not being generated properly run the
LF Output Calibration adjustment from the performance verification
software. If this does not correct the problem, replace the A3 RF assembly.
