6 Repair Guide
124 Keysight N1913/1914A Service Guide

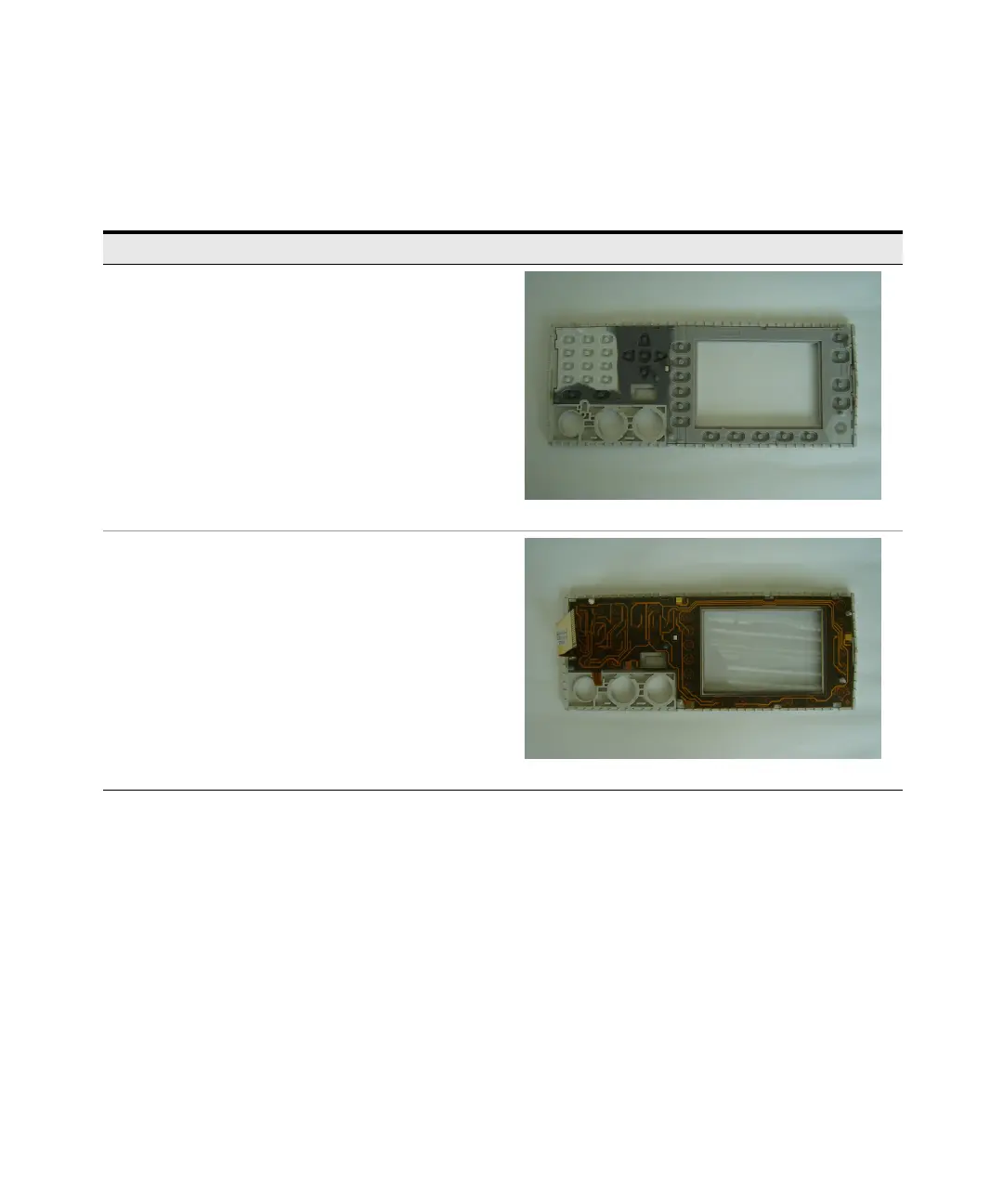

Front Panel Reassembly Instructions
Instructions Visual
Step 1
Insert the keymat into the front panel sub-frame.
Step 2
Insert the EMI shielded window into the keymat, ensuring that
it is clean and free from fingerprints.
Step 3
Overlay the key flex circuit onto the keymat, ensuring that all of
the rubber lugs are engaged to hold it securely.
To Next Page
