412 Keysight N9010B EXA Signal Analyzer Service Guide
Replaceable Parts
Hardware

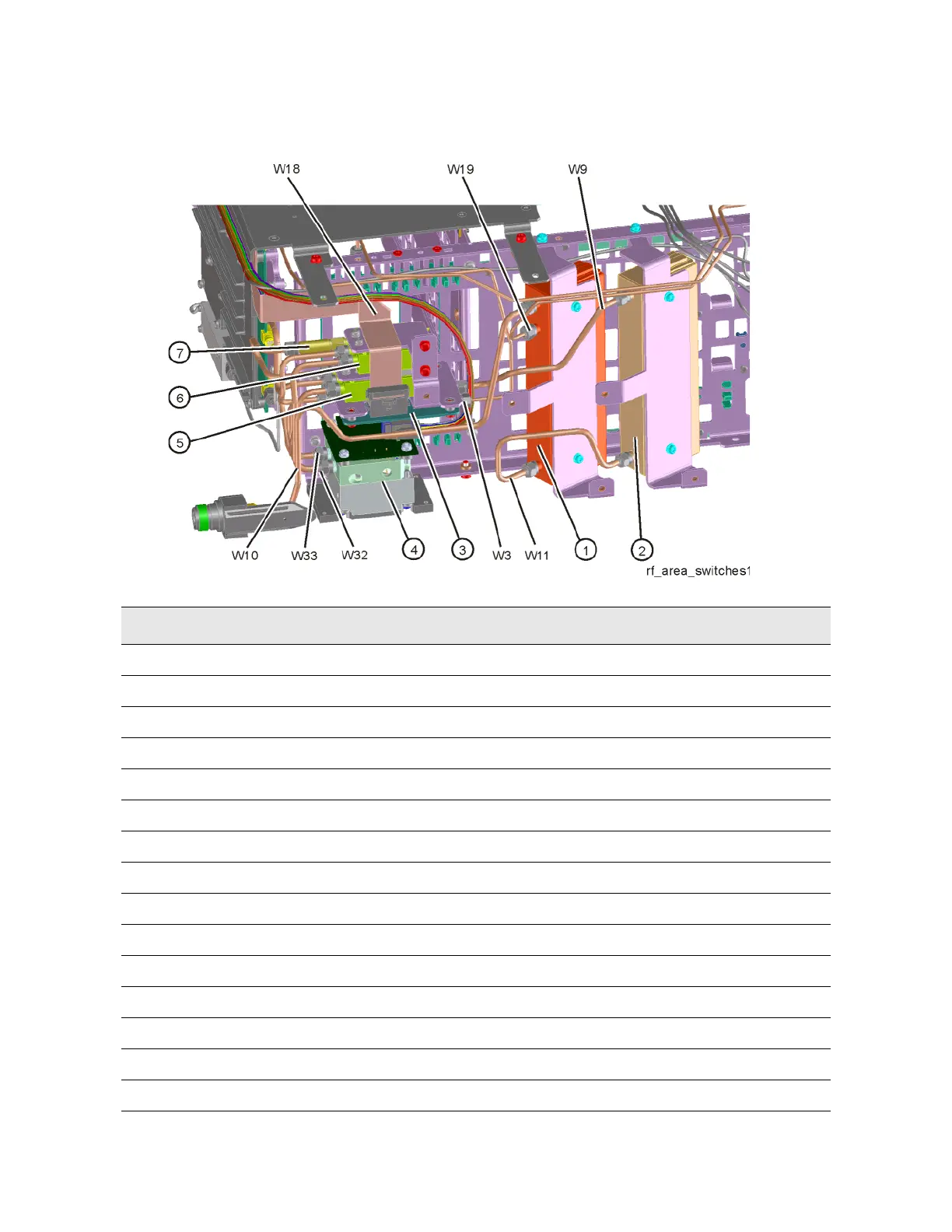

Figure 14-10 RF Area - RF/Microwave Instruments with Options B40, MPB, or DP2
Table 14-12
Item Description Keysight Part Number
1 A9 RF Attenuator A 33360-60011
2 A10 RF Attenuator B 33321-60085
3 A11 Low Band Switch Assembly E4410-60121
4 A12 YTF Preselector (not used in Opt 503) 5087-7382
5SW1 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
6SW2 Coaxial Switch (Options B40, MPB, or DP2) N1810-60069
7 AT1 Fixed Attenuator, 6 dB 08493-60026
W3 Cable Assembly, A11J2 to A13J2 (semi-rigid) N9020-20101
W9 Cable Assembly, A10 Output to A11J1 (semi-rigid) N9020-20153
W10 Cable Assembly, J1 to A9 Input (semi-rigid) N9020-20141
W11 Cable Assembly, A9 Output to A10 Input (semi-rigid) N9020-20142
W18 Cable Assembly, A11J4 to A15J700 (Ribbon Cable) E4410-60160
W19 Cable Assembly, A16J701 to A9 Cal Signal Input/Port 2 (semi-rigid) N9020-20065
W32 Cable Assembly, SW2 Port 2 to A12J2 (Semi-rigid) E4410-20163
W33 Cable Assembly, SW1 Port 2 to A12J1 (Semi-rigid) E4410-20165
