Chapter 3 97
Technical Specifications
RF Input

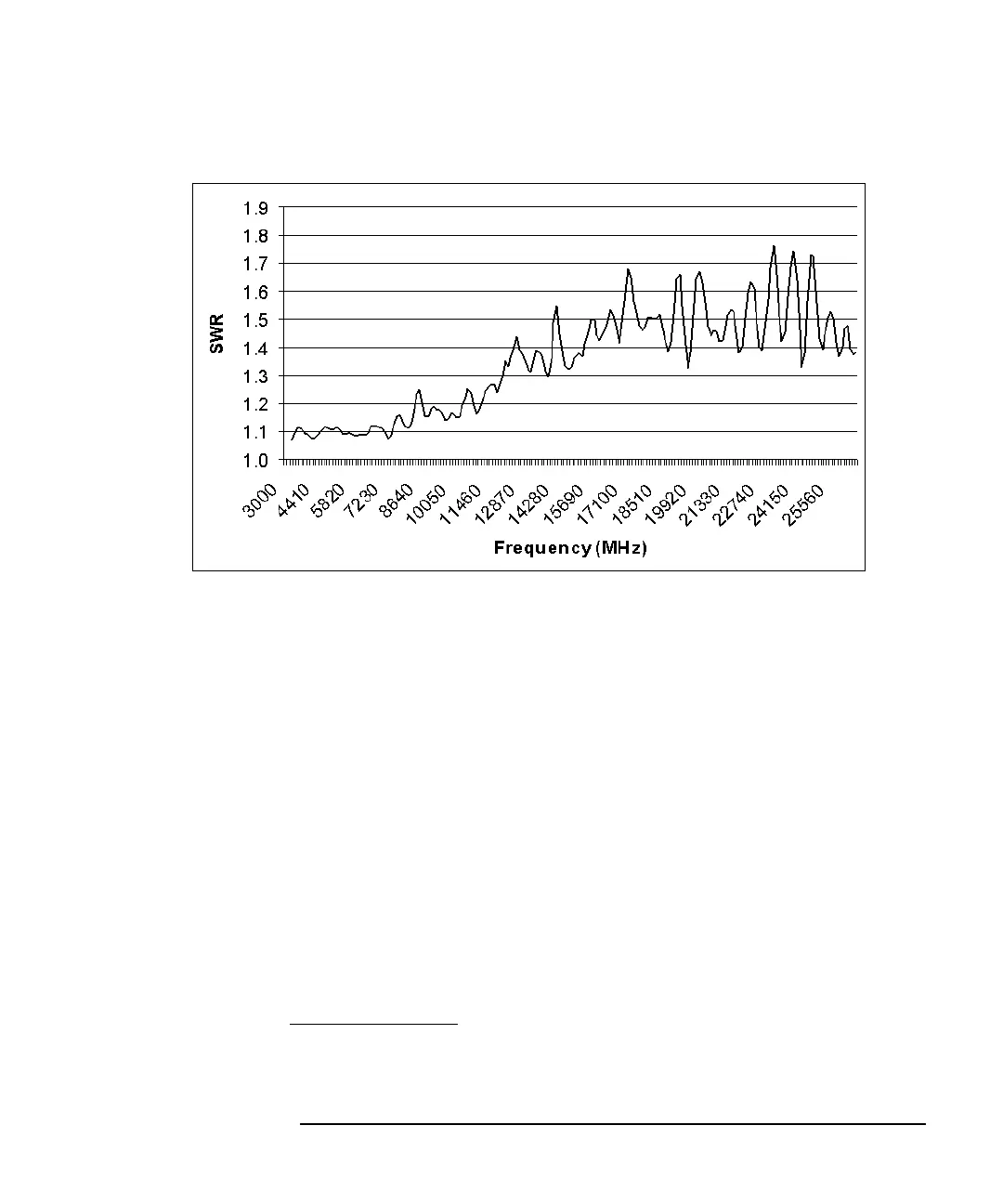

Figure 3-4 Characteristic
1
SWR at 23° C (3.0 GHz to 26.5 GHz)
Maximum
Operating Input
Power
2
-10 dBm
Note that this is the total wide-band noise power. Contributing factors
are: Noise source ENR, external gain, noise figure, and bandwidth
(including DUT).
Maximum
Protected Input
Level
±20Vdc; +15 dBm peak (or average) at RF
1. Characteristic values are met or improved on by 90% of instruments with 90% confidence.
2. This is the total wide-band noise power. Contributing factors are: Noise Source ENR, external
gain, noise figure and bandwidth (including DUT).
