40 Chapter 2
Test Descriptions
Frequency Accuracy
Test Setup

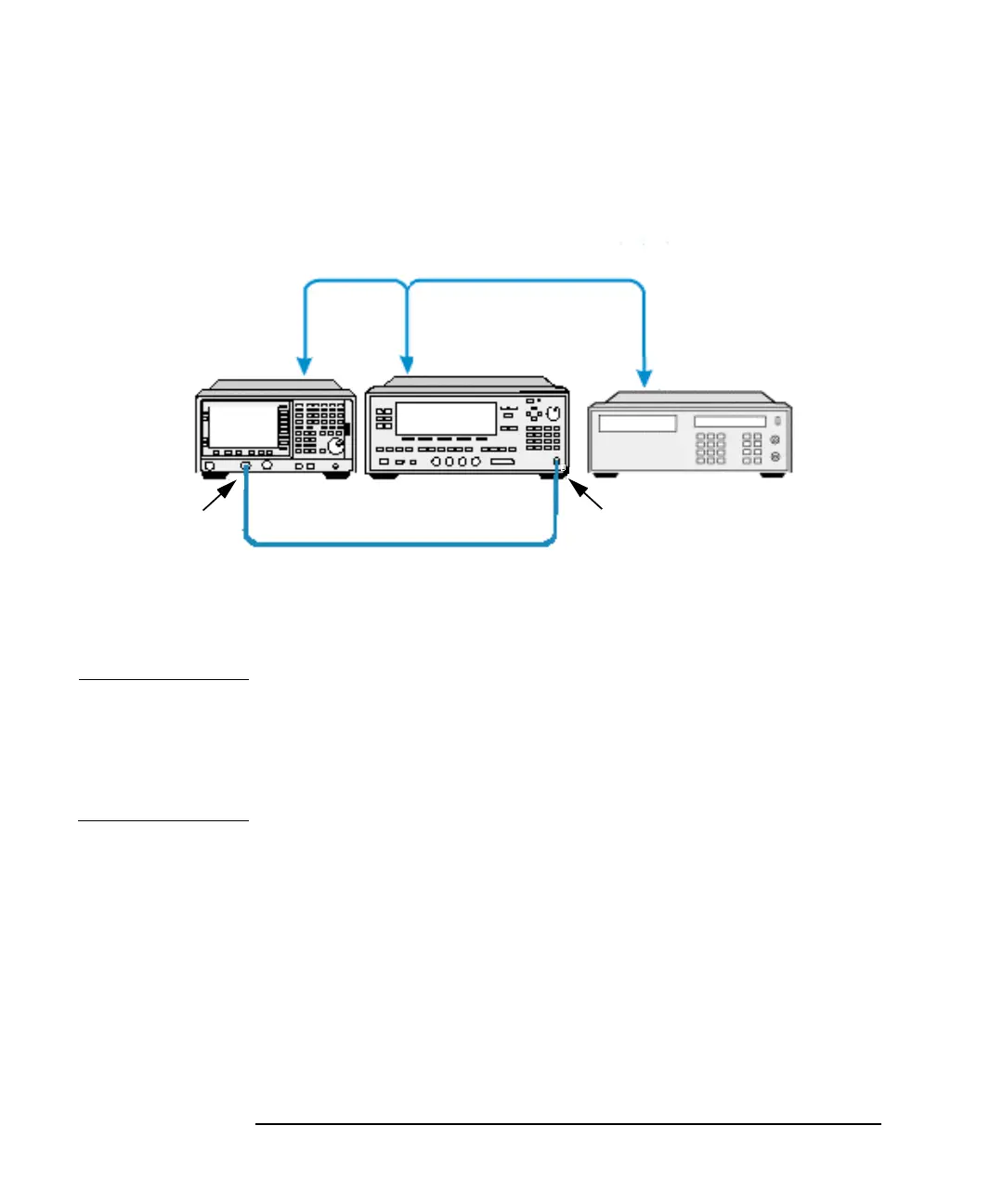

Figure 2-7 Frequency Accuracy test setup
Test Procedure
NOTE Throughout the Frequency Accuracy Test Procedure the term ‘the
Worksheet’ refers to the Frequency Accuracy Test Worksheet on page 45
and the term ‘the Test Record’ refers to the Frequency Accuracy Test
Procedure Test Record detailed in the relevant Appendix for the model
number being tested.
Step 1. Connect the equipment as shown in Figure 2-7 on page 40.
Step 2. Set the Synthesized Sweeper as follows:
1. Press the
Preset key and wait for the preset routine to complete.
2. Set the power level to -70dBm (press the
Power Level key and -, 7, 0,
dB(m)).
3. Switch
RF ON
ANALYZER
NOISE FIGURE
SWEEPER
SYNTHESIZED
STANDARD
FREQUENCY
Ref In
Ref In
RF Cable
Adapter 2
RF Output
Adapter 1
10 MHz
Input
BNC Cable
To Next Page
