Keysight x-series Getting Started Guide

X-Series EMI Receiver Getting Started Guide 31

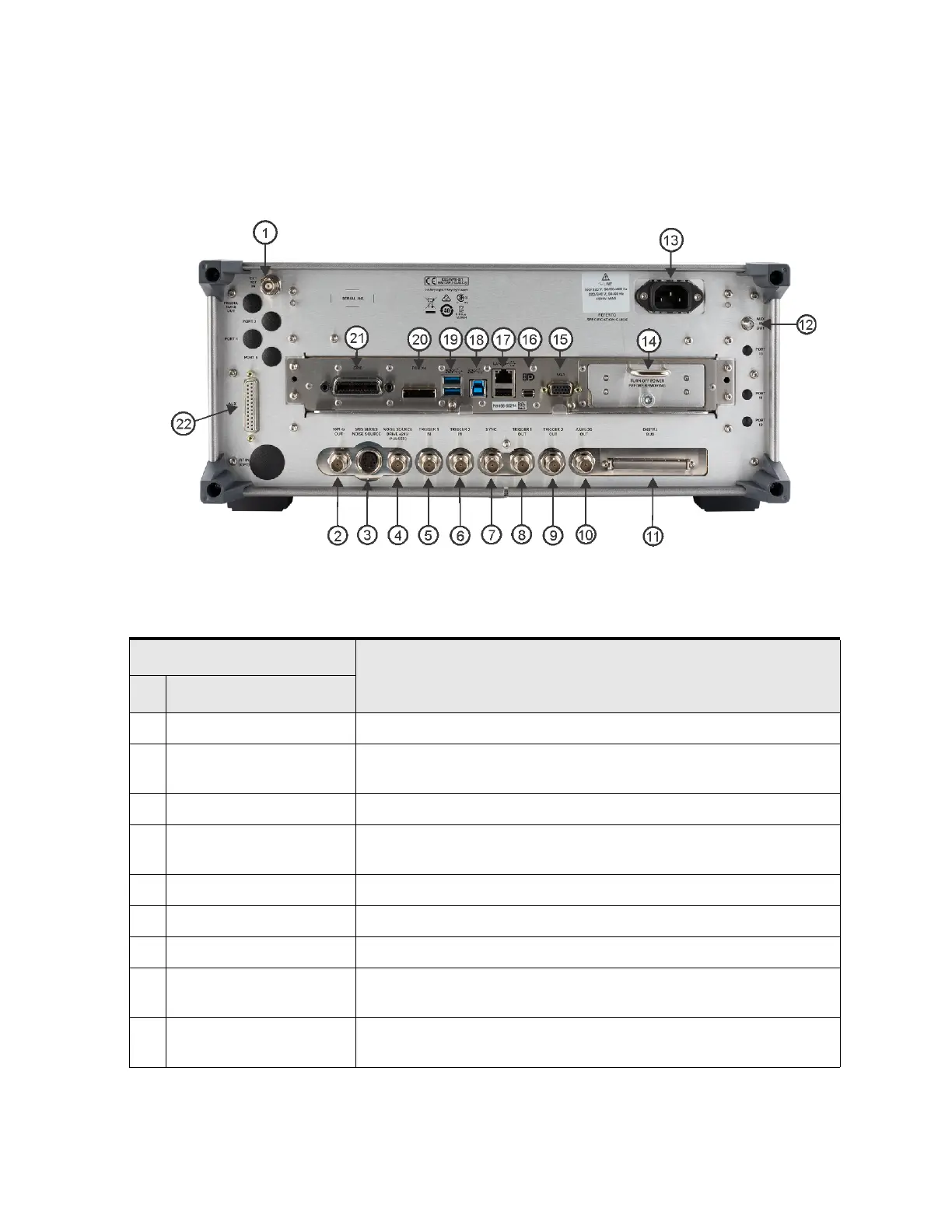

Front and Rear Panel Features
Rear-Panel Features
Rear-Panel Features
MXE
Item
Description
# Name
1 EXT REF IN Input for an external frequency reference signal.
2 10 MHz OUT An output of the instrument internal 10 MHz frequency reference signal. It is used
to lock the frequency reference of other test equipment to the instrument.
3 SNS Series Noise Source For use with Keysight N4000A, N4001A, N4002A Smart Noise Sources (SNS).
4 Noise Source Drive +28 V
(Pulsed)
For use with Keysight 346A, 346B, and 346C Noise Sources.
5 TRIGGER 1 IN Allows external triggering of measurements.
6 TRIGGER 2 IN Allows external triggering of measurements.
7 Sync Reserved for future use.
8 TRIGGER 1 OUT A trigger output used to synchronize other test equipment with the instrument.
Configurable from the Input/Output keys.
9 TRIGGER 2 OUT A trigger output used to synchronize other test equipment with the instrument.
Configurable from the Input/Output keys.

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
