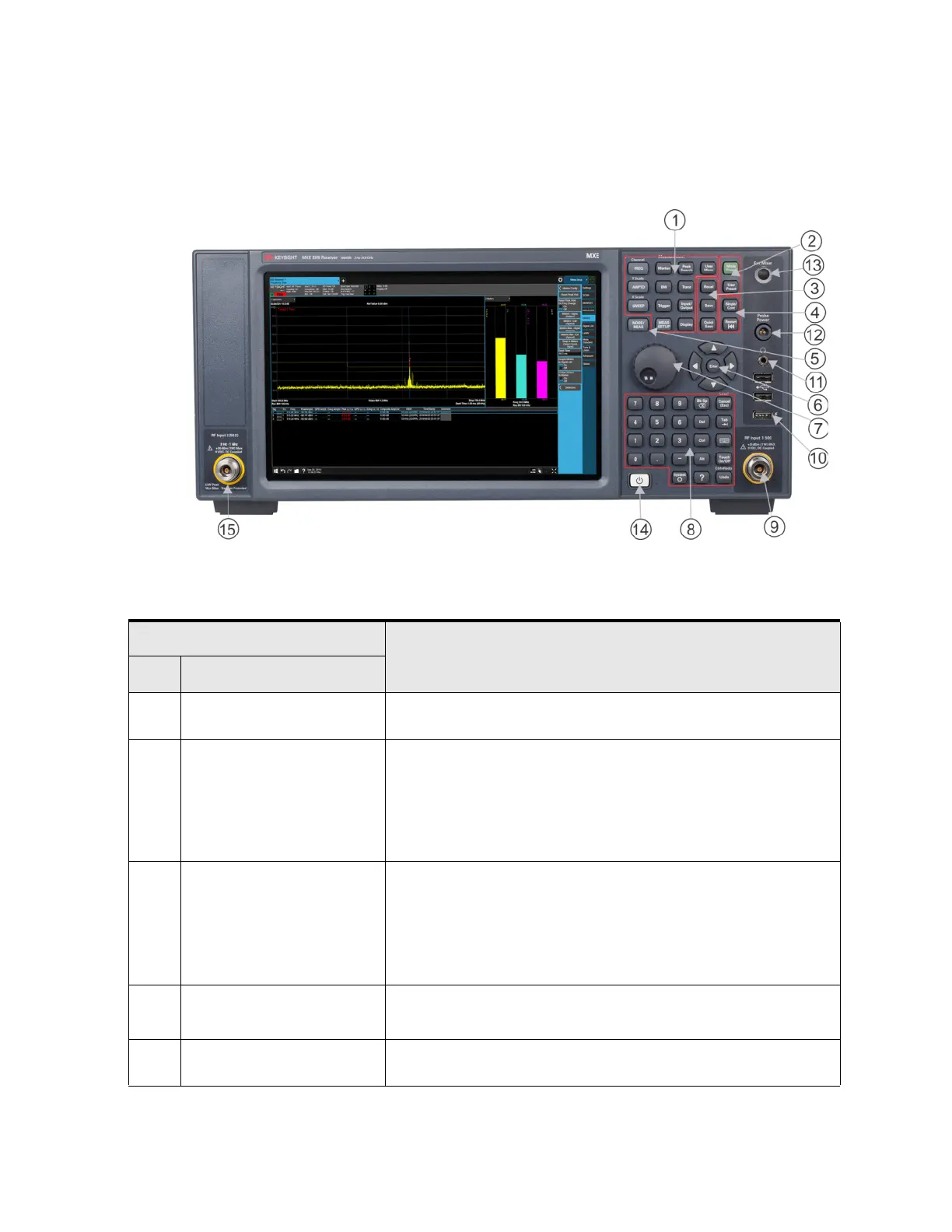

Front and Rear Panel Features
Front-Panel Features
Front-Panel Features
MXE
Item
Description
# Name
1 Measurement Keys These keys (in the shaded area) enable you to set the parameters used for making
measurements in the current Mode and Measurement.
2 Preset Keys Mode Preset - local to the current mode, global to all measurements in the mode,
affects most but not all parameters in the mode, does not affect Input/Output or
System variables
User Preset - local to the current mode, global to all measurements in the mode,
affects all parameters in the mode as well as the Input/Output variables. Does not
affect System variables.
3 Save/Recall Keys Save - enables you to save states, traces, screen images and other items from the
instrument to files on the instrument’s internal storage, to removable devices, and to
directories on the network.
Recall - enables you to recall previously saved states, traces and other items to the
instrument from files on the instrument’s internal storage, from removable devices,
and from directories on the network.
4 Sweep Keys Single/Cont - toggles between single and continuous measurement sweeps.
Restart - restarts the measurement.
5 Mode/Measurement Key This key enables you to select the desired Mode (measurement application),
Measurement, and/or View.

Keysight x-series Specifications

General

Analysis Bandwidth	Up to 1 GHz (depending on model)
Real-Time Bandwidth	Up to 1 GHz (depending on model)
Form Factor	Benchtop
Connectivity	LAN, USB, GPIB
Resolution Bandwidth	1 Hz to 10 MHz (depending on model)
