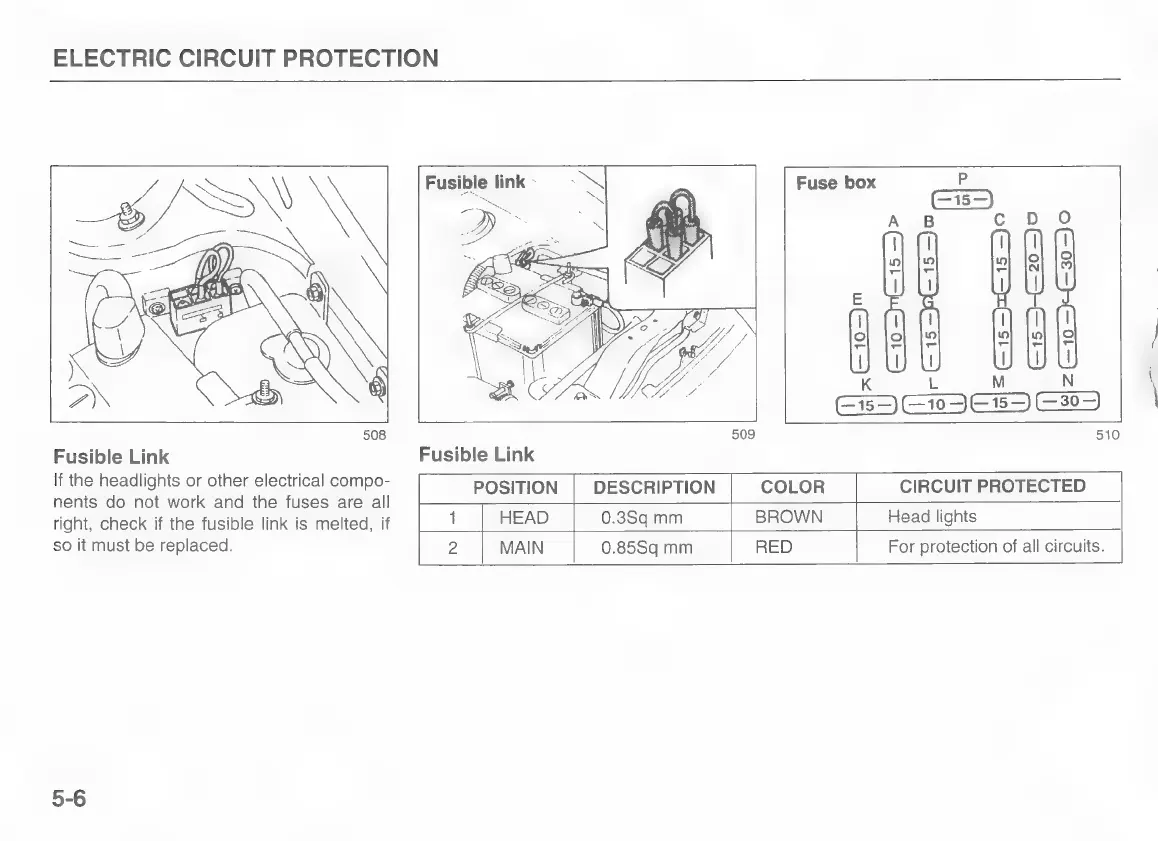

ELECTRIC CIRCUIT PROTECTION
Fusible link - Fuse box CE \
Cs DO
: BE
F
U
N
508 509 510
Fusible Link Fusible Link
If the headlights or other electrical compo- POSITION | DESCRIPTION | COLOR CIRCUIT PROTECTED
nents do not work and the fuses are all -
right, check if the fusible link is melted, if HEAD | _0.3Sqmm BROWN Head lights
so it must be replaced. 2 | MAIN | 0.85Sqmm | RED For protection of alll circuits.
