Sequence Function
Overview of the Sequence Function
Sequence is a function that executes a sequence of operations set in advance.
Programs and steps

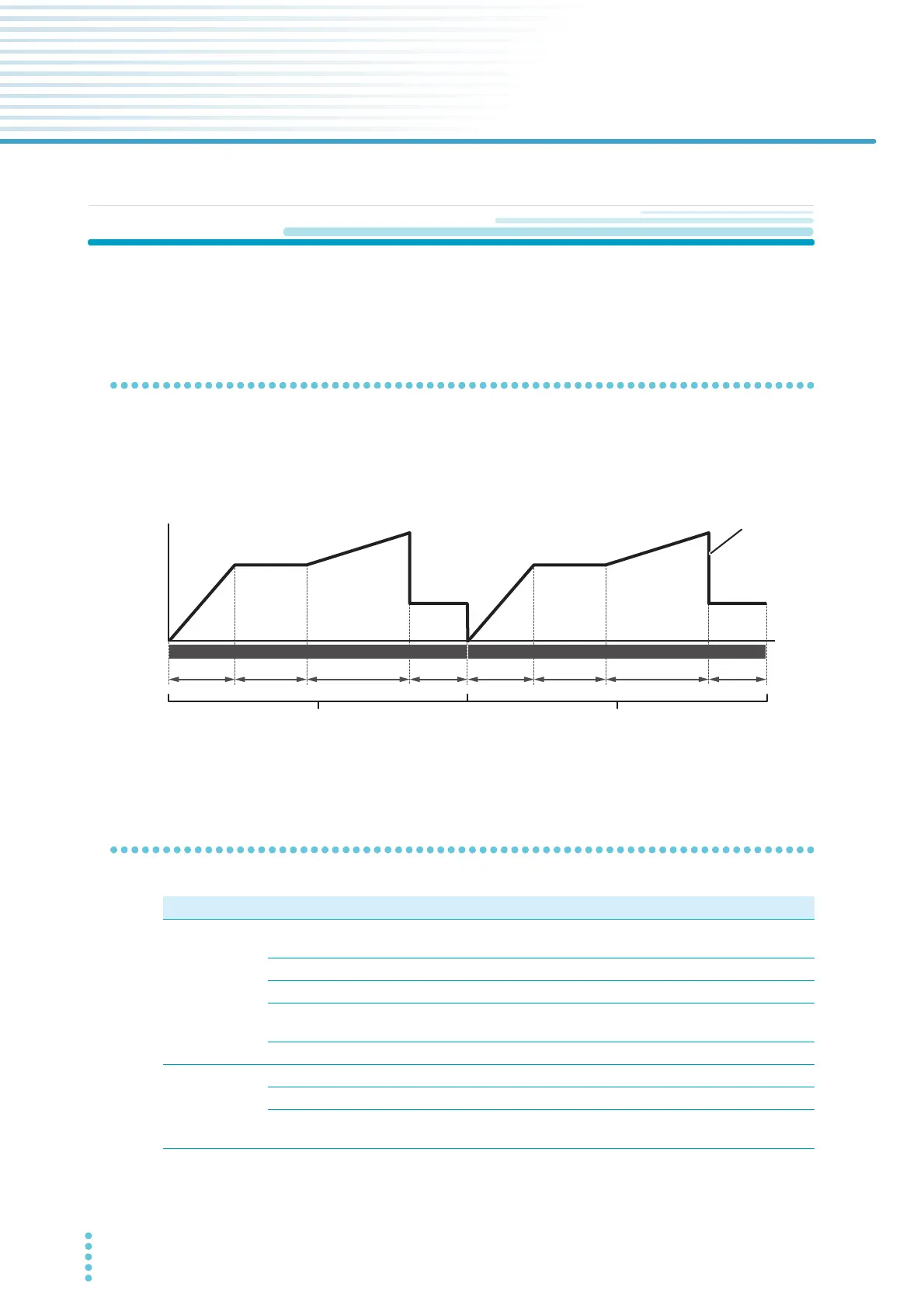

A sequence consists of programs and steps. A program is a collection of steps. Steps are executed in
order one at a time, starting from step 1. The completion of the last step signifies that the program has
been executed once. When the specified number of program loops is completed, the sequence ends. The
value at the end of the sequence will be the value of the last step.
Main functions
Loop 1Loop 1 Loop 2Loop 2
Set a program for each operation mode. Up to 30 programs can be set.
Up to 10000 steps total can be used in all programs
Set a program for each operation mode. Up to 30 programs can be set.
Up to 10000 steps total can be used in all programs
Input current
Step 1 Step 2 Step 3 Step 4
Time
Program1
Load value
Step 1 Step 2 Step 3 Step 4
Program1
Setting range Setting Description
By step Load value Current, conductance, voltage, power. The values that can
be set depend on the current operation mode.
Slew rate Varies depending on the current range setting.
Step execution time 0.000025 s to 3600000 s
Load on/off control To turn the load on, set the load setting transition method to
step or ramp.
Miscellaneous Trigger signal setting, trigger signal output
For each
program
Number of loops of program 1 to 100000 repetitions, or infinite repetitions.
CV mode addition Specifies the voltage for CV mode addition (+CV).
Protection function Specifies the value at which a protection function (OCP,
OPP, UVP) is activated.
