Page 11
6. Alarm / relay settings
F400
6.c - Alarm / relay functions and LED colour codes

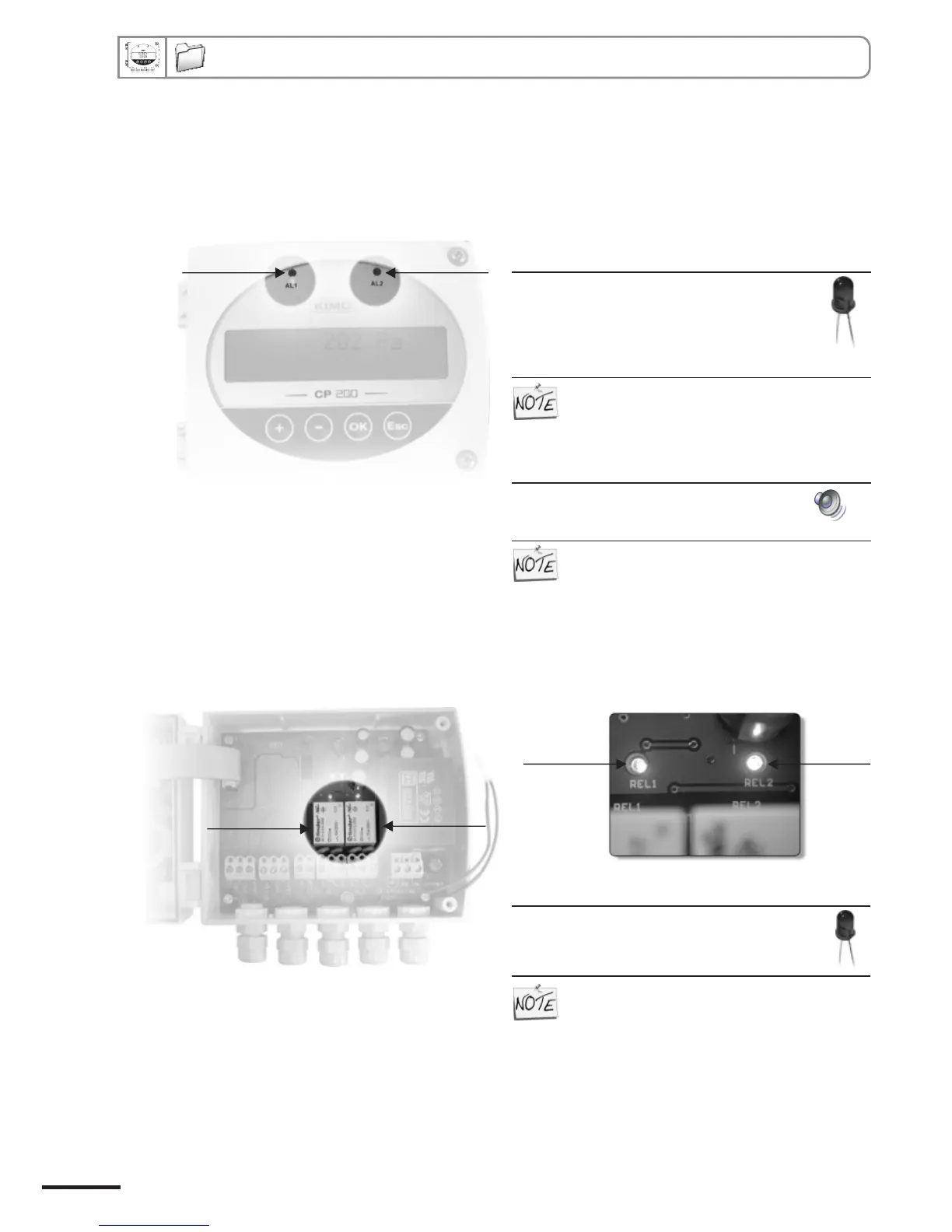

6.c.1 - Visual / audible alarms
Class 200 transmitters have 2 visual / audible alarms located in front of the transmitter, allowing to know the
condition of the setpoints.
Alarm n°2Alarm n°1
Green The alarm function is activated and
the set point is not reached
Red The alarm function is activated and
the setpoint is reached
None The alarm function is not activated
Alarm LED colour codes
The red LED appears when the setpoint is reached,
taking into account the time-delay and the action type
(falling or rising).
See page 13 for more details.
6.c.2 - Les relais
Class 200 transmitters have 2 relays visible on the transmitter board. These 2 relays each have one LED to
allow real-time checking.
Audible alarm
Once the alarm is activated, an alarm sounds
whilst the setpoint is reached.
Red The relay is energized
None The relay is not energized
or has not been configured
Relay LED colour codes
The relay is energized when the setpoint is reached,
taking into account the time-delay, the action type and
also the alarms security mode.
Set points, time-delay and action type setting: see page
16
Alarm security settings : see page 10
Relay n°2
LED
Relay n°1
LED
Relay n°2
Relay n°1
The BEEP alarm function must be activated to use the
audible alarm. See page 10.
Class 200 transmitter configuration via keypad
