Kimo Class 200 User Manual

6.e - Alarm mode details
6. Alarm / relay settings
F400
Page 13
6.e.1 - Definitions
Seuil
The setpoint is a limit which, on being reached and/or exceeded , activates an alarm or energizes a relay (in negative
security, see page 10 for more details).
Time-delay
Once the setpoint is reached and/or exceeded, the time-delay postpones the alarm activation (or relay excitation) for a
short period (in seconds). Once this period is elapsed, and if the setpoint is still exceeded, then the alarm is activated or the relay is
energized (in negative security).
Action type
For alarm activation or relay excitation, you can choose the action type: rising or falling action.
• Rising action: the alarm is activated once the measurement goes over the setpoint
• Falling action: the alarm is activated once the measurement goes below the setpoint

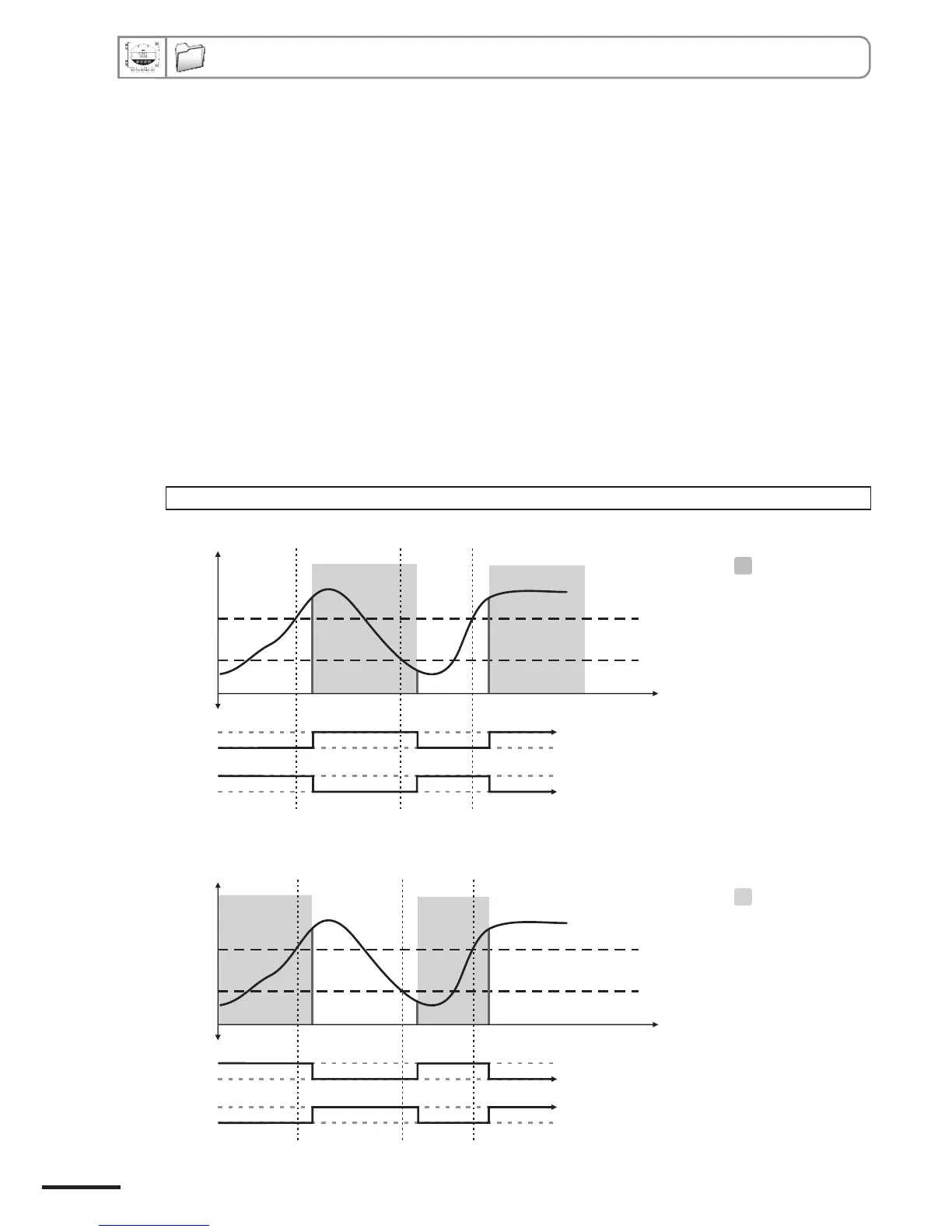

6.e.2 - Available configurations
Setpoinl 1
Setpoint 2
Time
Measurement
Energized
Not energized
Relay status
Negative security
Energized
Not energized
Relay status
Positive security
<T> <T> <T>
<T>
Alarm set
Time-delay
Setpoint 1 > Setpoint 2
Setpoint 2
Setpoint 1
Time
Measurement
Energized
Not energized
Relay status
Negative security
Energized
Not energized
Relay status
Positivee security
<T> <T> <T>
<T>
Alarm set
Time-delay
Setpoint 2 > Setpoint 1
Control mode (or
regulation mode)
=>you can regulate the
measurement within a
range determined by 2
setpoints.
Class 200 transmitter configuration via keypad
Configuration N°1 : 2 setpoints and time-delay activated (Control Mode)
