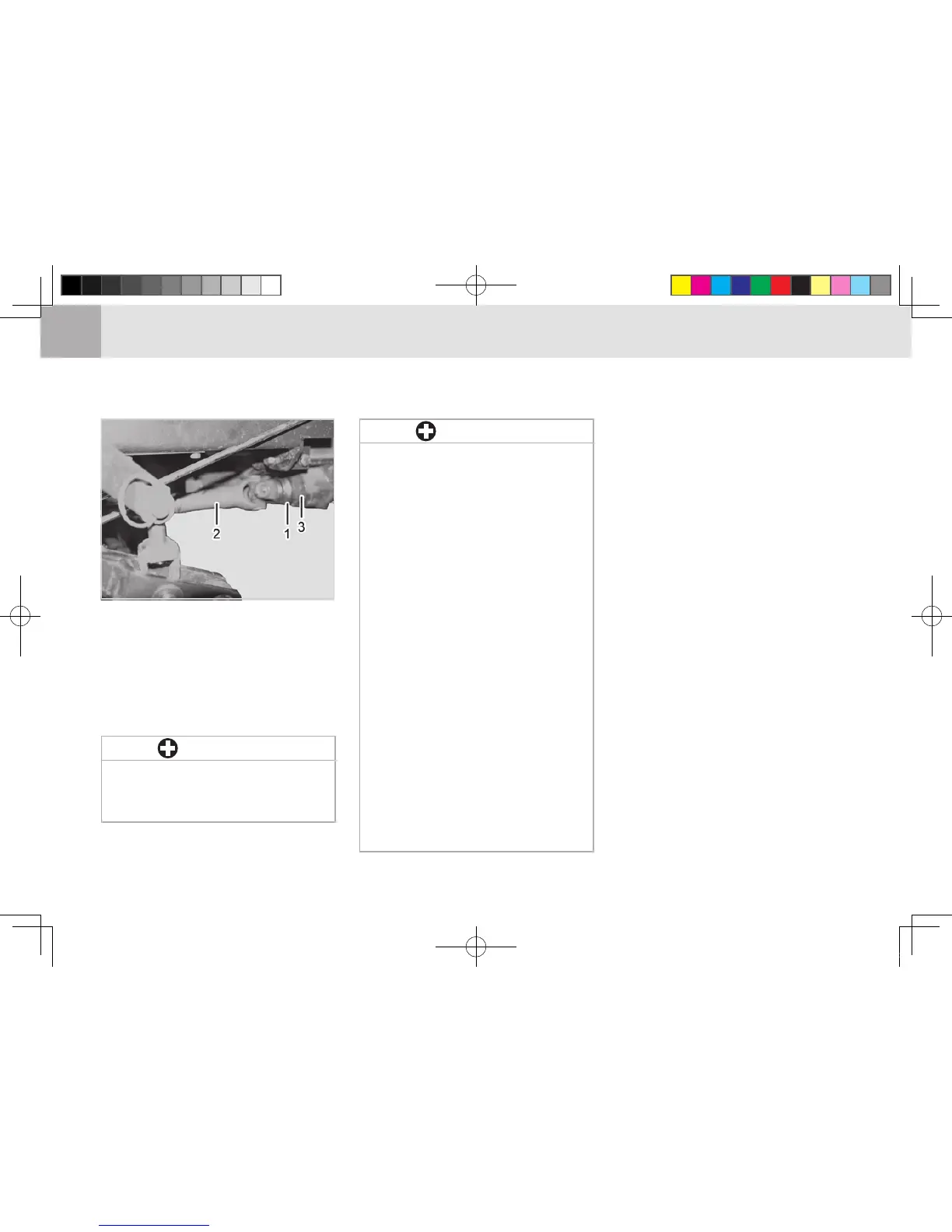

(1) Locking Collar (2) Driveshaft
(3) PTO Shaft
7. Pull the driveshaft locking collar
towards the front of the tractor and
slide the driveshaft onto the PTO
shaft.
10. Remove the implement in the
reverse order of installation and
use the implement support as
necessary.
Consult your local KIOTI Dealer
for selection of the PTO shaft.
When selecting a PTO shaft,
make sure there is a minimum
of 152mm (6 inches) of over-
lap of t he PTO shaft t ubes
when the shaft is extended to
its maximum working length
between the tractor and the
piece of equipment. Also make
sure there is 76mm (3 inches)
of clearance between the shaft
tube ends and the universal
joints at both ends when the
PTO shaft is at its shortest
working length between the
tractor piece of equipment. If
not, DO NOT USE the PTO shaft
and contact a KIOTI dealer.
Move the joint back and forth
to check that its lock pin is
properly seated to the groove
of the PTO shaft.
IMPORTANT
M46O616A
Be sure locking collar is locked
onto PTO shaft prior to operat-
ing the mower deck.
IMPORTANT
