CS2610
(1) Brake Pedal
(A) Free Play

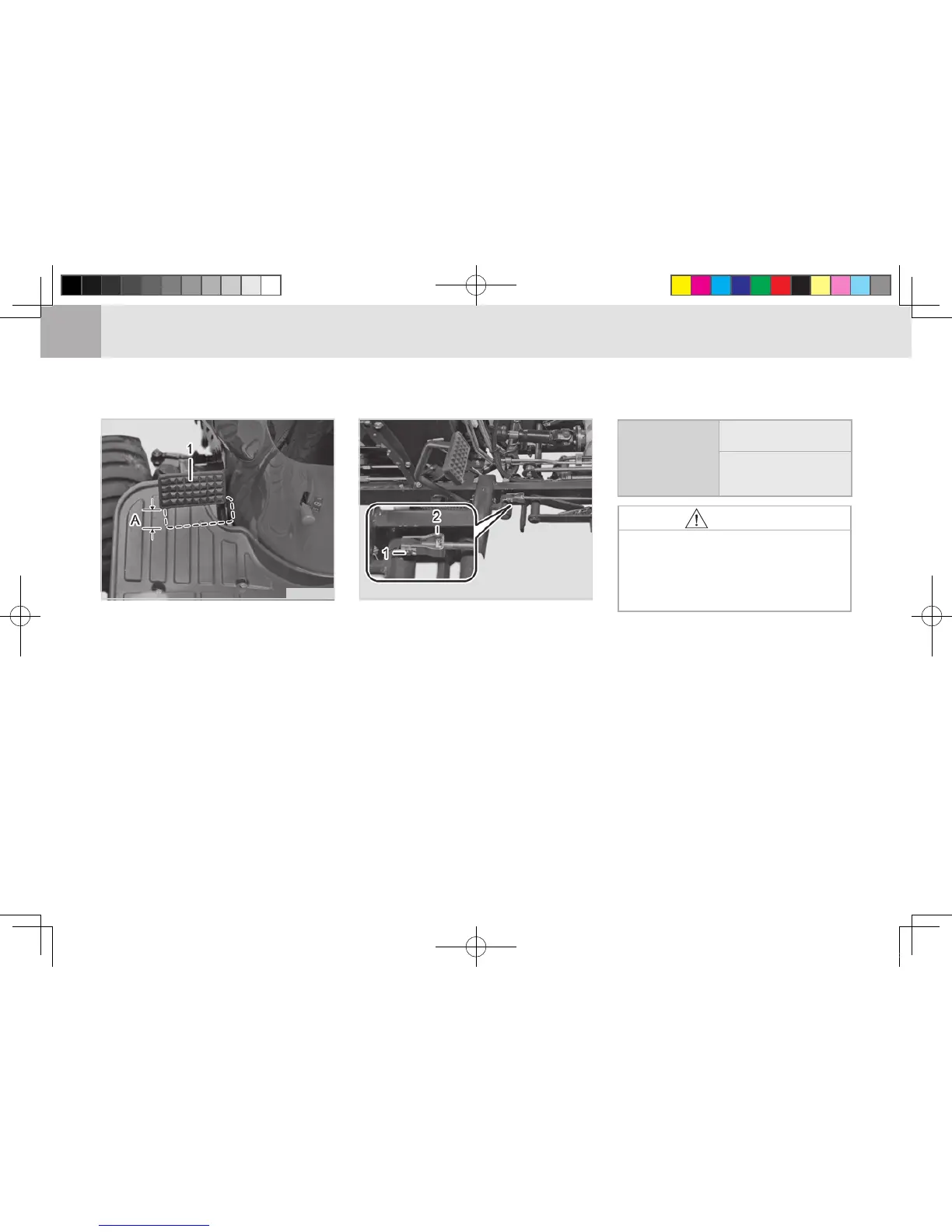

ADJUSTING BRAKE PEDAL (O)
M46O717A
Using the brake pedal for an extend-
ed period of time causes it to play.
This may lead to deterioration of the
braking performance and malfunction
of the braking system.
The brake pedal can be adjusted as
follows:
1. Release the parking brake.
2. Slightly depress the pedals and
measure the free travel at the top
of the pedal stroke.
3. Release the pin and turn the turn
buckle to adjust the brake pedal.
(1) Pin (2) Turn Buckle
M46O718A
Proper brake
pedal free travel
(A)
20 ~ 30 mm
(0.8 ~ 1.2 in.)
Keep the free travel
in the right and left
brake pedals equal
To avoid personal injury:

Stop the engine and chock the
wheels before checking brake
pedal.
CAUTION
M46-EU,AU-07.indd 18 2012-01-18 오후 6:39:47

Kioti CS2610 Specifications

General

Engine Power	24.5 hp
Engine Type	3-cylinder diesel
Transmission	Hydrostatic
Drive	4WD
Gears	Infinite (2-range)
Front tire size	18x8.5-10
PTO Speed	540 RPM
Hydraulic System Type	Open center
3-Point Hitch Category	Category 1
Fuel Capacity	6.6 gal
Rear tire size	26x12.0-12
Turning Radius	8.2 feet
