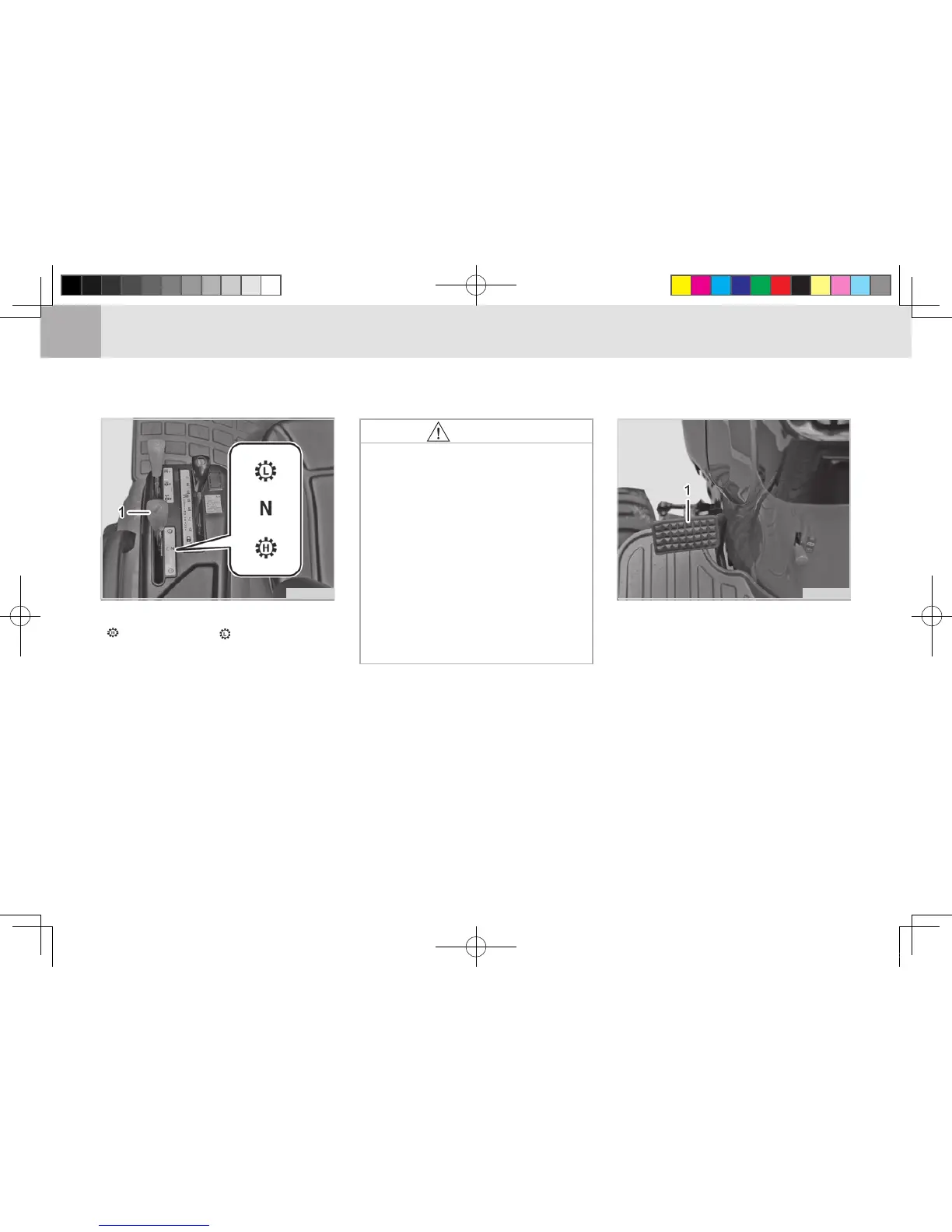

M46O427A
High and low speeds can be select-
ed by the HST range shift lever.
Follow the instruction below if a prob-
lem occurs during shifting this lever:
1. Put the range shift lever into the
neutral position.
2. Depress the pedal slightly to pre-
vent the gears in the transmission
from rotating.
3. Shift the range shift lever into the
desired position with the brake
pedal and front/rear driving pedals
depressed.
(1) HST Range Shift Lever
( ) High Speed ( ) Low Speed
(N) Neutral
HST RANGE GEAR SHIFT LEVER
BRAKE PEDAL
1. The brake pedal is located on the
left side of the tractor and it is to
control braking of the rear wheels.
2. For this tractor, the left and right
brake pedals are not separated.
(1) Brake Pedal
M46O428A
Never put the range shift lever
into the high speed position dur-
ing driving backward as it is dan-
gerous to drive at a high speed.
Reduce the speed before mov-
ing this lever since it is very
dangerous to switch the driv-
ing direction at a high speed.
Make sure to shift the range
gear shift lever to neutral be-
fore engine starting because
there is safety function for
safety starting.
