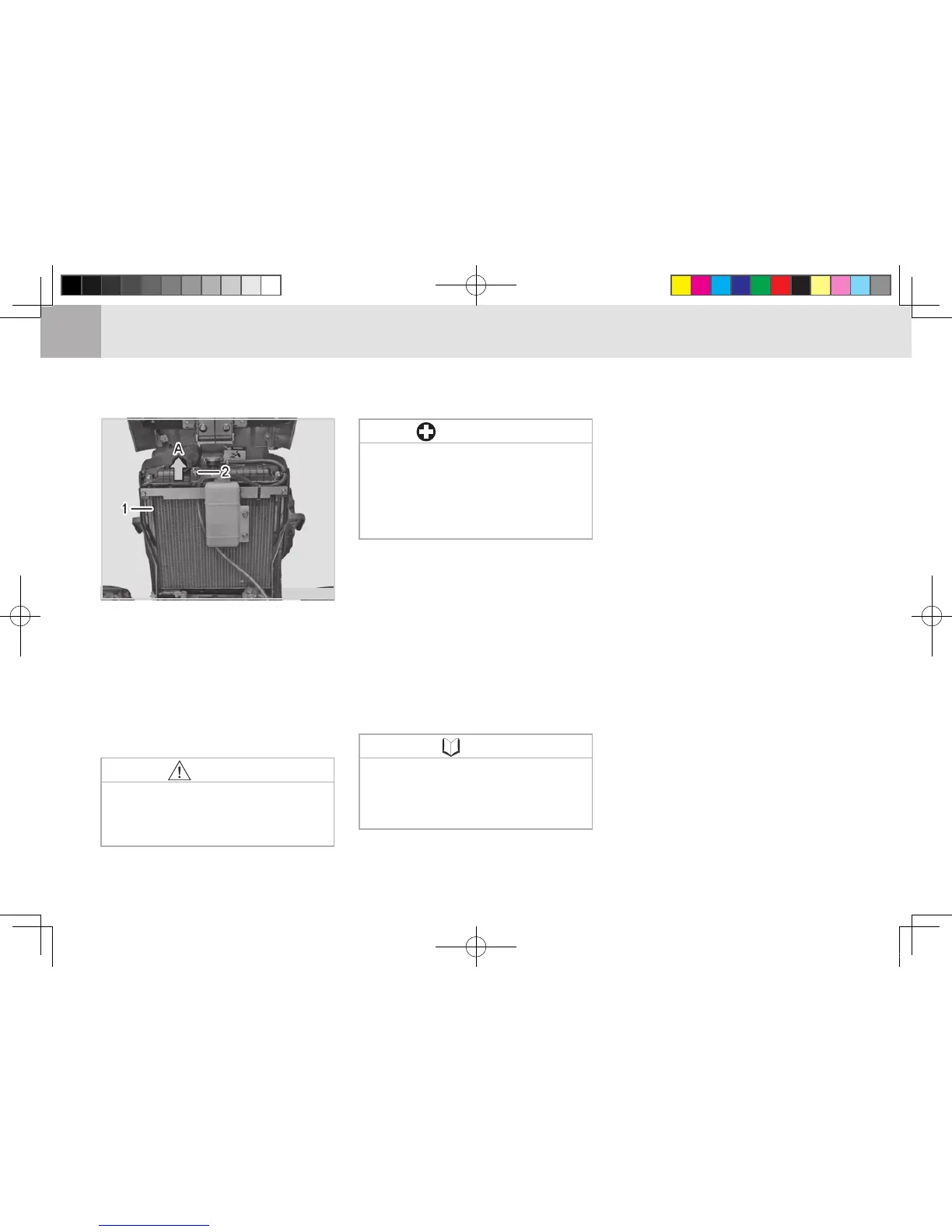

(1) Radiator Screen (2) Bolt
(A) Detach
CLEANING GRILL, RADIATOR SCREEN (G)
To avoid accidents:
Be sure to stop the engine be-
fore removing the screen.
CAUTION
Bonnet Grill and screen must
be clean from debris to pre-
vent engine from overheating
and to allow good air intake
for the air cleaner.
IMPORTANT
1. Check front grill and side screens
to be sure they are clean of debris.
2. Unscrew the bolt, lift out the radia-
tor screen and remove all the for-
eign material.
CHECKING BRAKE PEDALS (H)
1. The brake pedals should be in-
spected for free travel, and smooth
operation.
2. You should adjust these pedals
if an incorrect measurement is
found. (See maintenance code "O"
in this chapter)
When depressing the brake ped-
als separated, both brake pedal
should moved down to the same
depth.
NOTE
M46O710A
CHECKING HEAD LIGHT, HAZ-
ARD LIGHT ETC. (J)
1. Inspect the lights for broken bulbs
and lenses.
2. Replace if broken.
CHECKING GAUGES, METER
AND EASY CHECK LAMPS (I)
1. Inspect the instrument panel for
broken gauge(s), meter(s) and
Easy Check lamps.
2. Replace if broken.
CHECKING SEAT BELT AND
ROPS (K)
1. Always check condition of seat
belt and ROPS attaching hardware
before operating tractor.
2. Replace if damaged.
