MAINTENANCE CODE

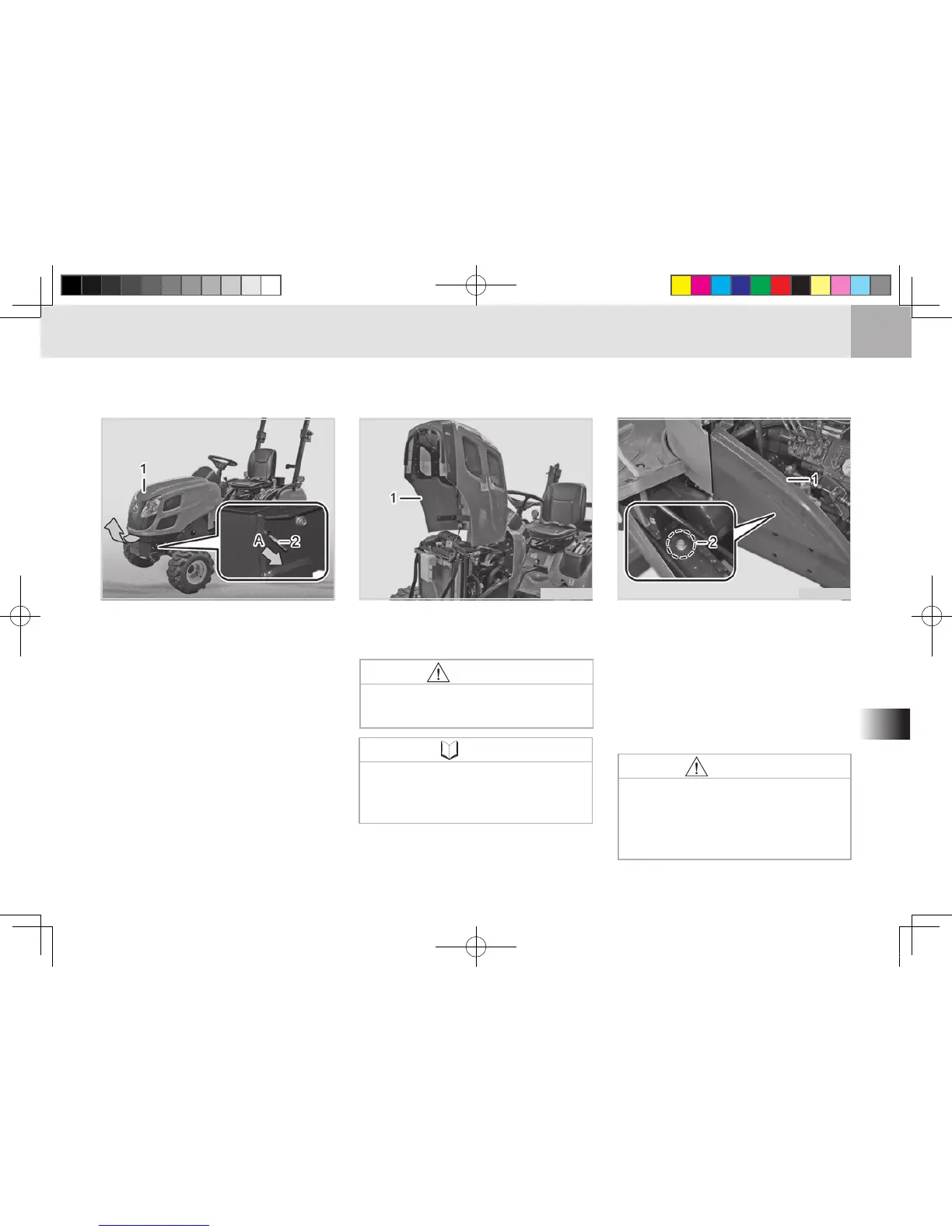

HOW TO DISCONNECT THE HOOD (A)
(1) Hood (2) Handle
(A) Pull
M46O701A
OPENING SIDE COVER (B)
(1) Hood (1) Side Cover (2) Bolt
1. The hood can be opened by pull-
ing down or the handle loosen or
the lower right hand side of tractor.
Push down ward or bonnet to re-
lease latch.
2. To close the hood, press its front
down until it is locked in its position.
3. Do not apply excessive force to the
handle to fix it. The hood can be
damaged.
1. The side covers (LH/RH) should
be removed in order to access the
engine components.
2. Unscrew 2 mounting bolts and re-
move the side cover.
Never open the hood while the
engine is running.
CAUTION
If noise is heard from the hood
during driving, check the rubber
molding and replace it if damaged.
NOTE
Be careful not to trap your fin-
gers when closing the side cover.
Never open the side covers while
the engine is running.
CAUTION
M46O702A M46O703A
