COMPONENT LOCATIONS

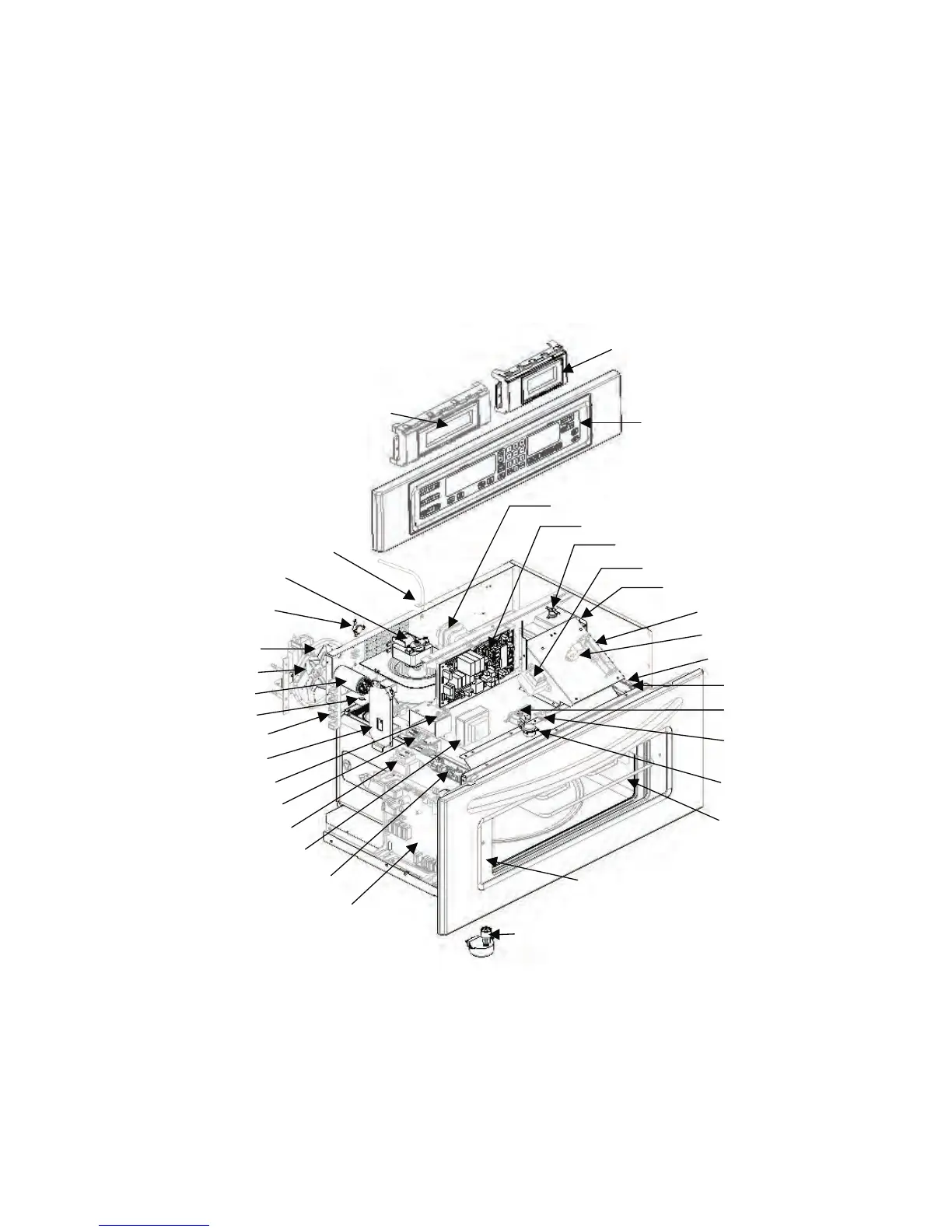

Upper Oven Components
This section instructs you on how to service each component inside the KitchenAid 27˝ & 30˝
Electric Built-In Microwave/Oven Combination. The upper oven components and their locations
are shown below. The lower oven component locations are shown on page 4-27.
COMPONENT ACCESS
Convection Ring Element
Microwave Control Board
Lower Oven Control Board
C
onvection Fan Motor
Turntable Motor
Grill Element
C
avity Light
A
C Line Fuse
Main Filter (L2)
Secondary Interlock Switch
Convection Thermoactuator
Magnetron
M
agnetron Fan Motor
M
onitor Interlock Switch
Primary Interlock Switch
Microwave Light Transformer
C
ontrol Power Transformer
Cavity Thermostat
H
umidity Sensor
Monitor Fuse
Lower Oven Light Transformer
Lower Oven Appliance Manager
Main Filter (L1)
Microwave Door Glass
W
IDE Interface Board
Magnetron Thermostat
M
icrowave Appliance Manager
Convection Thermistor
Inverter
User Interface
Convection Thermostat
Grill Thermostat
AC Terminal Block
