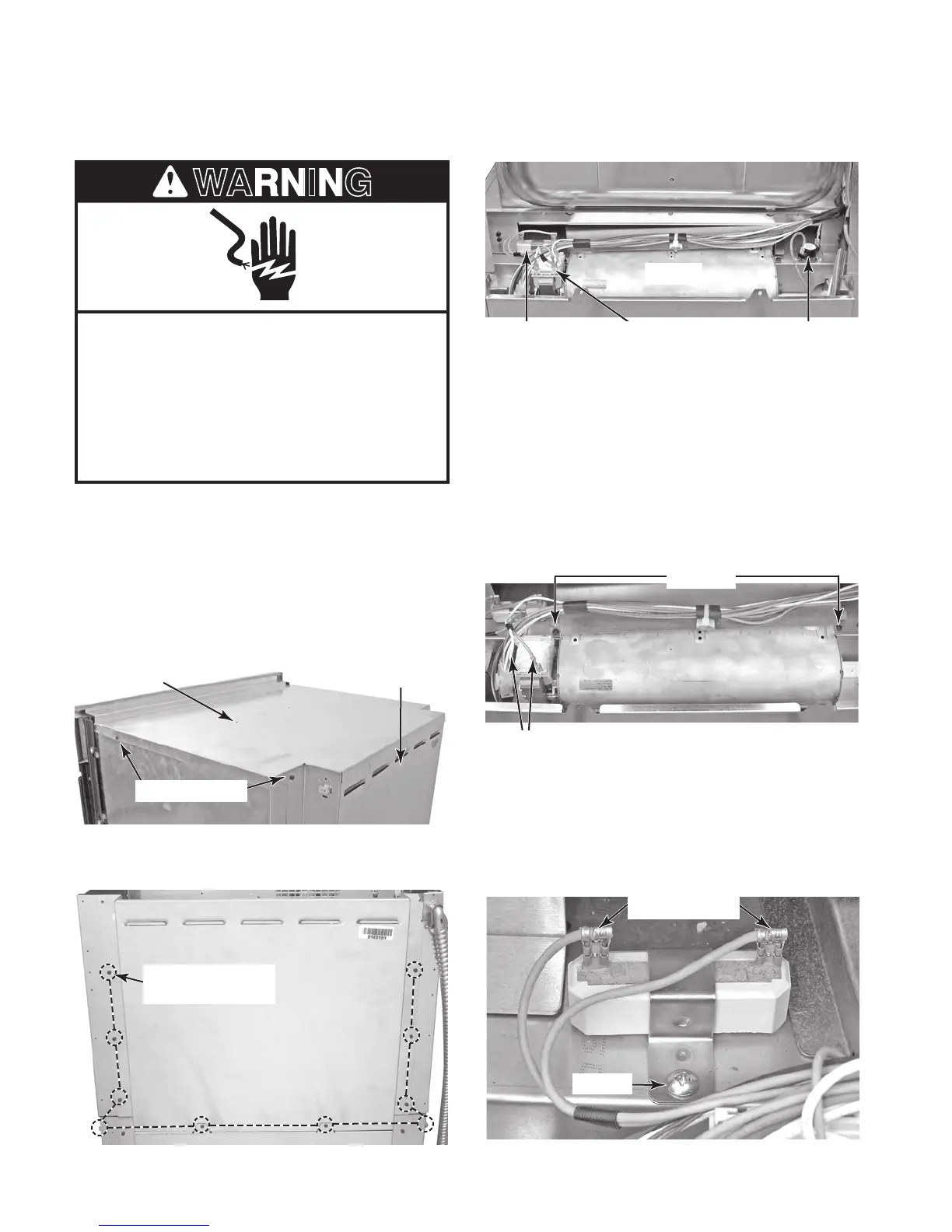

REMOVING THE BLOWER ASSEMBLY, BLOWER SPEED
RESISTOR, AND OVEN SHUTDOWN THERMAL CUTOFF
WARNING
4. Remove the ten screws from the upper rear
cover of the oven and remove the cover.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
6. To remove the blower speed resistor:
a) Disconnect the two gray wires from the
resistor terminals.
b) Remove the screw from the resistor
bracket and remove the resistor.
Upper Rear Cover
(10 Screws)
Top Cover
Screws (2 of 4)
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the four screws from the top cover
and remove the cover.
Upper Rear Cover
Blower Speed
Resistor
Blower Motor Oven Shutdown
TCO
5. To remove the blower assembly:
a) Disconnect the white and gray wires
from the blower motor terminals.
b) Remove the two screws from the blower
brackets.
c) Pull back on the blower assembly while
rotating it upwards and remove the as-
s
embly.
Blower Motor Wires
Screws
Blower Speed
Resistor Wires
Screw
Blower
