REMOVING THE LINE FUSE HOLDER &
LOWER OVEN LIGHT TRANSFORMER
WARNING
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the upper left side cover from the
oven (see page 4-18 for the procedure).

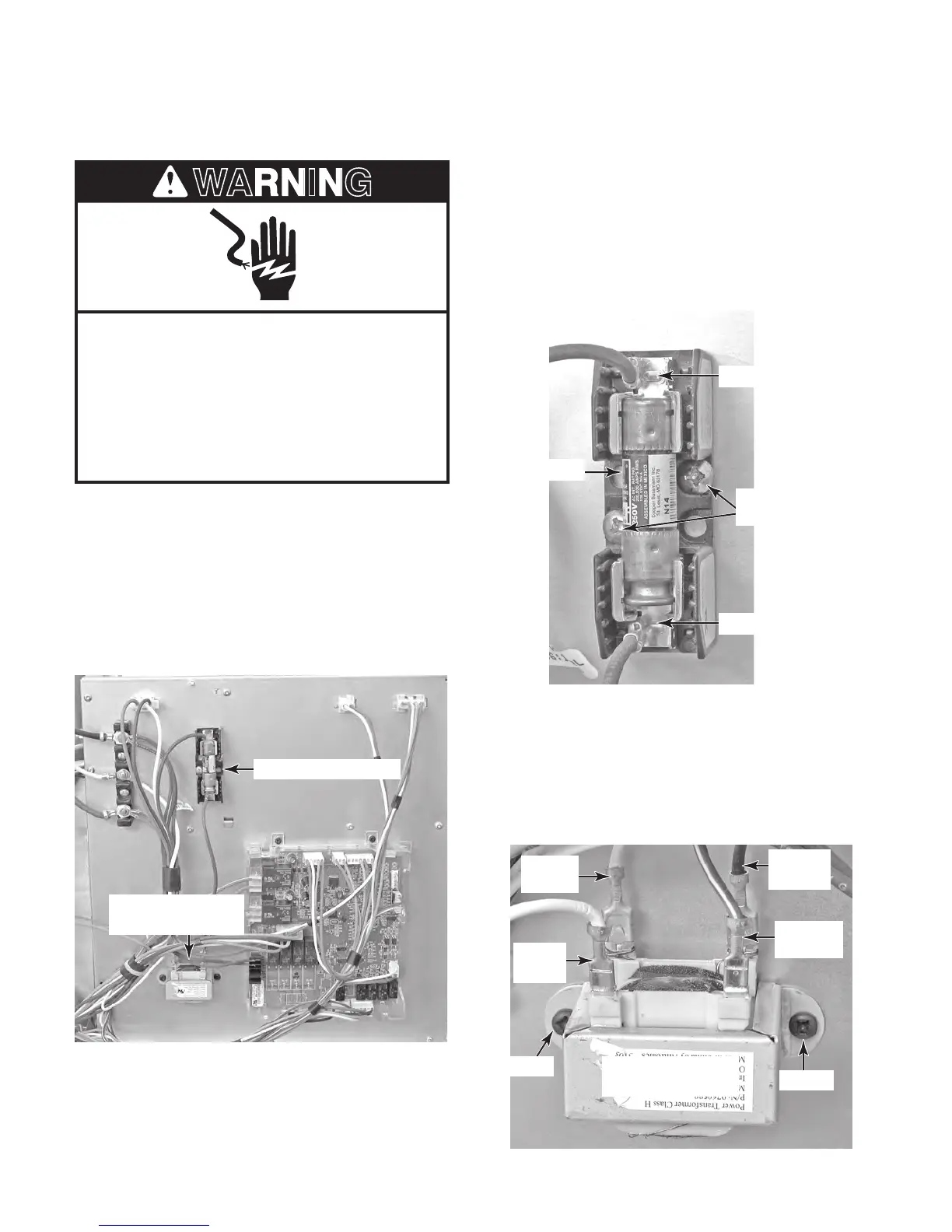

Line Fuse & Holder
Lower Oven Light
Transformer
4. To remove the line fuse and holder:
a) Pull the fuse out of the holder clips.
b) Disconnect the two black wires from
the fuse holder terminals.
c) Remove the two screws from the fuse
holder and remove it.
Line Fuse
Fuse Holder
Screws
BK Wire
BK Wire
5. To remove the lower oven light trans-
former:
a) Disconnect the four wire connectors
from the transformer terminals.
b) Remove the two screws from the trans-
former and remove it.
WH
(WIDE)
BK/WH
(NAR)
BK
(WIDE)
WH
(NAR)
Lower Oven Light
Transformer
Screw
Screw
