REMOVING THE OVEN DOOR GLASS AND HANDLE
1. Open the lower oven door.
2. Raise the two door hinge tabs to the “un-
locked” position.
3. Close the oven door to within several inches,
lift and pull out on the hinges, and remove
them from the oven slots.
4. Place the oven door front side down on a
padded surface to protect the finish.
5. Remove the two screws from each of the
bottom corner glass holders and remove
the holders.
6. To remove the inner oven door glass
panels, lift each of the three glass panels,
and remove them from the door.

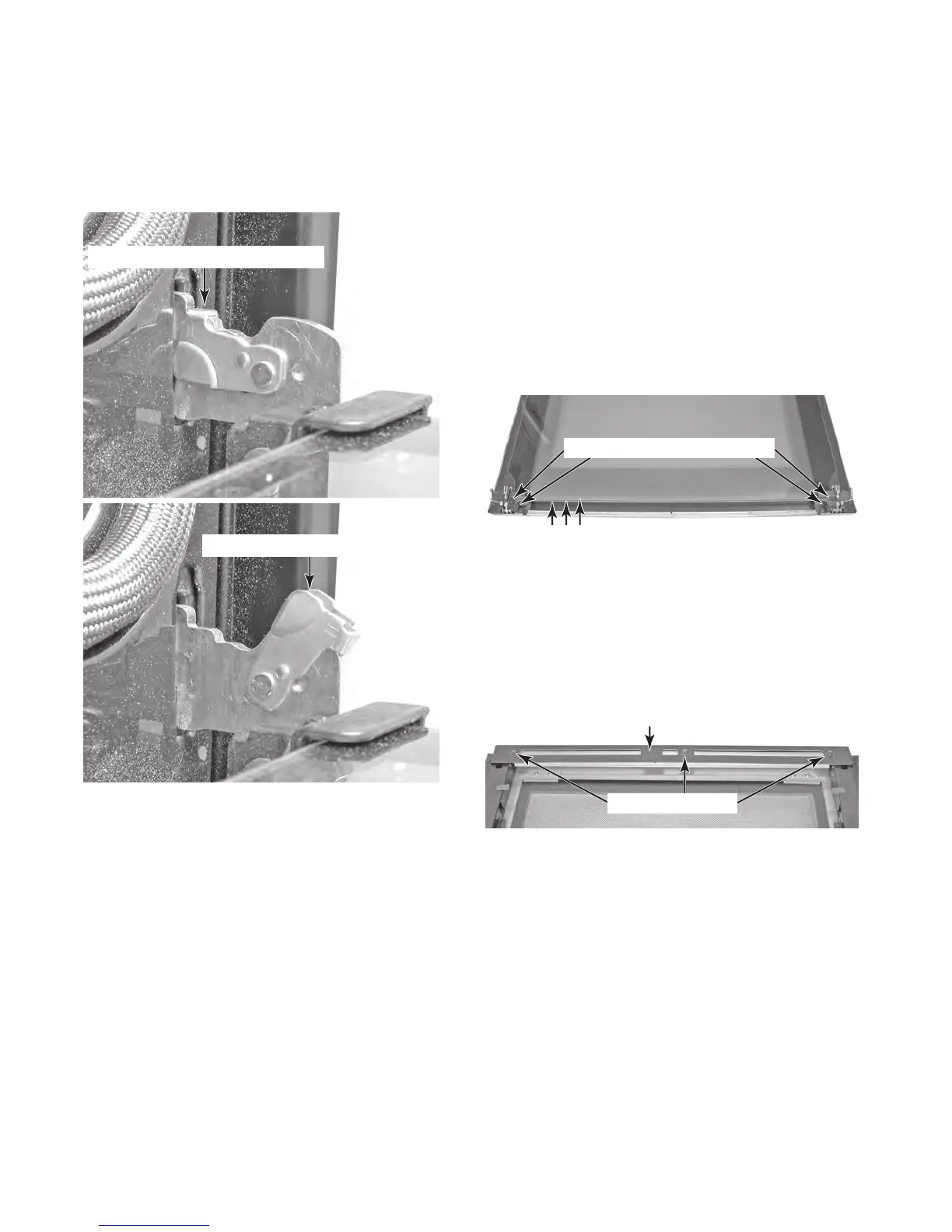

Door Hinge Tab Locked (Down)
Door Hinge Tab Unlocked (Up)
Corner Glass Holder Screws
Inner Glass Panels
7. To remove the door handle and outer
oven door glass:
a) Remove the three inner glass panels
(see step 6).
b) Remove the three screws from the air
vent and remove the vent.
Air Vent Screws
Oven Door Air Vent
