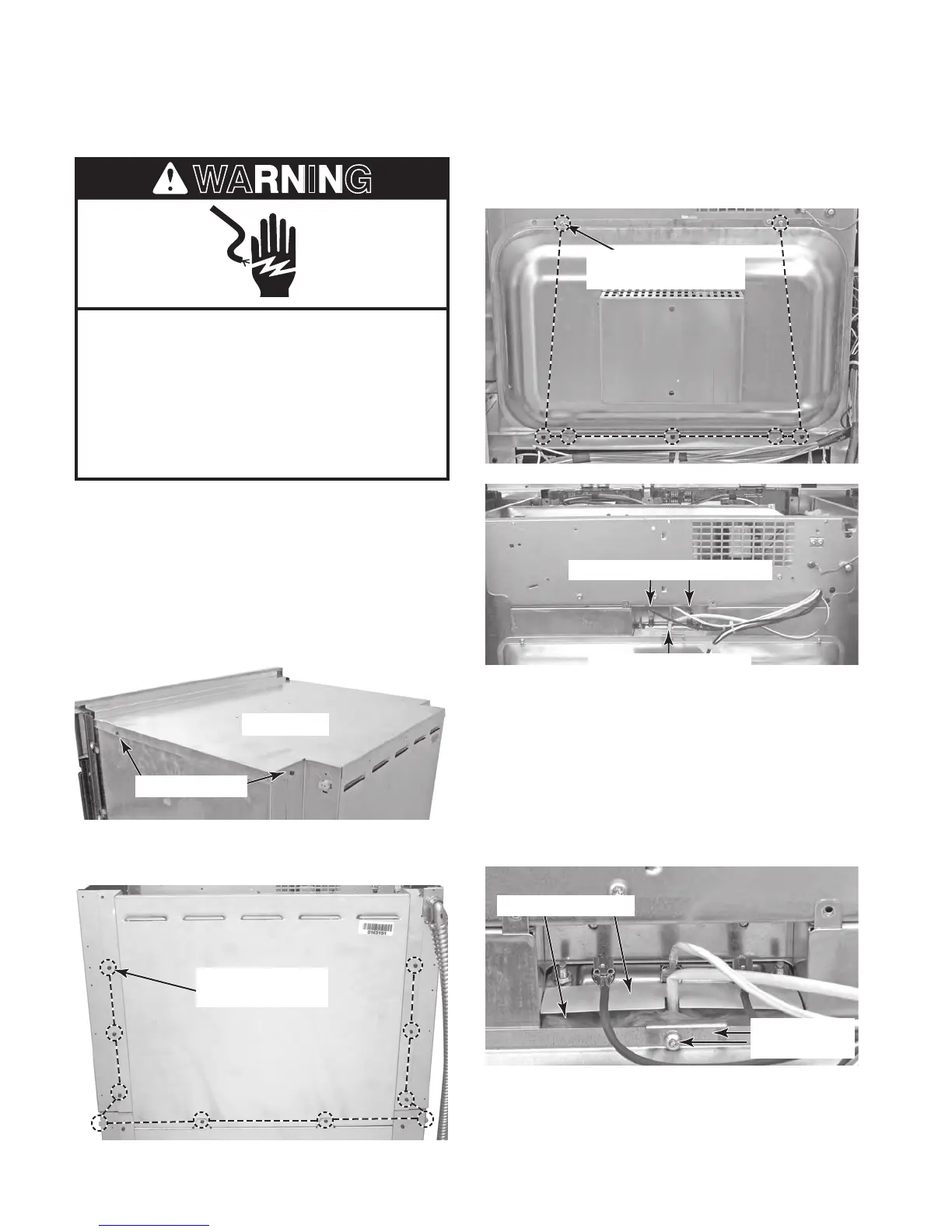

REMOVING THE CONVECTION THERMISTOR
AND GRILL ELEMENT
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Top Cover
Screws (2 of 4)
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the four screws from the top cover
and remove the cover.
4. Remove the ten screws from the upper rear
cover of the oven and remove the cover.
Upper Rear Cover
(10 Screws)
Outer Convect. Cover
(7 Screws)
5. Remove the seven screws from the outer
convection cover and remove the cover.
6. To remove the convection thermistor:
a) Remove the convection thermistor,
insulation, and insulation cover from
the thermistor.
b) Remove the screw from the convection
thermistor clip and remove the clip and
thermistor.
Convection Thermistor
MW Grill Element Terminals
Conv. Therm.
Clip Screw
Insulation & Cover
