c) Open the microwave oven door.
d) Twist the front grill element support 90°
in either direction and remove it from
the cavity slot.
e) Lower the front of the grill element,
pull the element terminals out the back
holes of the cavity, and remove the ele-
m
ent.
c) Disconnect the convection thermistor
connector from appliance manager con-
n
ector P6 and remove the thermistor.
REASSEMBLY NOTE: Install the convection
thermistor and clip first, then place the insulation
and insulation cover over the thermistor.
7. To remove the grill element:
a) From the rear of the oven, disconnect
the three wires from the grill element
terminals.
b) Remove the two nuts from the grill ele-
m
ent studs.

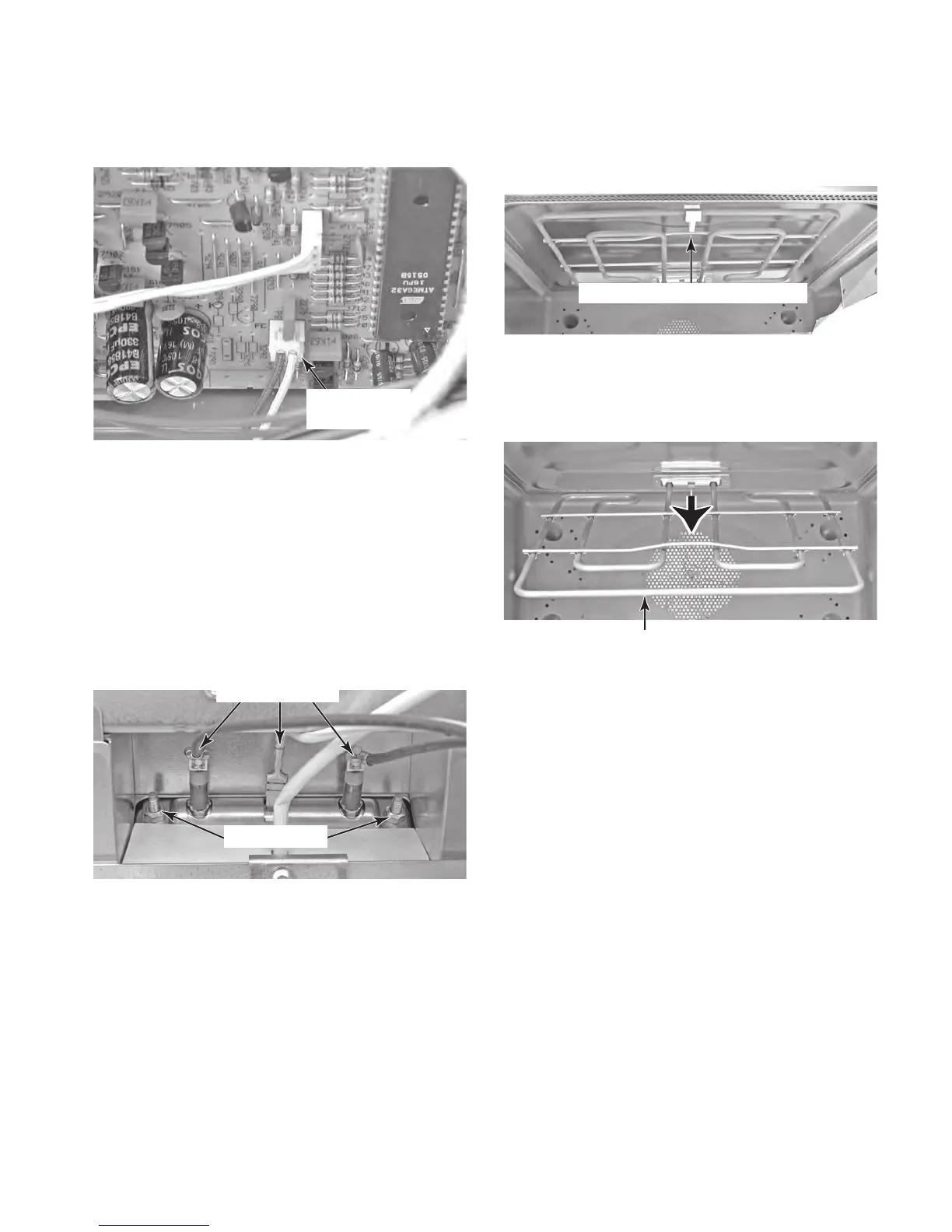

Conv. Therm.
Connector P6
MW Grill Nuts
MW Grill Wires
Front MW Grill Element Support
MW Grill Element
To Next Page
