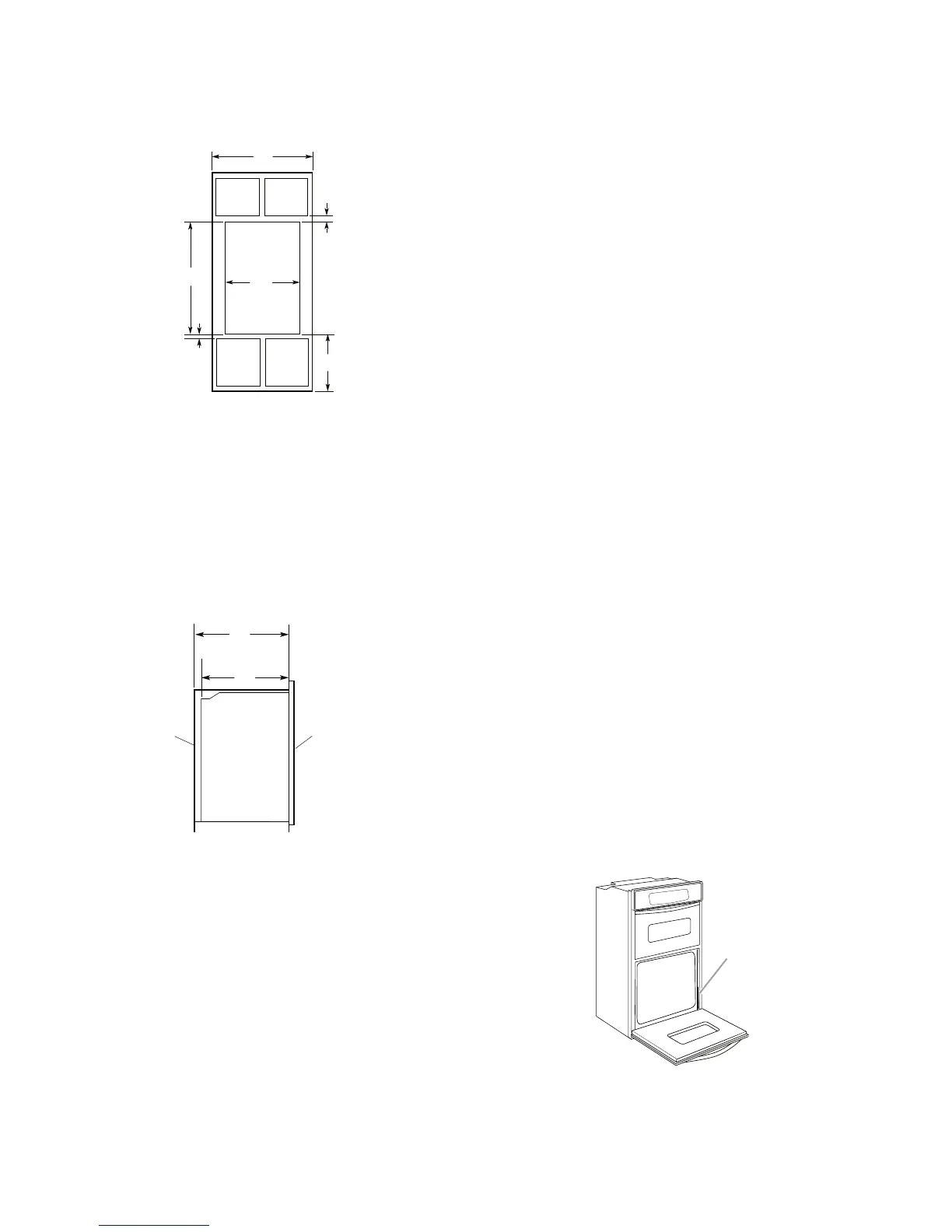

Cabinet Dimensions
27˝ (68.6 cm) and 30˝ (76.2 cm) Ovens
27˝ (68.6 cm) models
A. 27˝ (68.6 cm) min. cabinet
wid
th
B. 1˝ (2.5 cm) top of cutout to
bottom of u
pper cabinet door
C. 19-1/4˝
(48.9 cm) bottom of
cutout to floor
D
. 25-1/2˝
(64.8 cm) cutout width
E. 1-1/2˝ (3.
8 cm) min. bottom of
cutout to top of cabinet door
F. 41-1/4˝
(104.8 cm) cutout height
3
0˝ (76.2 cm) models
A.
˝ (76.2 cm) min. cabinet
width
B
. 1˝ (2.5 cm) top of cutout to
b
ottom of upper cabinet door
C. 19-1/4
3
0
˝ (48.9 cm) bottom of
cutout to floor
D
. 28-1/2˝ (72.4 cm) cutout width
E
. 1-1/2˝
(3.8 cm) min. bottom of
cutout to top of cabinet door
F. 41-1/4˝
(104.8 cm) cutout height
A
B
C
D
E
F
Cabinet Side View
A
. Model/serial number plate
A
A. 23-1/4˝ (59.1 cm) min. cutout depth
B
. 23˝ (58.4 cm) recessed o
ven depth
C. Oven fro
nt
D. Recessed oven
E. Cabinet
A
B
C
D
E
ELECTRICAL REQUIREMENTS
If codes permit and a separate ground wire is
used, it is recommended that a qualified elec-
t
rical installer determine that the ground path
and wire gauge are in accordance with local
codes.
It is not recommended to ground to a gas pipe.
Check with a qualified electrical installer if you
are not sure the oven is properly grounded.
It is not recommended to have a fuse in the
neutral or ground circuit.
This oven must be connected to a grounded
metal, permanent wiring system.
Be sure that the electrical connection and
wire size are adequate and in conformance
with the National Electrical Code, ANSI/NFPA
70-latest edition or CSA Standards C22.1-94,
Canadian Electrical Code, Part 1 and C22.2
No. O-M91-latest edition, and all local codes
and ordinances.
A copy of the above code standards can be
obtained from:
National Fire Protection Association
One Batterymarch Park
Quincy, MA 02269
CSA International
8501 East Pleasant Valley Road
Cleveland, OH 44131-5575
Electrical Connection
To properly install your oven, you must deter-
m
ine the type of electrical connection you will
be using and follow the instructions provided
for it here.
Oven must be connected to the proper elec-
t
rical voltage and frequency as specified on
the model/serial number rating plate. The
model/serial number rating plate is located
at the bottom of the right-hand mounting rail.
See the following illustration.
•
