5-13
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
MEAT PROBE JACK
Refer to page 4-34 for the procedure for ac-
cessing the meat probe jack.
NOTE: The meat probe jack will be tested at the
appliance manager board (see page 4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to wire
connectors P2-6 (WH) and P2-5 (OR). The
meter should indicate approximately 78 Ω
@
60°F
(15.6°C).
BLOWER MOTOR
Refer to page 4-36 for the procedure for ac-
cessing the blower motor.
NOTE: The blower motor will be tested at the
appliance manager board (see page 4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to wire
connector P9-2 (GY) and the neutral (WH)
wire at the AC terminal block. The meter
should indicate between 181 and 240 Ω.

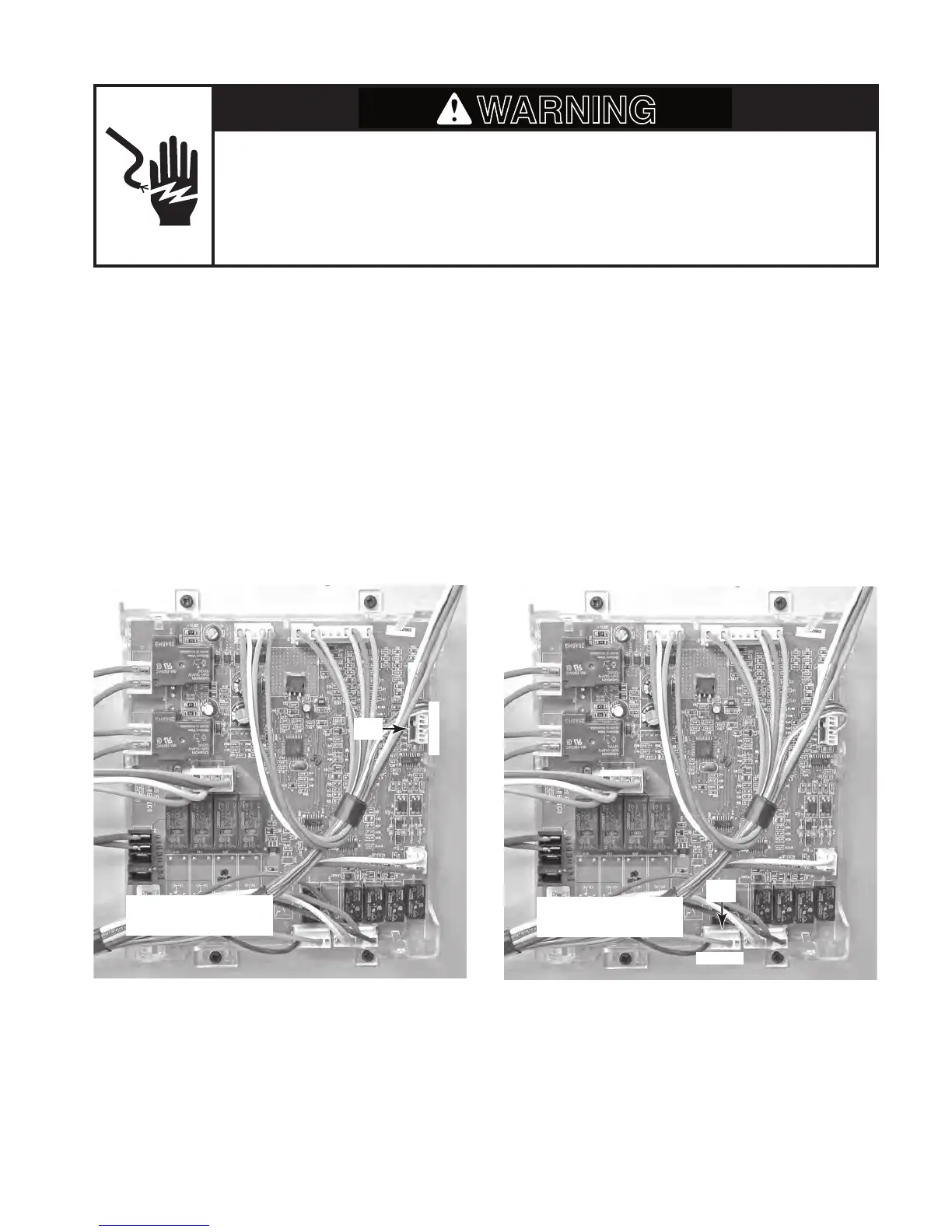

P2
1 2 3 4 5 6
Lower Oven
Appliance Manager
1 2 3 4 5
Lower Oven
Appliance Manager
P9
