4-32

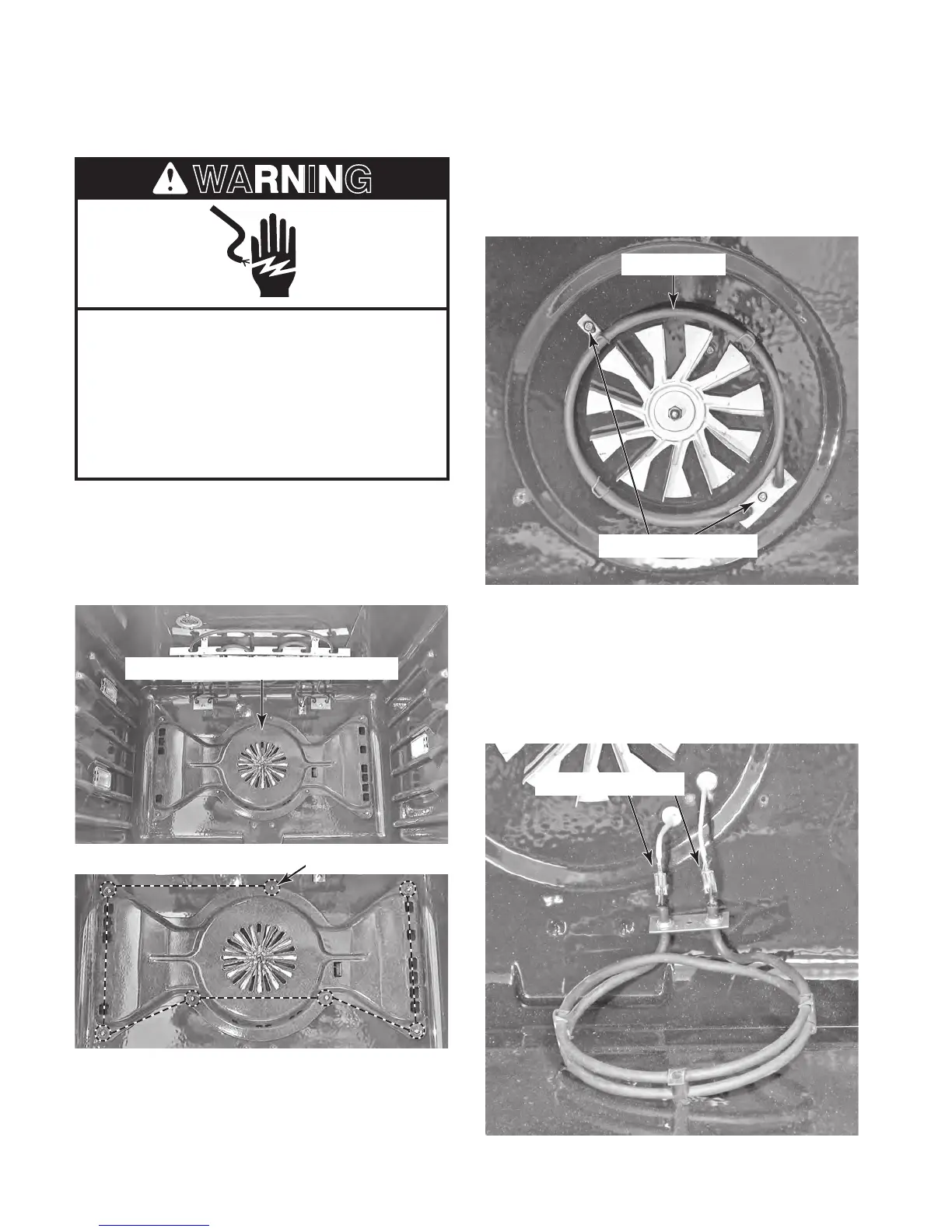

REMOVING THE CONVECTION RING ELEMENT AND
THE CONVECTION FAN MOTOR
4. To remove the convection ring element:
a) Remove the two screws from the ele-
ment brackets.
1. Unplug oven or disconnect power.
2. Open the lower oven door.
3. Remove the seven screws from the con-
vection cover and remove the cover.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Convection Ring Element & Fan Motor
7 Cover Screws
Ring Element Screws
Ring Element
b) Pull the convection ring element forward
far enough to access the two wire con-
n
ectors.
c) Disconnect the wire connectors from
the convection ring element terminals
and remove the element.
Ring Element Wires
To Next Page
