4-18
REMOVING THE LOWER OVEN APPLIANCE MANAGER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the four screws from the top cover
and remove the cover.
4. Remove the eight screws from the inner
cover and remove the cover.

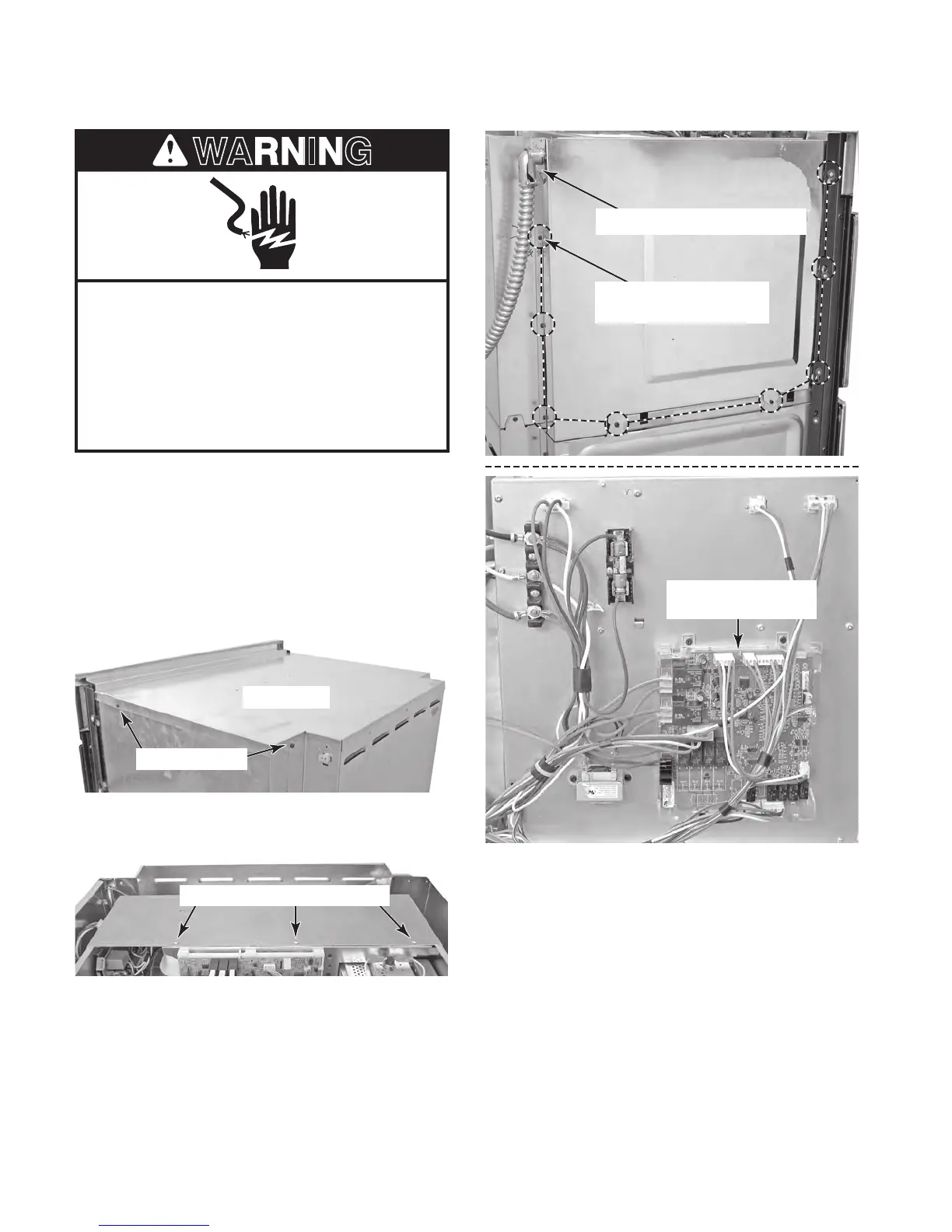

Inner Cover Screws (3 of 8)
Top Cover
Screws (2 of 4)
5. Unhook and remove the AC wiring conduit
connector from the back of the upper left
side cover (see the top right photo).
6. Remove the eight screws from the upper
left side cover and remove the cover.
Upper Left Side Cover
(8 Screws)
Lower Oven
Appliance Manager
AC Wiring Conduit Connector
To Next Page
