LOWER OVEN COMPONENTS
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
DOOR LATCH ASSEMBLY
Refer to page 4-28 for the procedure for ac-
cessing the door latch assembly.
NOTE: The door latch assembly components
will be tested at the appliance manager board
(see page 4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1K scale.
3. Touch the ohmmeter test leads to the wire
connectors. The meter should indicate as
shown below:
Latch
Switch: P1-4 (TN) and P1-5 (BR).
The meter should indicate an open circuit
(infinite) with door unlocked, and a closed
circuit (0 Ω) with the door locked.
Door
Switch: P1-7 (OR) and P1-5 (BR).
The meter should indicate an open circuit
(infinite) with door unlocked, and a closed
circuit (0 Ω) with the door locked.
L
atch Motor: P8-5 (YL) and the neutral (WH)
stud on the AC terminal block. The meter
should indicate approximately 2450 Ω.

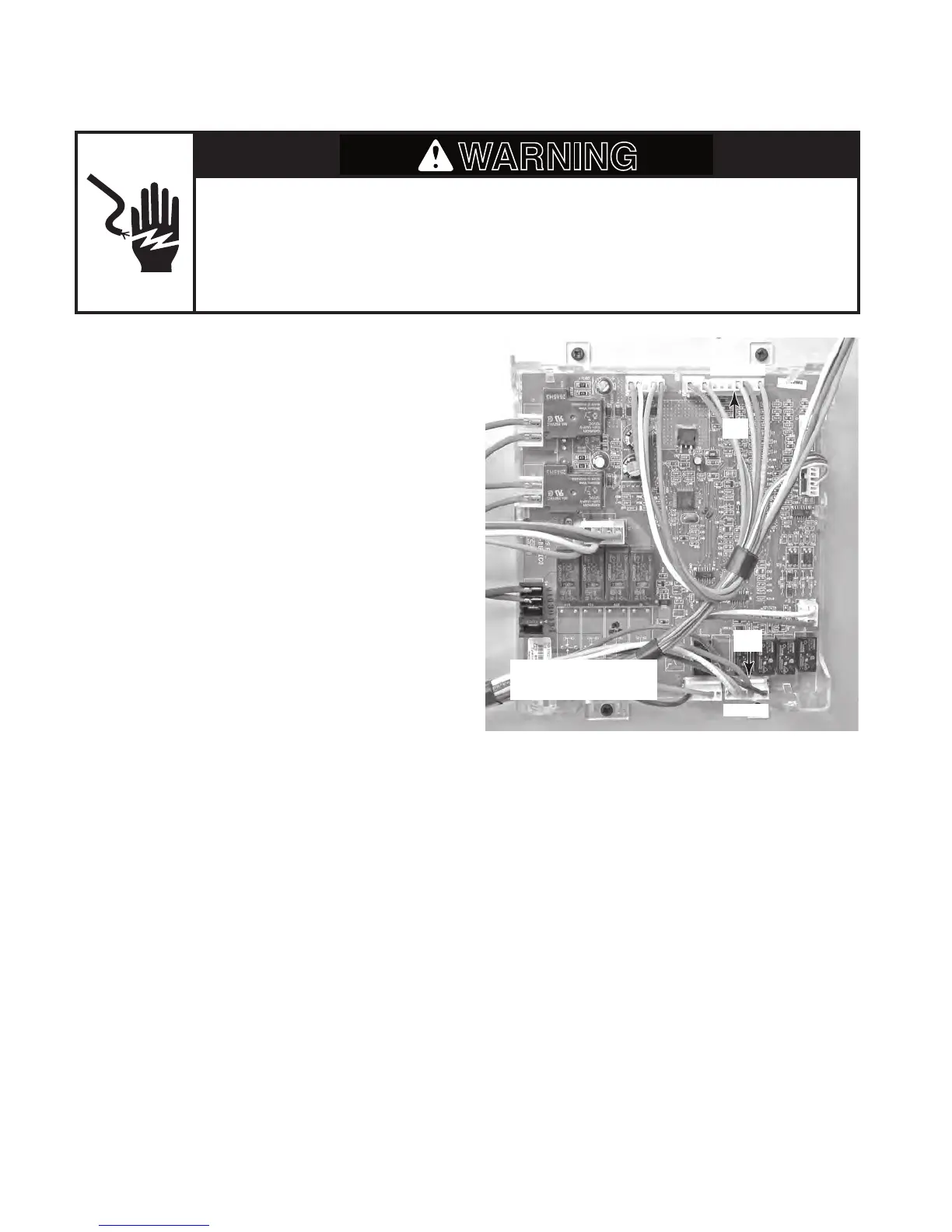

Lower Oven
Appliance Manager
P8
P1
1 2 3 4 5 6 7
6 5 4 3 2 1
To Next Page
