4-22

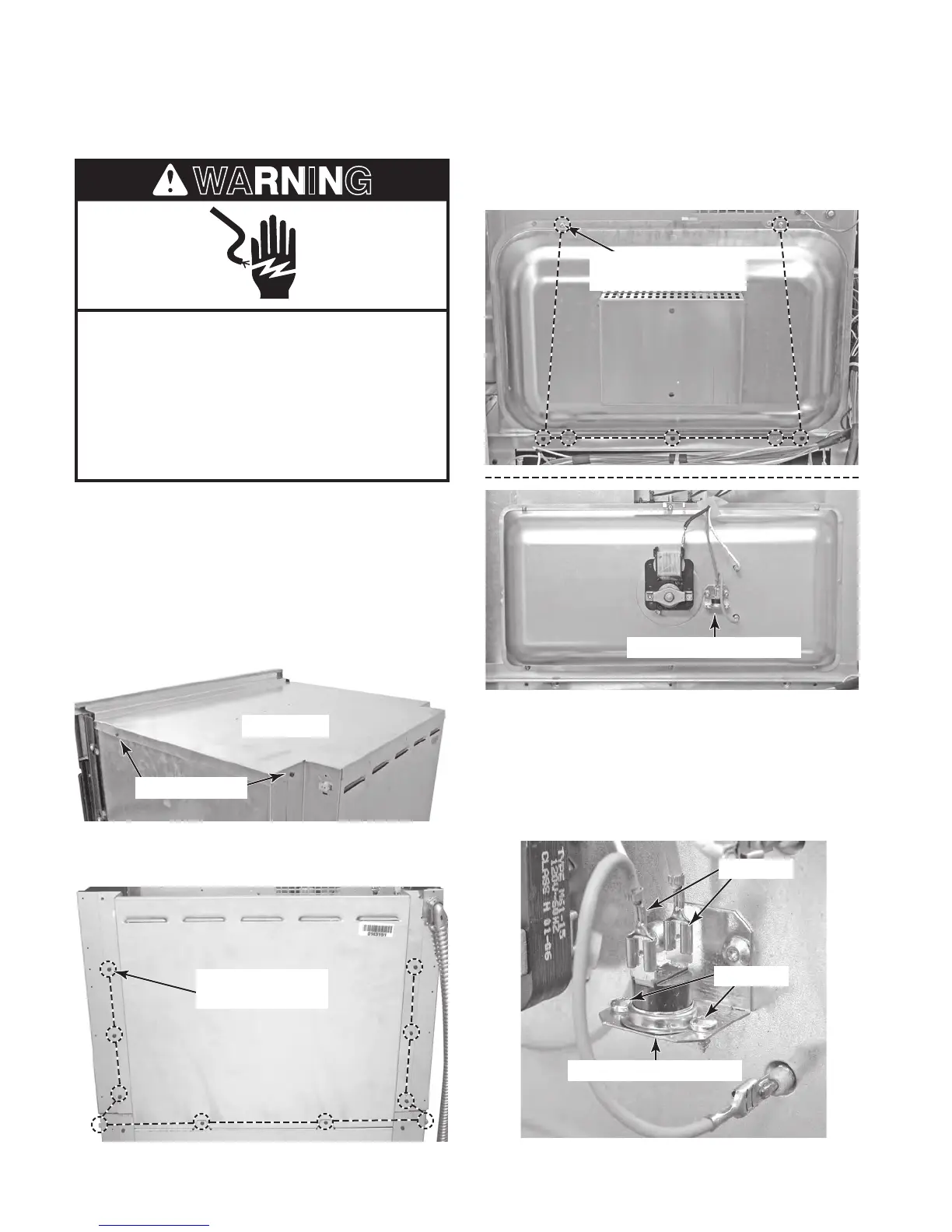

REMOVING THE CONVECTION THERMOSTAT,
RING ELEMENT, AND FAN MOTOR
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Top Cover
Screws (2 of 4)
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the four screws from the top cover
and remove the cover.
4. Remove the ten screws from the upper rear
cover of the oven and remove the cover.
Upper Rear Cover
(10 Screws)
Outer Convect. Cover
(7 Screws)
5. Remove the seven screws from the outer
convection cover and remove the cover.
6. To remove the convection thermostat:
a) Disconnect the two blue wires from the
terminals.
b) Remove the two screws from the ther-
m
ostat.
Convection Thermostat
Convection Thermostat
BU Wires
Screws
To Next Page
