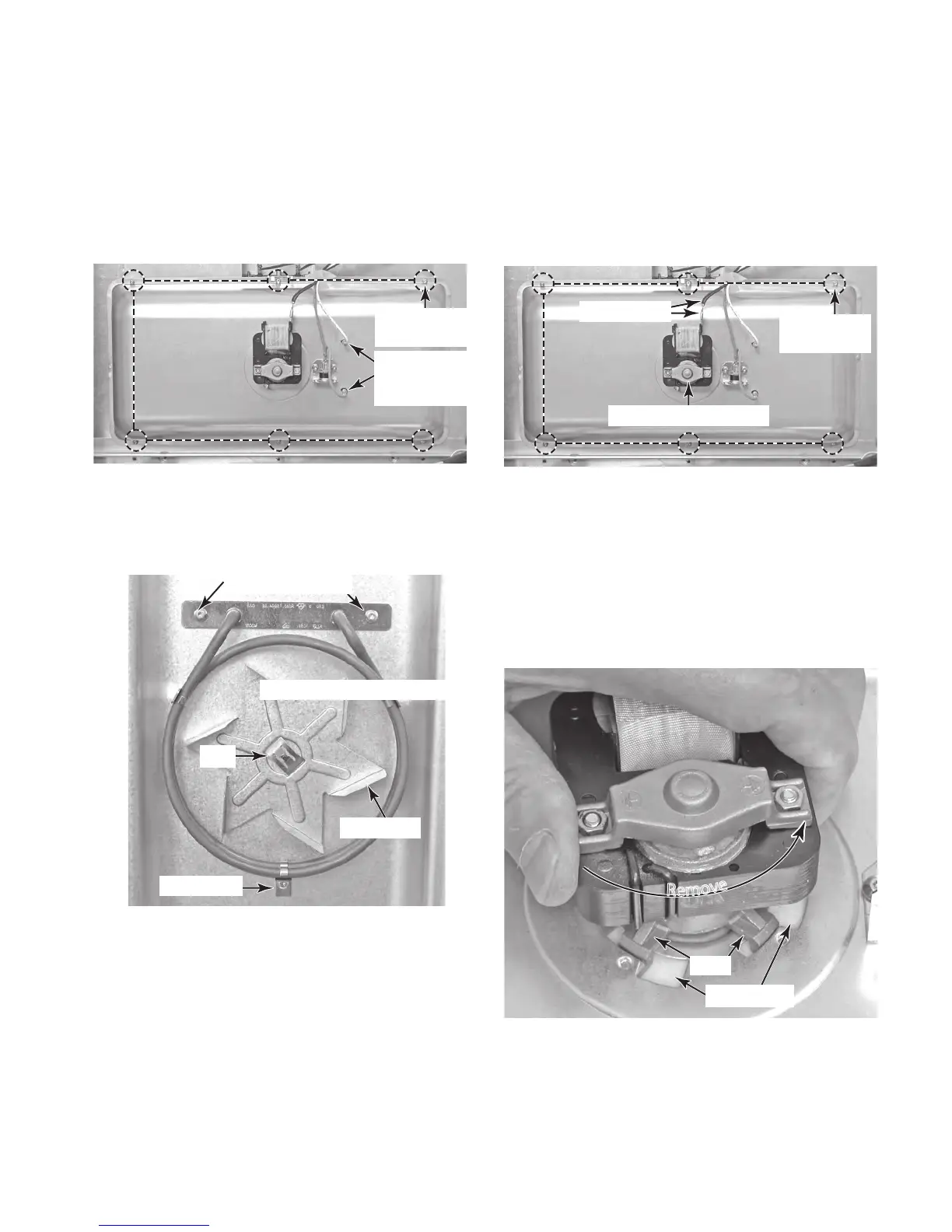

7. To remove the convection ring element:
a) Disconnect the two wires from the ring
element terminals.
b) Remove the six screws, (including the
cavity thermostat clip), from the inner
convection cover, remove the cover,
and turn it over.
8. To remove the convection fan motor:
a) Disconnect the two wires from the fan
motor terminals.
b) Remove the six screws, (including the
cavity thermostat clip), from the inner
convection cover, remove the cover,
and turn it over.
Clip Screw
Bracket Screws
Convection Fan Motor
Inner Cover
Screws (6)
c) Pry out on the clip center tabs (see the
lower left photo), and remove the clip,
the fan blade, and flat washer (behind
blade) from the fan motor shaft.
d) Turn the convection fan motor so that
the tabs are in the large slots of the
cover and remove the motor from the
cover.
Clip
Convection Ring Element
Fan Blade
Large Slots
Tabs
R
e
m
o
v
e
Motor Wires
c) Remove the two screws from the ring
element bracket and the screw from
the clip, and remove the element from
the cover.
Inner Cover
Screws (6)
Convection
Ring Element
Wires
