KitchenAid KEMS308S - Lower Oven Component Locations

4-27
Halogen Lights
Blower Motor
D
oor Latch Assembly
Lower Temperature Sensor
(On Oven Liner)
Halogen Light
Blower
Meat Probe
D
oor Gasket
Oven Door Glass
IN/OUT Broil Element
Hidden Bake Element
C
onvection Fan Motor
C
onvection
Ring Element
Blower Speed Resistor
Oven Shutdown Thermal
Cutoff (non-resettable)

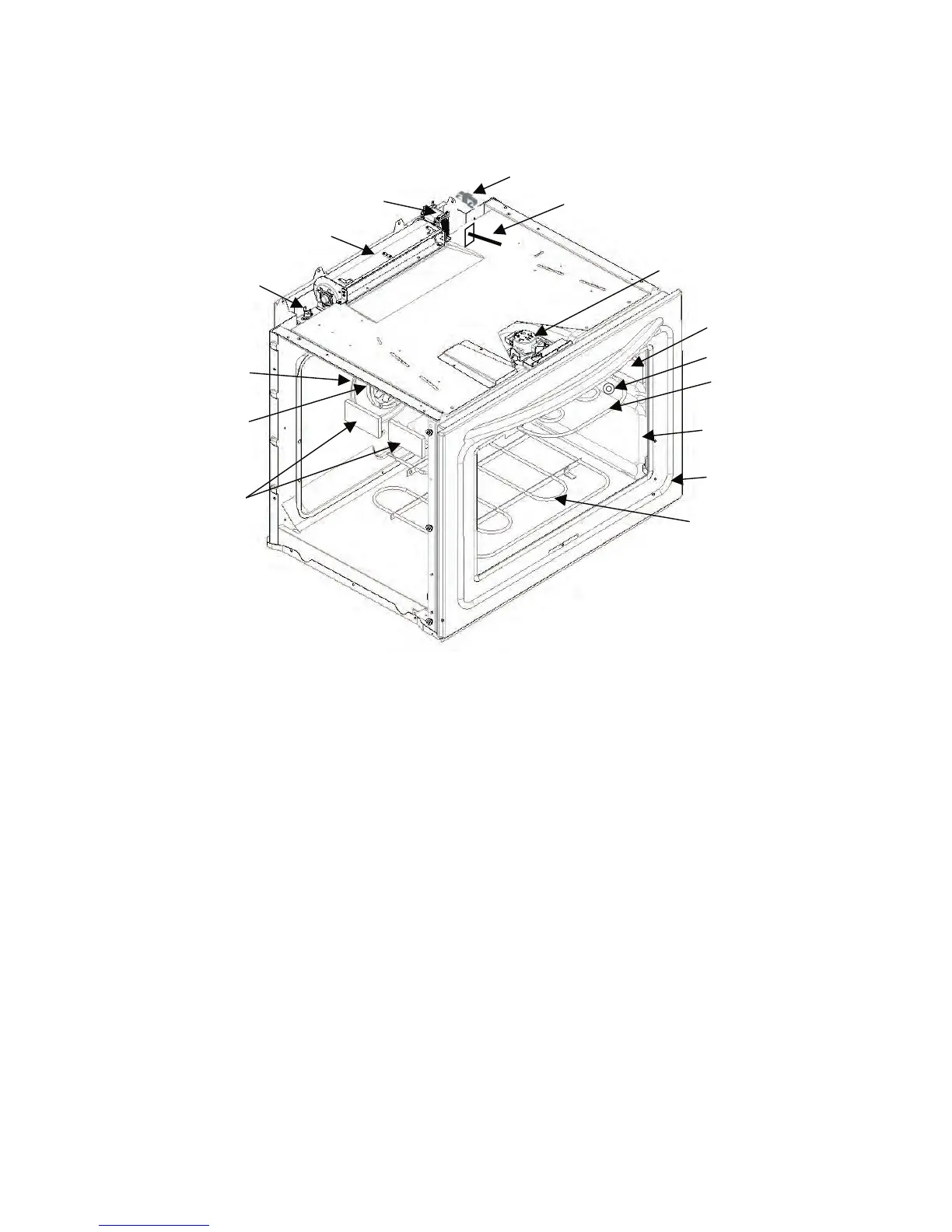

Lower Oven Components
