KitchenAid KEMS308S User Manual

5-11
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
WARNING

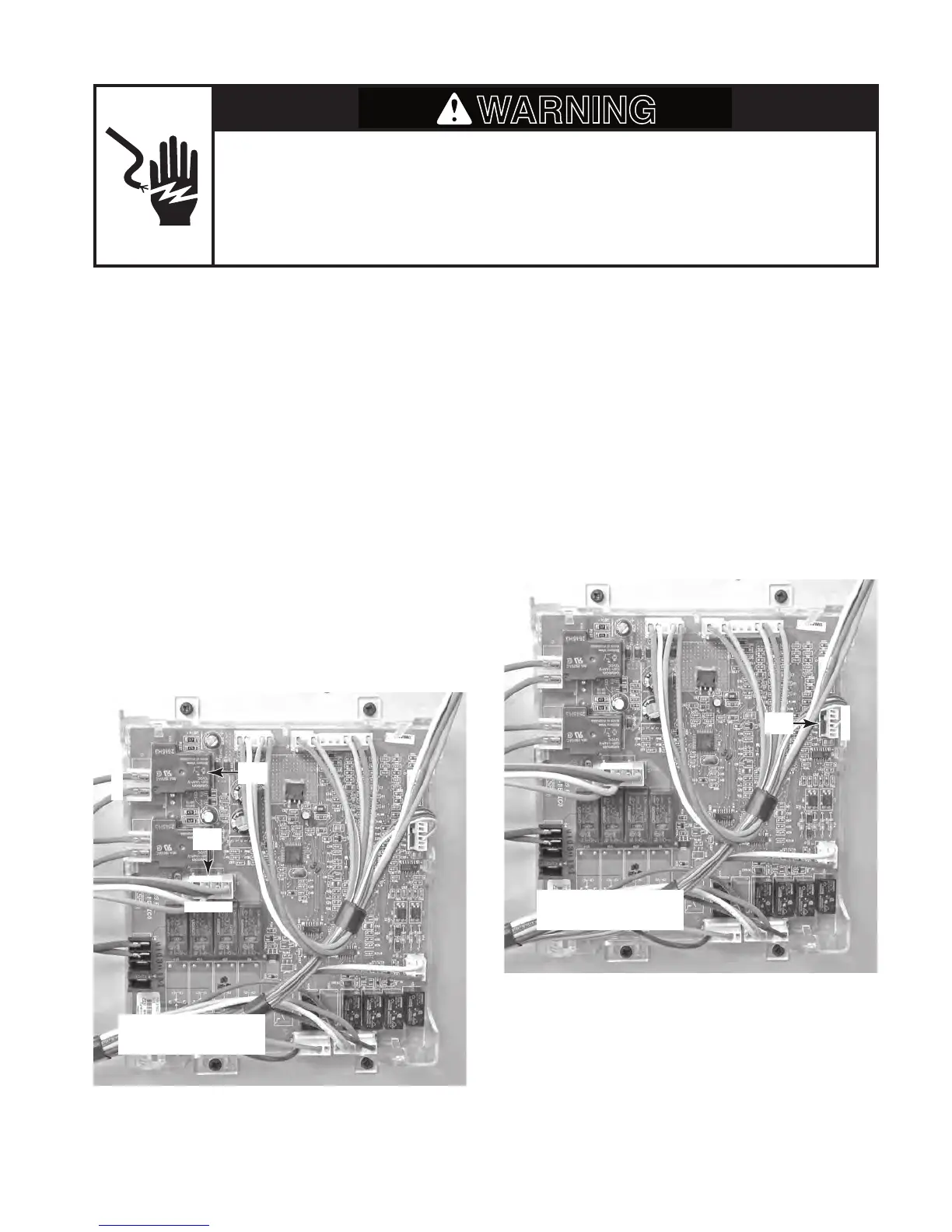

BROIL ELEMENT
Refer to page 4-30 for the procedure for ac-
cessing the broil element.
NOTE: The broil element will be tested at the
appliance manager board (see page 4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1 scale.
3. Touch the ohmmeter test leads to the wire
connectors. The meter should indicate as
shown below:
Inner
Element: T3-4 (OR) and T1-1 (RD).
The meter should indicate between 31 and
36 Ω.
Outer
Element: T3-1 (BU) and T2-2 (R/W).
The meter should indicate between 53 and
59 Ω.
Lower Oven
Appliance Manager
T3
OVEN TEMPERATURE SENSOR
Refer to page 4-30 for the procedure for ac-
cessing the oven temperature sensor.
NOTE: The oven temperature sensor will be
tested at the appliance manager board (see
page 4-18).
1. Unplug oven or disconnect power.
2. Set the ohmmeter to the R x 1K scale.
3. Touch the ohmmeter test leads to P2-1 (V)
and P2-2 (V). The meter should indicate
approximately 1091 Ω @ 75°F (23.9°C).
P2
Lower Oven
Appliance Manager
T1
1 2
1 2 3 4 5
1 2 3 4 5 6
