REMOVING A HALOGEN LIGHT ASSEMBLY
AND THE MEAT PROBE JACK
WARNING
1. Unplug oven or disconnect power.
2. Open the lower oven door.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.

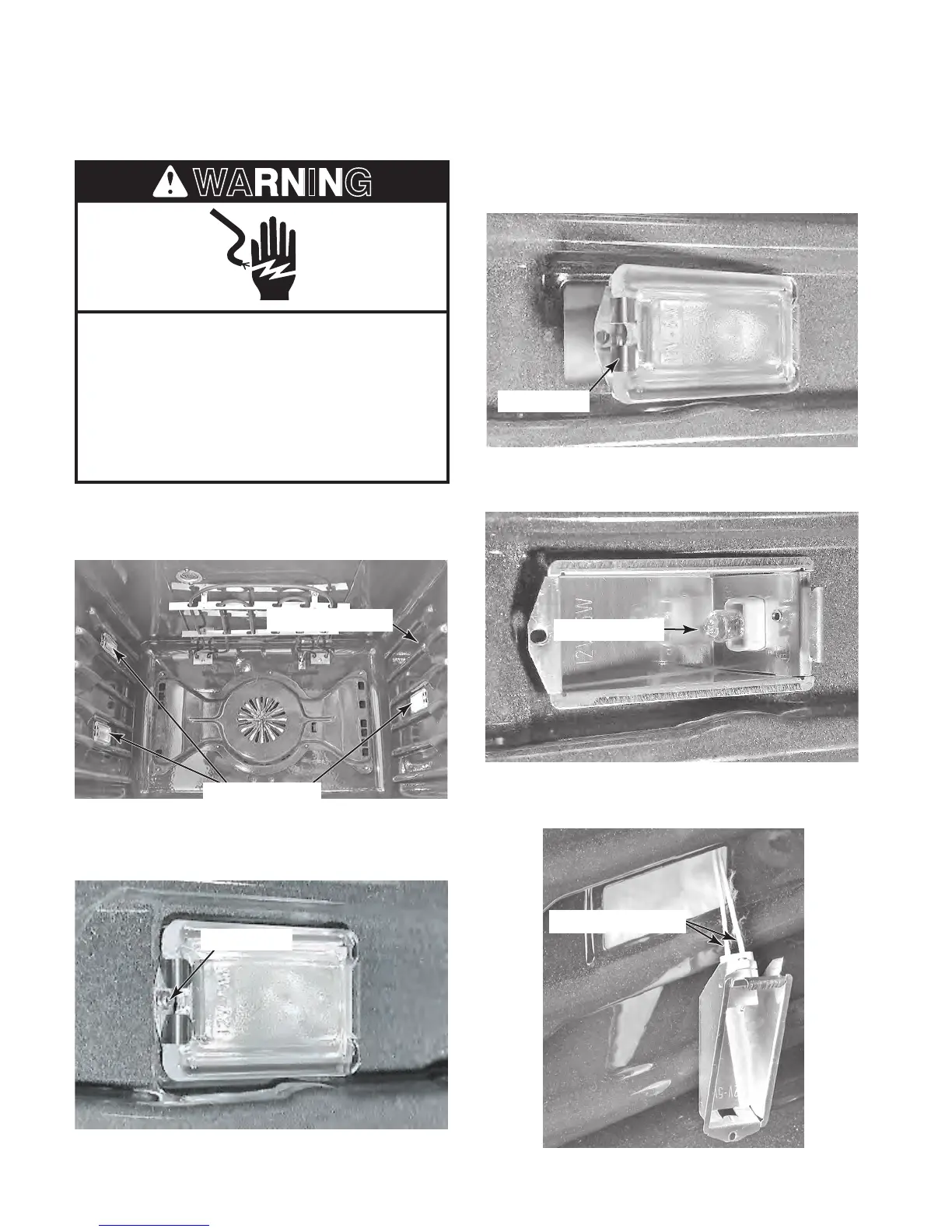

3. To remove a halogen light assembly:
a) Remove the screw from the lens.
c) Remove the halogen bulb from the
socket connector.
Meat Probe Jack
Halogen Lights
Lens Screw
Lens Clip
b) Unclip the lens from the socket and
remove the lens.
d) Cut the wires near the socket body and
splice the new socket in its place.
Halogen Bulb
Cut Socket Wires
