4-33

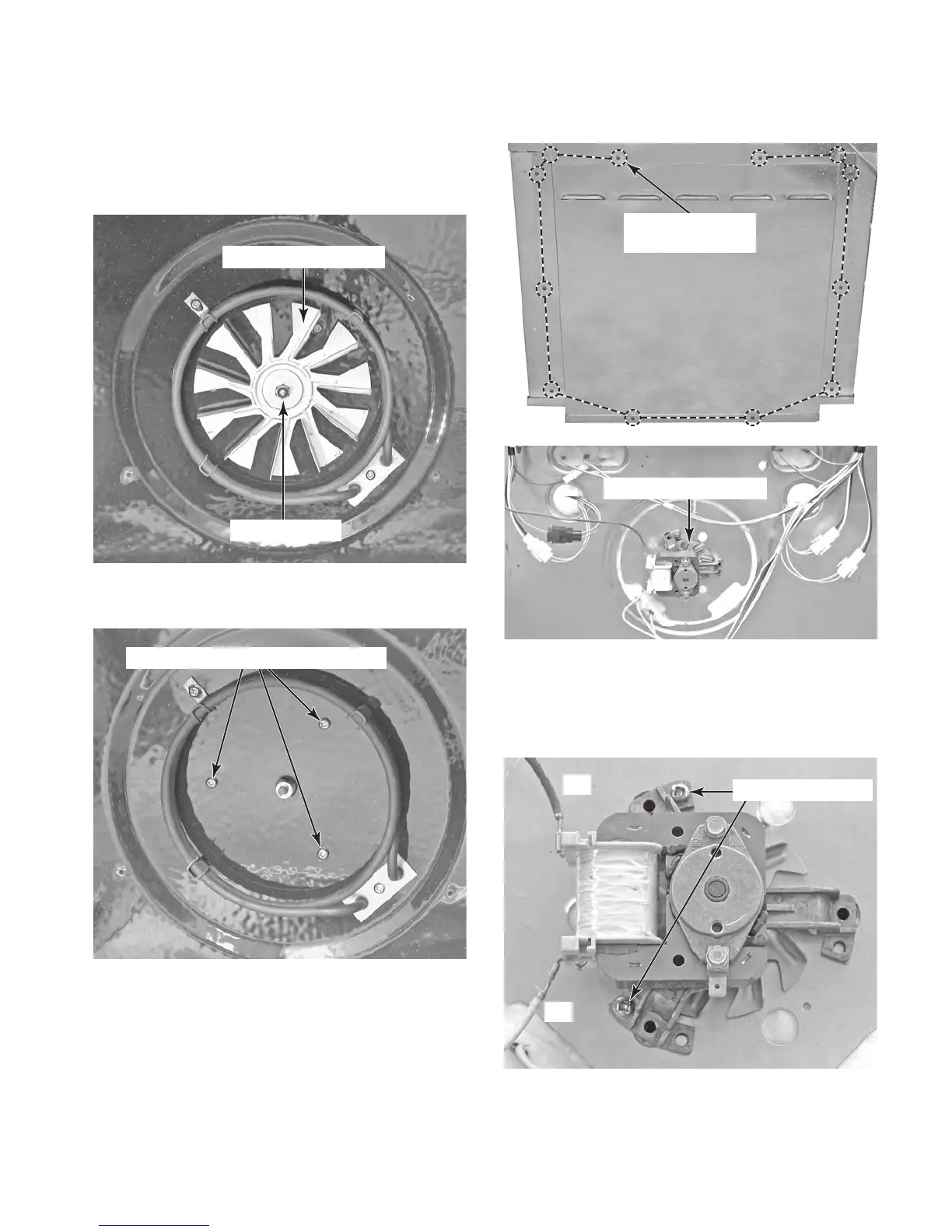

5. To remove the convection fan motor:
a) Remove the 10mm hex nut from the
convection fan blade (left-hand rotation)
and remove the blade from the motor
shaft.
Convection Fan Blade
Fan Blade Nut
b) Remove the three front screws from
the convection fan motor.
Front Convection Fan Motor Screws
d) Remove the twelve screws from the low-
er rear cover and remove the cover.
Lower Rear Cover
(12 Screws)
Convection Fan Motor
e) Disconnect the red and yellow wires from
the convection fan motor terminals.
f) Remove the two screws from the fan
motor and remove the motor.
c) Remove the oven from its mounting
location (see “Installation Information”
in Section 2) and pull it forward so that
you can access the rear covers.
RD
YL
Rear Motor Screws
To Next Page
