4-13

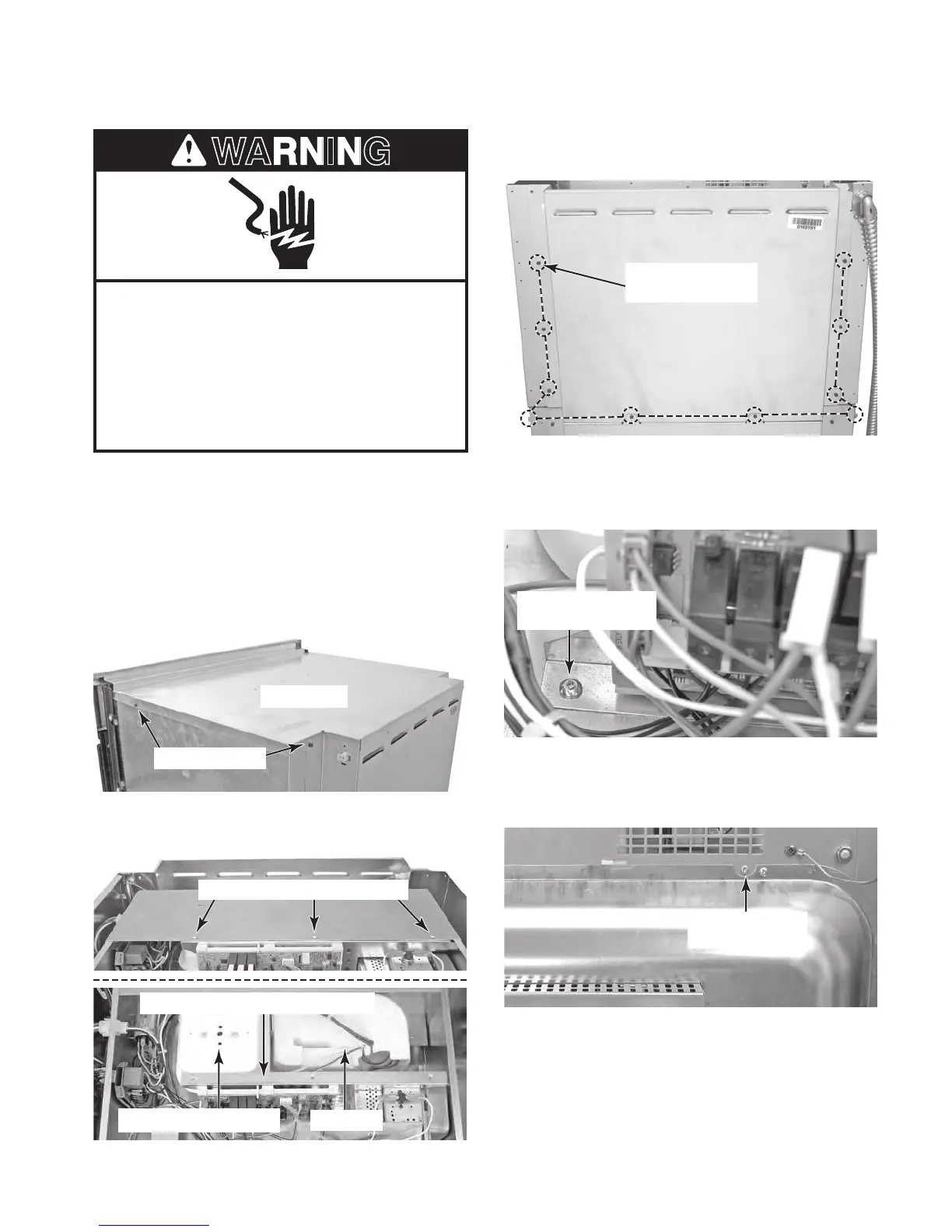

REMOVING THE MAGNETRON FAN MOTOR & THE INVERTER
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Top Cover
Screws (2 of 4)
1. Unplug oven or disconnect power.
2. Remove the oven from its mounting location
(see “Installation Information” in Section 2)
and pull it forward so that you can access
the top cover.
3. Remove the four screws from the top cover
and remove the cover.
4. Remove the eight screws from the inner
cover and remove the cover.
Inner Cover Screws (3 of 8)
Magnetron Fan Motor
Inverter
5. Remove the ten screws from the upper rear
cover of the oven and remove the cover.
6. To remove the magnetron fan motor:
a) Remove the left screw from the appli-
a
nce manager board bracket.
Upper Rear Cover
(10 Screws)
App. Man. Board
Left Bracket Screw
b) Remove the magnetron fan motor
housing screw from the rear of the
chassis.
MW Appliance Manager Bracket
Mag. Fan Motor
Housing Screw
Continued on the next page.
To Next Page
